Product Overview

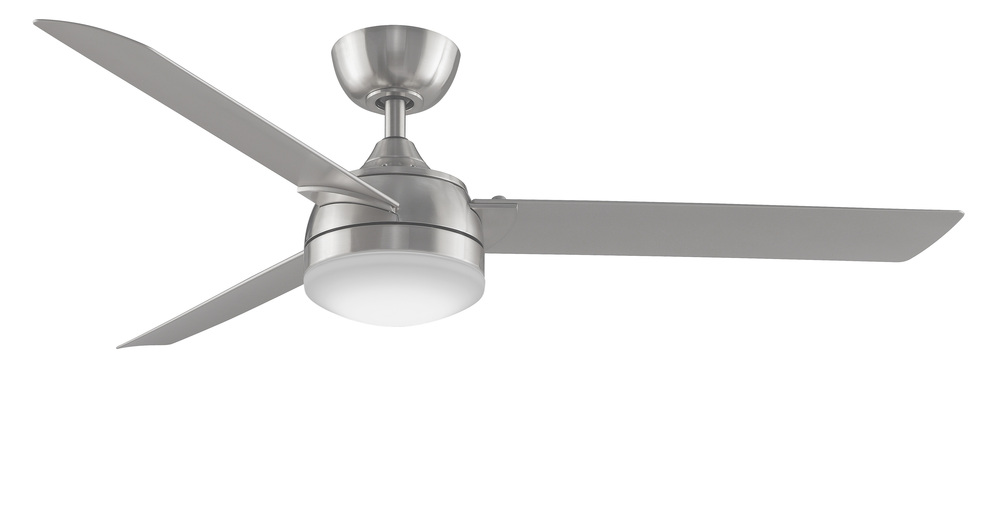

Xeno by Fanimation is a timeless piece that will brighten up any room and inevitably grab the attention of those in its presence. This fan is as easy to use as it is to look at and can be easily controlled at the touch of a button. Xeno is damp location rated for indoor or outdoor use and can operate on three forward and three reverse speeds, for multi-season airflow. *Compatible with most smart home devices (required control sold separately)

Energy Information at High Speed

Airflow:

6605 Cubic Feet per Minute

Electricity Rate:

66 Watts (excluded lights)

Airflow Efficiency:

100 Cubic Feet Per Minute Per Watt

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Nickel

Style:

Traditional

Option:

Damp Rated

LED

Voltage:

10-99

Glass Finish or Style:

Frosted

Opal

Lumens:

1101-1600

Number of Blades:

3 Blades

Location Rating:

Damp Rated

Wattage:

18w

Refinement Options

Category:

Fan-Uni

Finish:

Brushed Nickel

Option:

Damp

Family:

Xeno

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Additional Info:

3 speed AC motor with reverse switch, light controls and sleep timer features

6605 CFM on High

Limited Lifetime Motor Warranty

Set of 3 composite 56 inch Damp Rated blades with Brushed Nickel finish and 18 watt LED light kit wi

TR500 handheld remote with 23A battery included

WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

6605

Air Flow Efficiency:

100

Amperage:

0.55

Blade Finish:

Brushed Nickel

Blade Pitch:

14

Bulb Type:

18 Watt LED Module

Canopy:

6.5 Dia x 2.58 H

Diameter:

8.86

Down Rod Included:

4.5

Electricity Used:

66

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

56

Light Kit Included:

Yes

Lumens / Light Output:

1400

Material:

Composite

Motor Fan Speed:

3

Motor RPM:

197

Motor Size:

188 x 25

Motor Type:

AC

Remote Control Included:

TR500

Ship Carton Height:

13.66

Ship Carton Length:

25.12

Ship Carton Width:

13.62

Ship Weight:

29.1

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

25.66

Airflow Efficiency Low:

179

Airflow Efficiency Medium:

135

Avg Airflow Efficiency:

106

Avg CFM Energy:

4654

Avg Energy Use Watts:

44

Avg Estimated Yearly Energy Cost:

12

Avg Estimated Yearly Energy Cost on HIGH:

19

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Reversible:

No

Blade Sweep:

56

Bulb Base:

Connector Pin

Bulb CRI:

90

Bulb Wattage:

18

Canopy Diameter:

6.5 Dia

Canopy Height:

2.58 H

Cap Included:

Yes

Carton Cubic Feet:

2.7

Cartons Per Unit:

1

Case Height:

13.66

Case Length:

25.12

Case Quantity:

1

Case Weight Pounds:

29.1

Case Width:

13.62

CEC Uploaded:

Yes

Ceiling To Blade Edge:

10.2

Ceiling To Bottom:

13.43

14.33

CFM Low:

2444

CFM Medium:

4561

Compatible Accessories:

CCK8002BN, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCB1-52

Compatible Controls:

BTCR9, BTR9, CRL4WH, WFR50

Compatible Wall Controls:

CWRL4LA, CWRL4WH, WC2WH, WR501WH

Country of Origin:

China

CRI:

90

Current Draw High:

0.55

Current Draw Low:

0.25

Current Draw Medium:

0.39

Damp Rated:

Yes

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Exempt from DOE Procedure:

No

Fan Energy Star:

No

Housing Diameter:

8.86

Included Control:

TR500

Included Control Type:

Handheld

Leadwire:

80

Light Kit Energy Star:

No

Max Ceiling Slope:

27

Max Watt:

66

Maximum Slope Degree:

27

Motor Finish Method Type:

Plated

Motor Reversible:

Yes

Number of Blades:

3

Number Of Speeds:

3

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM High (VI):

197

RPM Low (II):

88

RPM Medium (IV):

123

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 Hz

Watts Low:

14

Watts Medium:

34

Watts Per Bulb:

18

3 Speed Ac Motor With Reverse Switch, Light Controls And Sleep Timer Features

6605 Cfm On High

Limited Lifetime Motor Warranty

Set Of 3 Composite 56 Inch Damp Rated Blades With Brushed Nickel Finish And 18 Watt Led Light Kit Wi

Tr500 Handheld Remote With 23a Battery Included

Wifi Or Bluetooth Compatible (required Controls Sold Separately)
