Product Overview

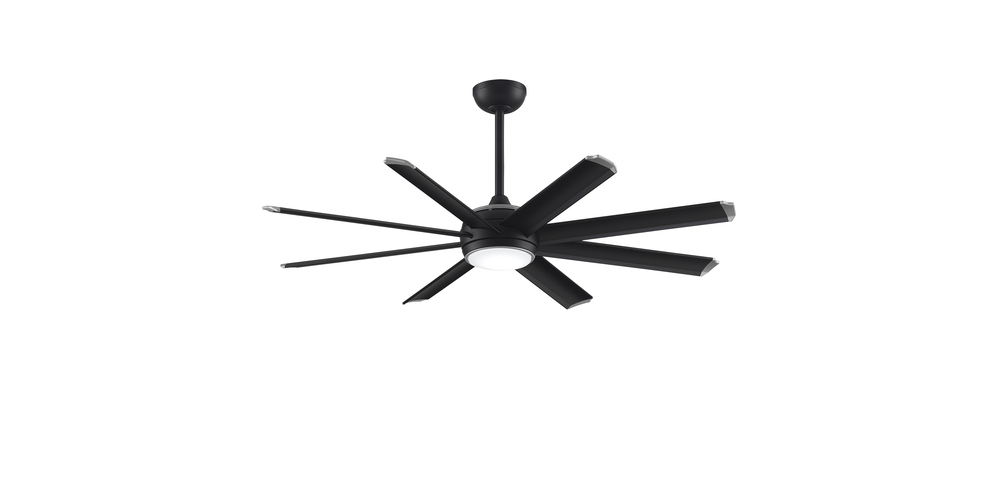

Incredible in size and function, the Fanimation Stellar reigns supreme with swift aluminum blades. Showcasing a 56, 64, or 72 inch blade span, Stellar features an integrated LED CCT Select Temperature Settings light kit and is safe for use in wet locations. Pick the combination that matches your decor, between black and silver finishes. Stellar features fanSync technology so that users may control various fan functionalities with their the Fanimation fanSync app. *Blades sold separately

Incredible in size and function, the Fanimation Stellar reigns supreme with swift aluminum blades. Showcasing a 56, 64, or 72 inch blade span, Stellar features an integrated LED light kit and is safe for use in wet locations. Pick the combination that matches your decor, between black and silver finishes. Stellar features fanSync technology so that users may control various fan functionalities with their the Fanimation fanSync app.

Energy Information at High Speed

Airflow:

11092 Cubic Feet per Minute

Electricity Rate:

32 Watts (excluded lights)

Airflow Efficiency:

296 Cubic Feet Per Minute Per Watt

Standard Information

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

Black

Style:

Traditional

Option:

Energy Star

Wet Rated

LED

Voltage:

10-99

Glass Finish or Style:

Frosted

Opal

Lumens:

1101-1600

Number of Blades:

8 Plus Blades

Location Rating:

Wet Rated

Wattage:

18w

Refinement Options

Category:

Fan-Multi

Finish:

Black

Option:

Wet

Family:

Stellar Custom

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Additional Info:

18 watt LED light kit with cover and bulb included; Set of 8 Wet Rated blades sold separately

7335 CFM on High

Compatible with most Smart home devices (required controls sold separately)

DC motor with variable speeds, light controls, sleep timer, Fresh Air, Safe Exit, Home Away features

ENERGY STAR Most Efficient 2020

TR205D handheld remote with CR2032 batteries included

Air Flow CFM:

11092

Air Flow Efficiency:

296

Amperage:

0.46

Blade Pitch:

12.6

Bulb Type:

18 Watt LED Module

Canopy:

6.3 Dia x 2.55 H

Diameter:

9.21

Down Rod Included:

6

Electricity Used:

32

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

56, 64, 72, 84

Light Kit Included:

Yes

Lumens / Light Output:

1500

Max Length:

84

Max Width:

84

Motor Fan Speed:

16

Motor RPM:

76

Motor Size:

DC153X25FS

Motor Type:

DC

Remote Control Included:

TR205D

Ship Carton Height:

10.75

Ship Carton Length:

19.49

Ship Carton Width:

11.42

Ship Weight:

21.56

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

18.92

Airflow Efficiency Low:

1072

Airflow Efficiency Medium:

514

Avg Airflow Efficiency:

465

Avg CFM Energy:

10015

Avg Energy Use Watts:

22

Avg Estimated Yearly Energy Cost:

6

Avg Estimated Yearly Energy Cost on HIGH:

10

Bulb Base:

Connector Pin

Bulb CRI:

90

Bulb Wattage:

18

Canopy Diameter:

6.3 Dia

Canopy Height:

2.55 H

Cap Included:

Yes

Carton Cubic Feet:

1.38

Cartons Per Unit:

1

Case Height:

10.75

Case Length:

19.49

Case Quantity:

1

Case Weight Pounds:

21.56

Case Width:

11.42

CEC Uploaded:

Yes

Ceiling To Blade Edge:

18.61

Ceiling To Bottom:

20.61

CFM Low:

4127

CFM Medium:

8149

Compatible Accessories:

CCK8002BLW, DR1-CPBL, DR1SS-12BLW, DR1SS-18BLW, DR1SS-24BLW, DR1SS-36BLW, DR1SS-48BLW, DR1SS-60BLW, DR1SS-72BLW, SCB1-52

Compatible Blades:

B7993-84BLW, B7993-84SLW, B7997-56BLW, B7997-56SLW, B7997-64BLW, B7997-64SLW, B7997-72BLW, B7997-72SLW

Compatible Wall Controls:

TW306

Country of Origin:

China

CRI:

90

Current Draw High:

0.58

Current Draw Low:

0.07

Current Draw Medium:

0.25

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

12

Exempt from DOE Procedure:

No

Fan Energy Star:

No

Housing Diameter:

9.21

Included Control:

TR305

Included Control Type:

Handheld

Leadwire:

80

Light Kit Energy Star:

No

Max Ceiling Slope:

27

Max Watt:

37

Maximum Slope Degree:

27

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

8

Number Of Speeds:

16

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

71

RPM Low (II):

29

RPM Medium (IV):

55

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

4

Watts Medium:

16

Watts Per Bulb:

18

Wet Rated:

Yes

18 Watt Led Cct Select Light Kit With Cover And Bulb Included; Set Of (8) Wet Rated Blades With Multiple Finish Options Available (sold Separately)

7335 Cfm On High

Compatible With Most Smart Home Devices (required Controls Sold Separately)

Dc Motor With Variable Speeds, Light Controls, Sleep Timer, Fresh Air, Safe Exit, Home Away Features

Limited Lifetime Warranty

Tr305 Handheld Remote With 23a Battery Included
