Part Number: 9X1CR / Vendor ID #: 87

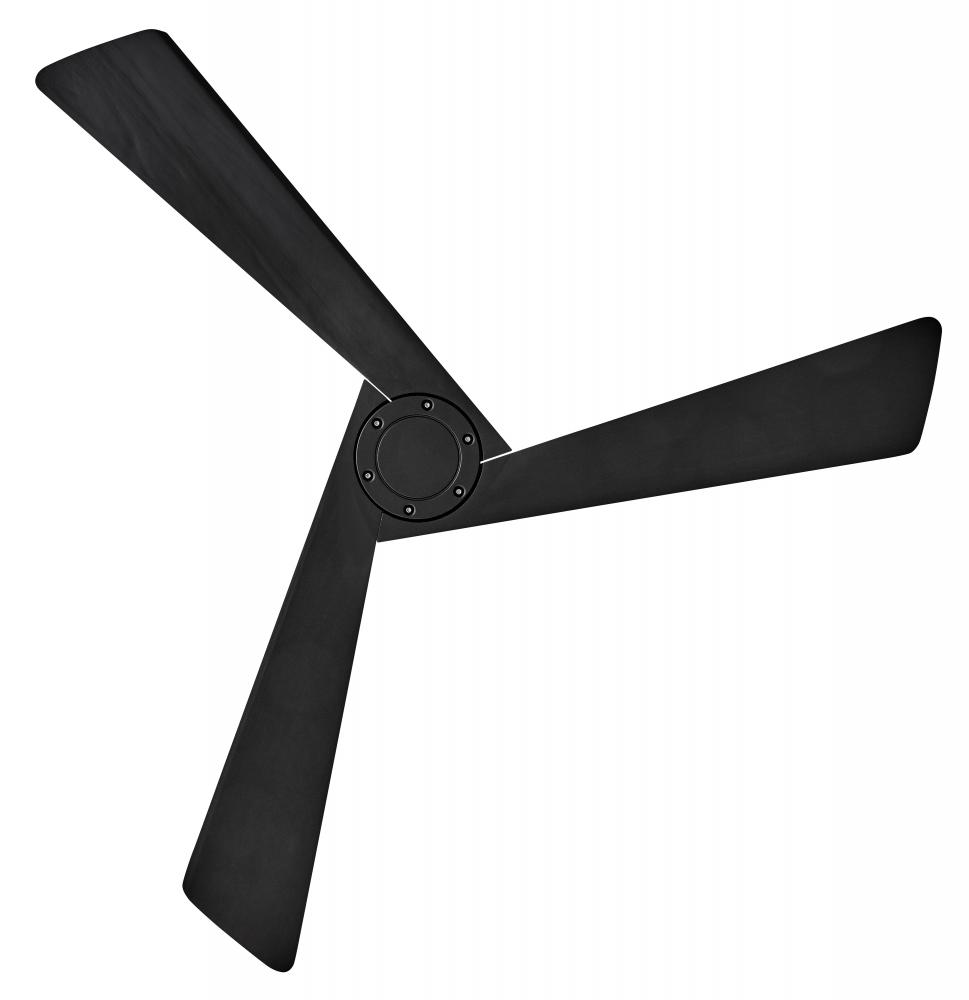

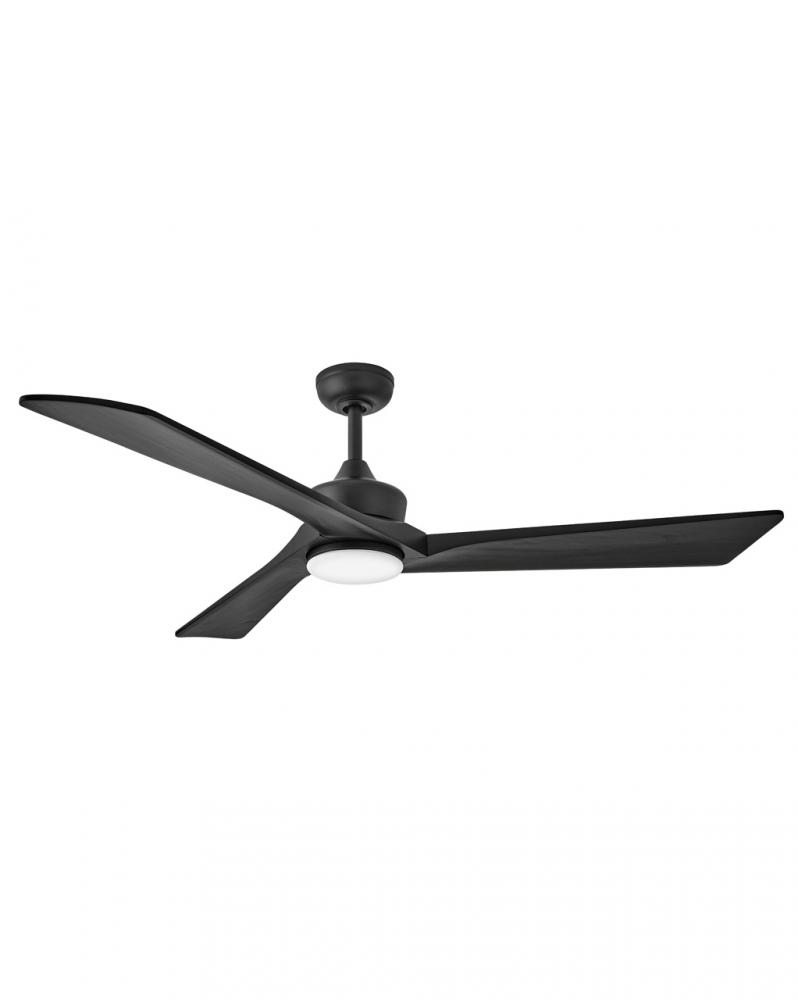

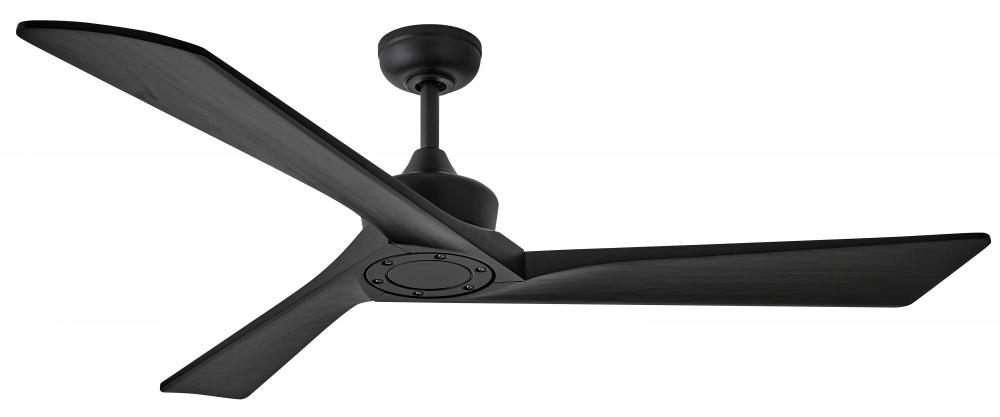

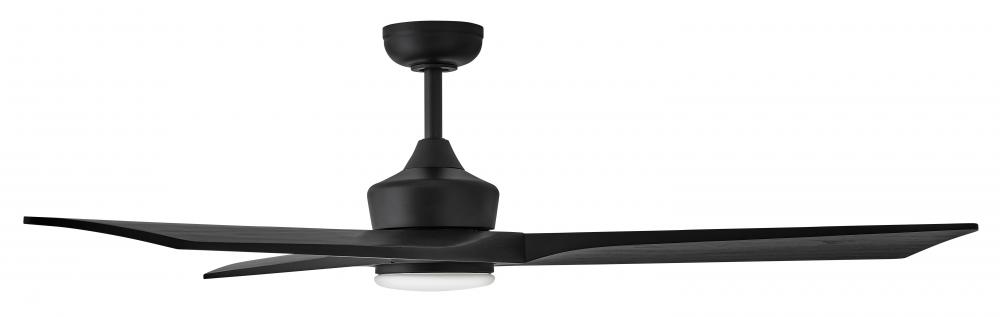

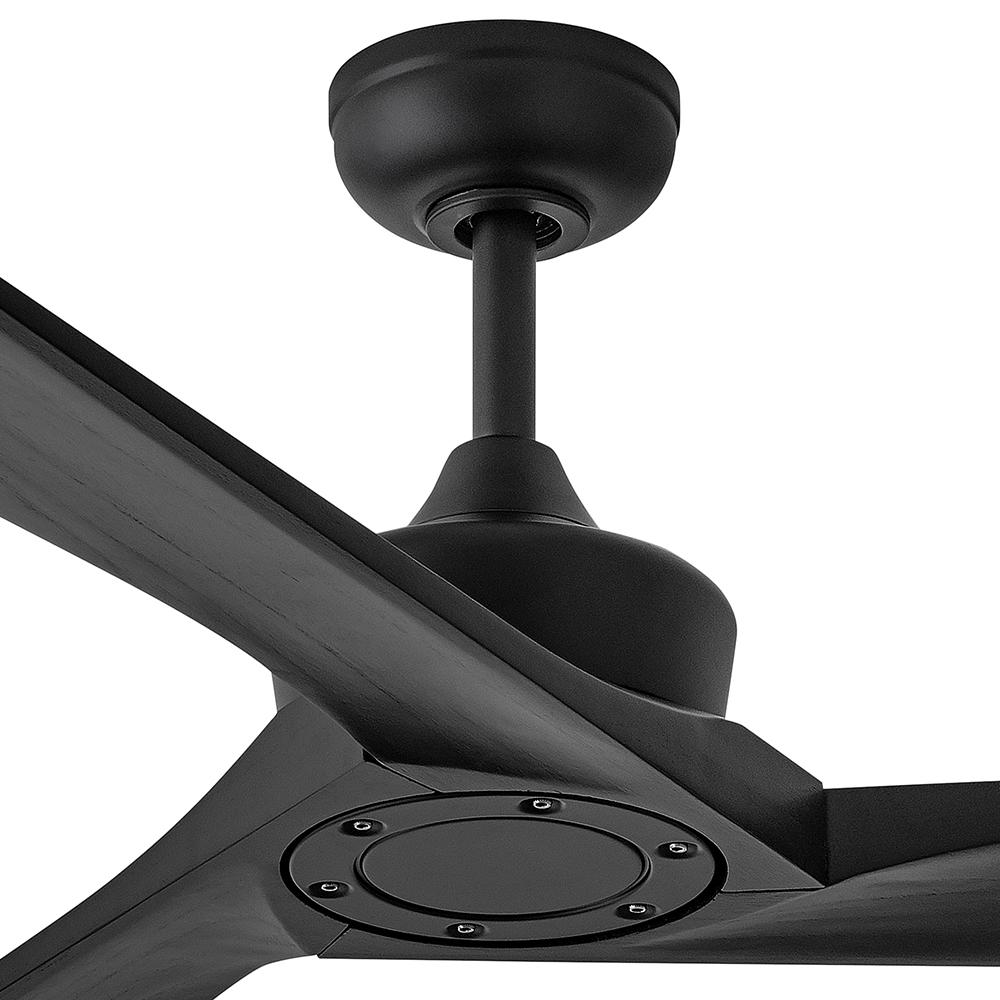

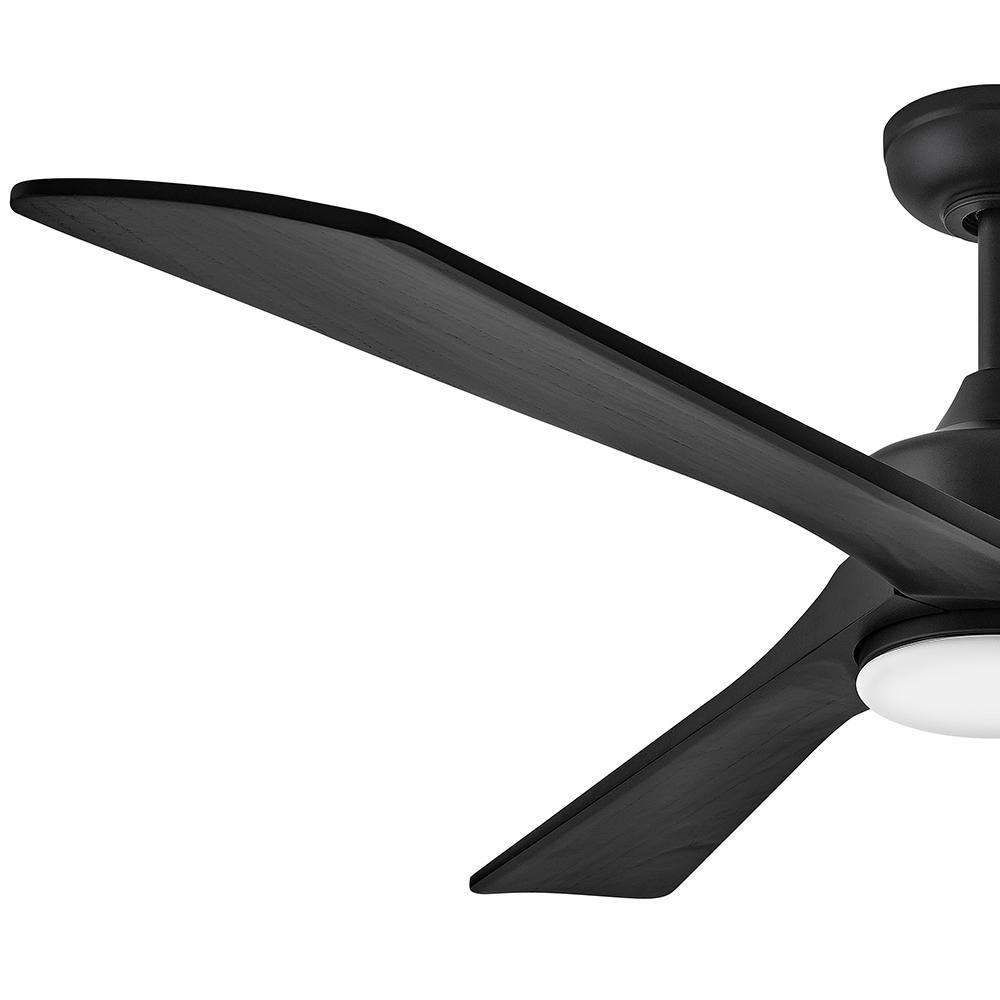

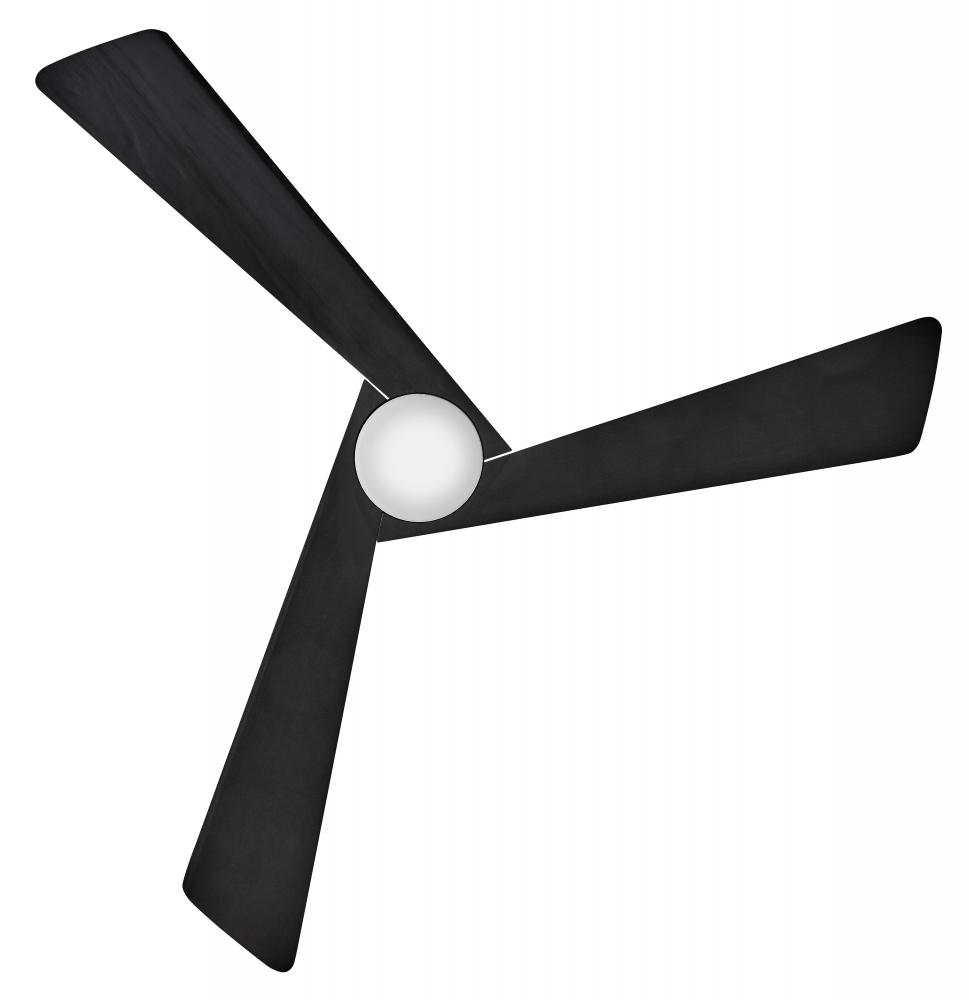

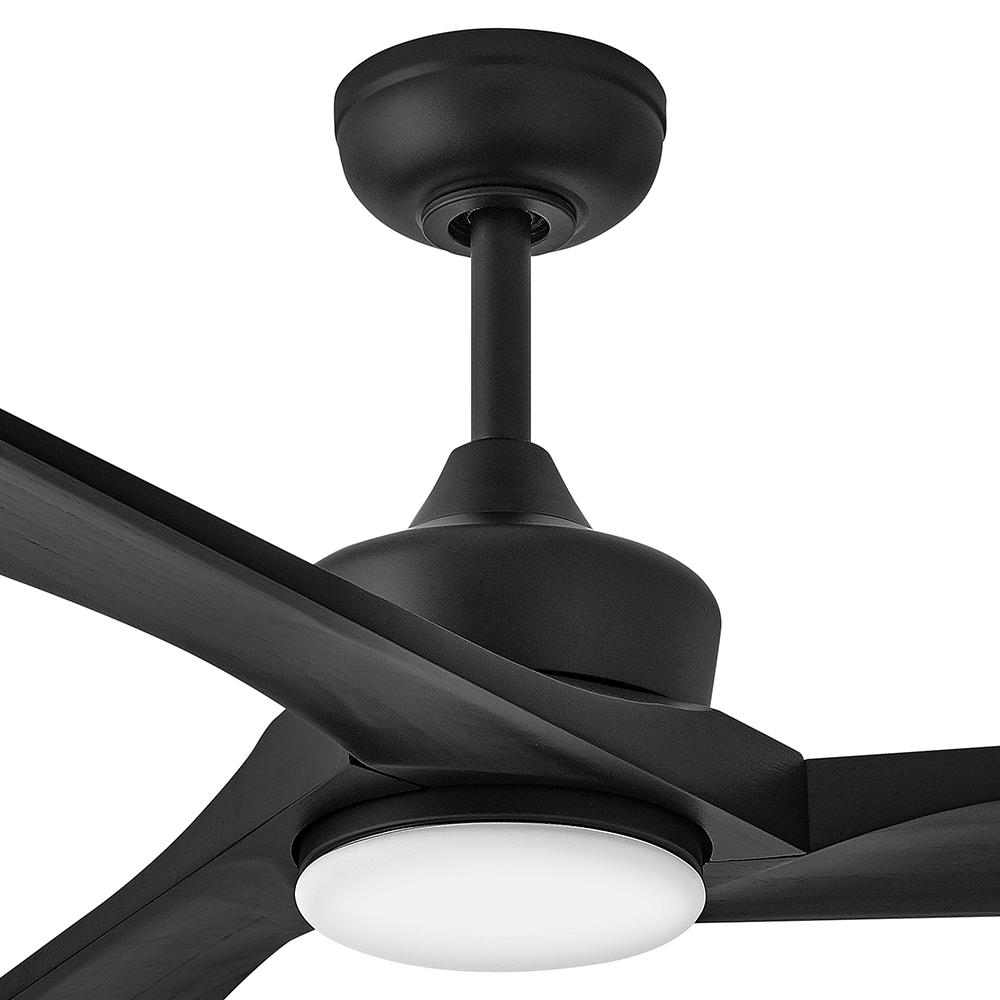

Sculpt 60" LED Smart Fan

$799.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 133 items available.

Dimensions

Height: 15.25"

Width: 60.00"

Length: 60.00"

Info & Guides

Finish: Matte Black

Blade Finish: Matte Black

Product Overview

Sculpt defines modern elegance, featuring solid wood complemented by clean etched opal glass, seamlessly adding contemporary character to any setting. Available in a variety of finish and blade combinations. Damp rated for both interior and covered outdoor spaces. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Black

Style:

Modern

Option:

Damp Rated

Refinement Options

Category:

Fan

Finish:

Matte Black

Style:

Modern

Family:

Sculpt

Glass:

Etched Opal

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow Efficiency:

7344

Amperage:

0.48

Blade Finish:

Matte Black

Blade Pitch:

Blade Span:

Blades Included:

Yes

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Bulb Hours:

50000

Bulb Type:

LED

Canopy:

6 Dia. x 2.25 D

Introduction Date:

01/01/2024

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Steel

Motor Size:

DCS-30NS

Motor Type:

Ship Carton Height:

11.42

Ship Carton Length:

Ship Carton Width:

16.4

Ship Weight:

24.43

Vendor Ship Method:

Parcel

Weight:

14.75

Airflow Avg:

4956

AMPS Avg:

0.27

Avg Energy Use:

Blade Material:

Wood

Blade Options Available:

Blade To Ceiling Height:

Blades Reversible:

Bulb CRI:

Bulb Included:

Yes

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

Taiwan

Dual Mount:

Efficiency Avg:

223

Efficiency High:

211

Energy Cost Avg:

Energy Cost High:

9.74

Energy Use High:

34.7

Fan Control:

Yes

Flush Mount Fan:

Incandescent Equivalency:

100 W

Light Kit Adaptable:

Light Source:

Integrated LED

Location Rating:

Damp Rated

Max Wattage:

16 W

Motor Fan Speed:

Number of Blades:

Operating Frequency:

Prop 65 Description:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

122

RPMS High:

185

Safety Rating:

UL Approved, C-US Approved

Single Power Switch:

Slope:

Sloped Ceiling Adaptable:

Yes

Stand By Power:

0.92

Title 24:

WIFI Control Included:

Yes

WIFI Control Optional:

Blades, controls, switches, capacitors and hardware carry a 1-year warranty

Bold silhouette with dramatic details creates a modern statement

Fan Control included, HIRO Control - 6 Speed Reversing

Fans should be installed at a minimum of 7 feet from the floor

For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.

LED components carry a 5-year limited warranty

Motor carries a lifetime warranty

Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.

This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

This item includes a light kit cover

This item may be hung on a sloped ceiling

This product uses recyclable or limited packaging materials to help reduce waste.

WiFi compatible with included fan control
