Product Overview

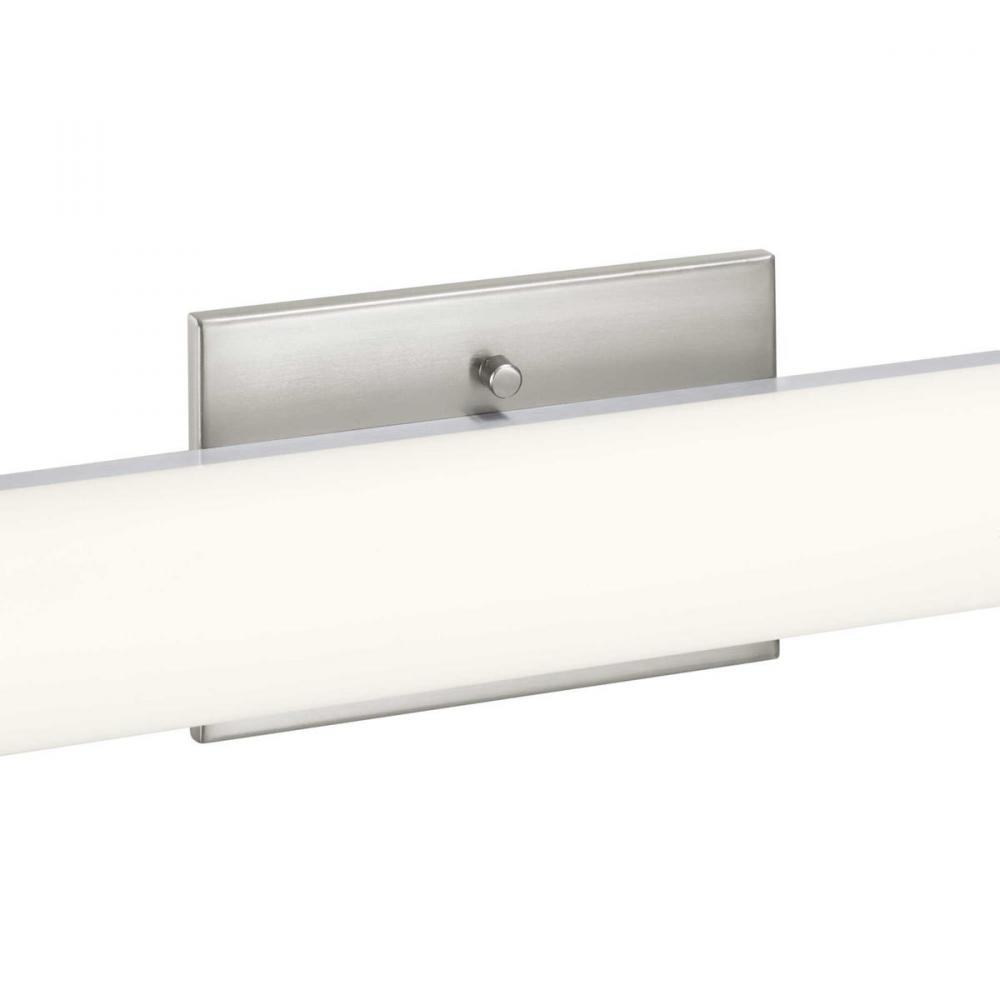

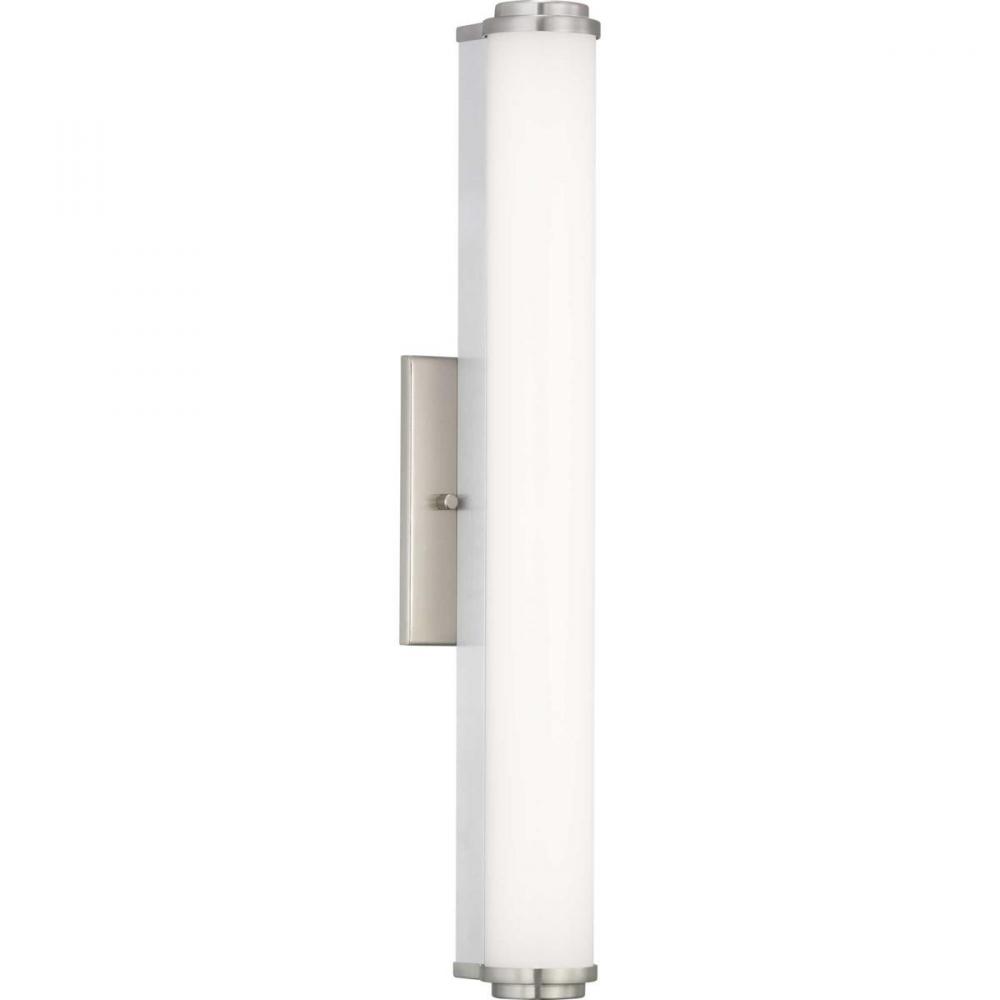

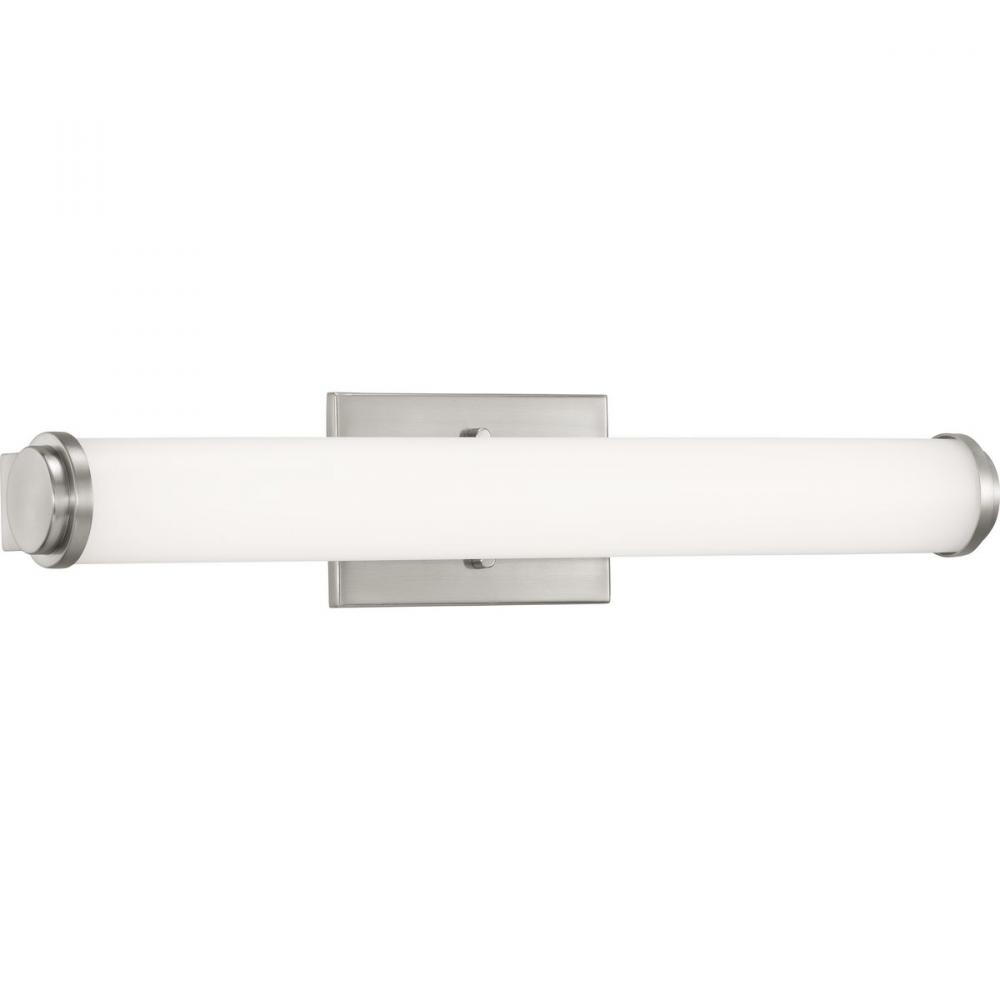

Featuring a cylindrical acrylic diffuser and a simple rectangular back plate, Phase 1.1 Collection 24in. linear bath bar accommodates residential, light commercial and multi-family applications. An integrated LED source provides uniform illumination, as well as energy and cost savings benefits. Can be installed vertically or horizontally.

Standard Information

Category:

Bathroom Fixtures

Subcategory:

Vanity Lights

Finish:

Nickel

Style:

Modern

Option:

Energy Efficient

Energy Star

Title 24

Damp Rated

LED

Title 20

Voltage:

100-120

Lumens:

450-800

Mount Type:

Flush Mount

Kelvin:

2501-3000

Location Rating:

Damp Rated

Refinement Options

Category:

Bath & Vanity

Finish:

Brushed Nickel

Style:

Modern

Option:

Damp Rated

Energy Efficient

Energy Star

Title 20

Title 24

Family:

Phase 1.1 LED

Glass:

White

Voltage:

120

Number of Bulbs:

1 Bulbs

Backplate Height:

4.75

Backplate Width:

7.06

Bulb Hours:

50000

Bulb Type:

Integrated LED

Height To Center of Outlet:

2.38

Introduction Date:

01/01/2019

Kelvin:

3000

Length:

24.00

Lumens / Light Output:

1675

Material:

Aluminum

Ship Carton Height:

5.62

Ship Carton Length:

26.75

Ship Carton Width:

6.62

Ship Weight:

1.98

Special Features:

Ideal for a bathroom;Perfect for modern style settings;Beautiful brushed nickel finish;Crisp white acrylic shade;Fixture can mount horizontal and vertical;Includes 1 integrated LED (22 W), 1675 lumens, 3000 K, 90 CRI, dimmable;Measures 24-inch width by 4.

Vendor Ship Method:

Non UPS Shippable False

Warranty:

5-year Limited

Weight:

2.69

Wire Included:

6 in

Americans with Disabilities Act:

Yes

Backplate Depth:

0.38

Bulb Base:

Integrated

Bulb CRI:

90 CRI

Bulb Included:

Yes

Can be Mounted Up or Down:

Yes

Canopy Shape:

Rectangular

Certified Listed Location:

Damp Location Listed

Construction Material Main Part:

Construction

Convertible Fixture Includes Both Mounts:

FALSE

Country of Origin:

CN

Dark Sky:

No

Design Series:

No

Dimming Compatability:

Lutron_Nova T NTELV-300;Lutron_Diva DVELV-300P;Lutron_Caseta;Leviton_Trimatron 6681;Lutron_Ariadni AYCL-153P;Lutron_Maestro MAELV-600;Leviton_AWRMG-EAW

Dimming Protocol:

Triac/Forward Phase;ELV/Reverse Phase

Energy Efficient:

Yes

Energy Star:

Yes

Finish Type:

Plated

Frequency Rating:

60 Hz

Glass Depth:

2.25

Glass Height:

2.625

Glass Shape:

Diffuser

Glass Width:

23.125

JA8:

2016

Lamp Type Actual:

LED

Lamp Type Basic:

Solid State

Lamp Wattage:

22

Lens Shade Material:

Acrylic

Lumens per Watt:

76.00

Mount Location:

Wall

MTO:

No

Operating Temperature Celcius Max:

30°C

Prop 65:

View

Prop 65 Description:

View

Room Type:

Bathroom

Safety Rating:

cETLus

Starting Temperature Minimum:

-30 °C

Sub Brand:

Progress LED

Title 20:

Yes

Title 24:

Yes

Weight of Fixture Exceeds NEC Limits:

No
