Part Number: K82Q / Vendor ID #: 90

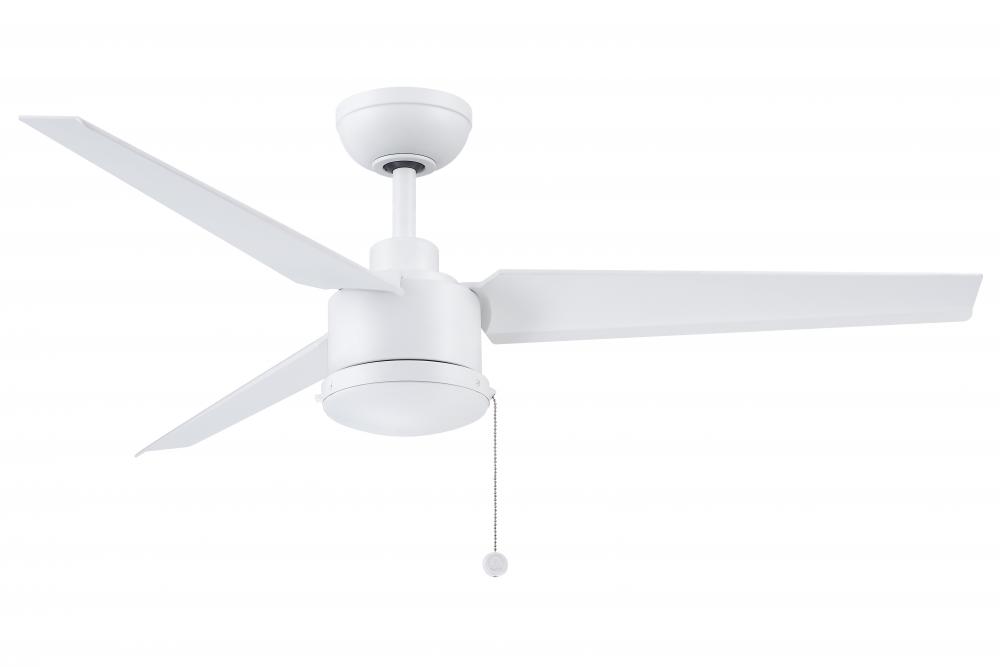

PC/DC - 52 Inch - MW with MW Blades

$300.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer availability unknown.

Dimensions

Height: 14.91"

Width: 52.00"

Length: 52.00"

Info & Guides

Product Overview

The Fanimation PC/DC Ceiling Fan is one of the newest inspirations, featuring Fanimation's first Pull Chain Ceiling Fan with a DC motor. The PC/DC is an indoor/outdoor 52 inch Ceiling Fan that offers Black, Matte White and Silver wet rated finishes with blades included, as well as an optional LED light kit. The PC/DC Fanimation Ceiling Fan has a look of sophistication and smooth structure, that can be displayed inside or outside the home. *Wet rated for Indoor/Outdoor use *Reverse airflow for multi-season use *Pull Chain motor control

Energy Information at High Speed

Airflow:

5664 Cubic Feet per Minute

Electricity Rate:

28 Watts (excluded lights)

Airflow Efficiency:

201 Cubic Feet Per Minute Per Watt

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White

Style:

Traditional

Option:

Wet Rated

Voltage:

10-99

Number of Blades:

3 Blades

Location Rating:

Wet Rated

Wattage:

Refinement Options

Category:

Fan-Uni

Finish:

Matte White

Option:

Wet

Family:

Pc/dc

Voltage:

120 V

Additional Info:

16 speed DC motor with reverse switch, fan and light control

CHINA

Energy Star Most Efficient 2022

Limited Lifetime Motor Warranty

Pull Chain Control

Set of (3) 52 inch wet rated blades included with optional 18 watt LED light kit (sold separately)

Air Flow CFM:

5664

Air Flow Efficiency:

201

Amperage:

0.44

Blade Finish:

Matte White

Blade Pitch:

Blade Span:

Canopy:

6.3 Dia x 2.56 H

Diameter:

7.52

Down Rod Included:

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

Light Kit Included:

Material:

Composite

Motor Fan Speed:

Motor RPM:

171

Motor Size:

100 X 30

Motor Type:

Ship Carton Height:

12.2

Ship Carton Length:

27.95

Ship Carton Width:

9.84

Ship Weight:

18.96

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

13.01

Airflow Efficiency Low:

902

Airflow Efficiency Medium:

449

Avg Airflow Efficiency:

202

Avg CFM Energy:

3813

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Pitch Degrees:

Blade Reversible:

Blade Sweep:

Canopy Diameter:

6.3 Dia

Canopy Height:

2.56 H

Cap Included:

Carton Cubic Feet:

1.94

Case Height:

12.2

Case Length:

27.95

Case Quantity:

Case Weight Pounds:

18.96

Case Width:

9.84

CEC Uploaded:

Yes

Ceiling To Blade Edge:

10.24

Ceiling To Bottom:

14.91

CFM Low:

1641

CFM Medium:

3693

Compatible Accessories:

CCK8002MWW, DR1-CPMW, DR1SS-12MWW, DR1SS-18MWW, DR1SS-24MWW, DR1SS-36MWW, DR1SS-48MWW, DR1SS-60MWW, DR1SS-72MWW, SCB1-52

Country of Origin:

China

Current Draw High:

0.44

Current Draw Low:

0.06

Current Draw Medium:

0.16

DOE Classification:

LSSD

DOEFTC Uploaded:

Yes

Downrod Length:

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

7.52

Included Control Type:

Pull Chain

Leadwire:

Light Kit Energy Star:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method:

Painted

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Switch Housing

RPM High (VI):

171

RPM Low (II):

RPM Medium (IV):

114

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Wet Rated:

Yes

3 Speed Dc Motor With Reverse Switch, Fan And Light Control

Energy Star Most Efficient 2022

Limited Lifetime Motor Warranty

Pull Chain Control

Set Of (3) 52 Inch Wet Rated Blades Included With Optional 18 Watt Led Light Kit (sold Separately)
