Product Overview

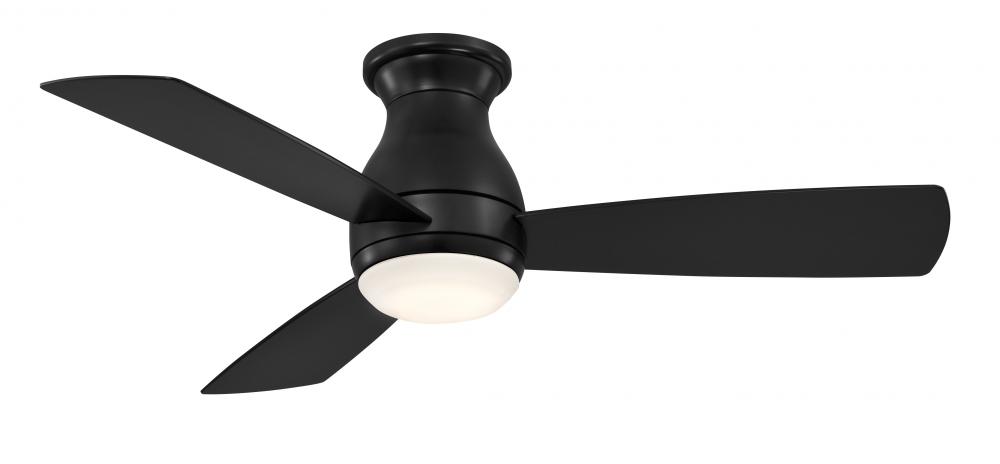

Strong, sturdy, and ready for anything. Hugh is wet rated and offers its users powerful airflow for any indoor or outdoor space in both 44" and 52" inches. Made from metal for durability, Hugh brings cooling with 3 speeds for preference. Integrated into the fan body is a dimmable LED light kit for additional luminance in dark areas. Hugh includes a handheld remote and a light cap with purchase. *Wet Rated for indoor or outdoor use *Reversible airflow for multi-season use

Strong, sturdy, and ready for anything. Hugh is wet rated and offers its users powerful airflow for any indoor or outdoor space in both 44" and 52" inches. Made from metal for durability, Hugh brings cooling with 3 speeds for preference. Integrated into the fan body is a dimmable LED light kit for additional luminance in dark areas. Hugh includes a wall control and a light cap with purchase. *Wet Rated for indoor or outdoor use *Reversible airflow for multi-season use

Energy Information at High Speed

Airflow:

3785 Cubic Feet per Minute

Electricity Rate:

50 Watts (excluded lights)

Airflow Efficiency:

76 Cubic Feet Per Minute Per Watt

Standard Information

Category:

Exterior

Fans

Subcategory:

Exterior Fans

Outdoor Fans

Finish:

Black

Style:

Traditional

Option:

Wet Rated

LED

Voltage:

10-99

Glass Finish or Style:

Frosted

Opal

Lumens:

1101-1600

Number of Blades:

3 Blades

Location Rating:

Wet Rated

Wattage:

18w

Refinement Options

Category:

Fan-Uni

Finish:

Black

Option:

Wet

Family:

Hugh 44

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Additional Info:

3 speed AC motor with reverse switch

3785 CFM on High

Limited Lifetime Warranty

Set of (3) 44 or 52 inch Wet Rated blades and 18 watt LED light kit with cover and bulbs included

TR500 handheld remote with 23A battery included

WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

3785

Air Flow Efficiency:

76

Amperage:

0.42

Blade Finish:

Black

Blade Pitch:

12

Bulb Type:

18 Watt LED Module

Canopy:

6.77 Dia

Diameter:

7.85

Electricity Used:

50

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

44

Light Kit Included:

Yes

Lumens / Light Output:

1400

Material:

Composite

Motor Fan Speed:

3

Motor RPM:

199

Motor Size:

153 X 12

Motor Type:

AC

Remote Control Included:

TR500

Ship Carton Height:

10.55

Ship Carton Length:

25.2

Ship Carton Width:

9.65

Ship Weight:

16.05

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

13.89

Airflow Efficiency Low:

115

Airflow Efficiency Medium:

91

Avg Airflow Efficiency:

79

Avg CFM Energy:

2653

Avg Energy Use Watts:

34

Avg Estimated Yearly Energy Cost:

9

Avg Estimated Yearly Energy Cost on HIGH:

14

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Reversible:

No

Blade Sweep:

44

Bulb Base:

Connector Pin

Bulb CRI:

90

Bulb Wattage:

18

Canopy Diameter:

6.77 Dia

Cap Included:

Yes

Carton Cubic Feet:

1.48

Cartons Per Unit:

1

Case Height:

10.55

Case Length:

25.2

Case Quantity:

1

Case Weight Pounds:

16.05

Case Width:

9.65

CEC Uploaded:

Yes

Ceiling To Blade Edge:

9.36

Ceiling To Bottom:

11.35

11.74

CFM Low:

1768

CFM Medium:

3043

Compatible Controls:

BTCR9, BTR9, CRL4WH, WFR50

Compatible Wall Controls:

CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH

Country of Origin:

China

CRI:

90

Current Draw High:

0.42

Current Draw Low:

0.23

Current Draw Medium:

0.34

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Exempt from DOE Procedure:

No

Fan Energy Star:

No

Housing Diameter:

7.85

Included Control:

TR500

Included Control Type:

Handheld

Leadwire:

11

Light Kit Energy Star:

No

Max Watt:

50

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

3

Number Of Speeds:

3

Regulated Product:

Yes

Reverse Switch Location:

Switch Housing

RPM High (VI):

199

RPM Low (II):

98

RPM Medium (IV):

154

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

15

Watts Medium:

33

Watts Per Bulb:

18

Wet Rated:

Yes

3 Speed Ac Motor With Reverse Switch

3785 Cfm On High

Limited Lifetime Warranty

Set Of (3) 44 Or 52 Inch Wet Rated Blades And 18 Watt Led Light Kit With Cover And Bulbs Included

Tr500 Handheld Remote With 23a Battery Included

Wifi Or Bluetooth Compatible (required Controls Sold Separately)
