Part Number: AM7R5 / Vendor ID #: 149
Everlume Collection 18" Edgelit Surface Mount
$168.90
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
  • Manufacturer may be Out Of Stock.

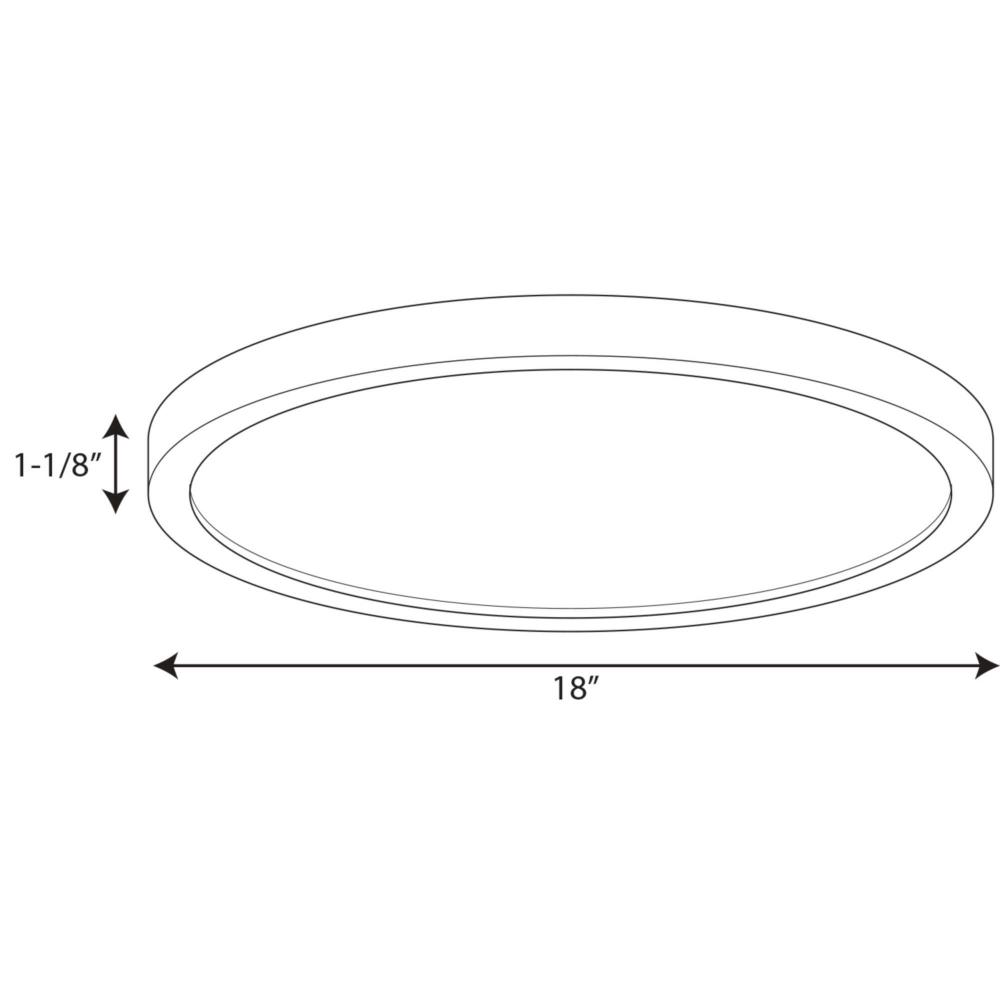

Dimensions
Height: 1.13"
Width: 18.00"
Length: 18.00"
Info & Guides
Included Items
Product Overview
The P810018 Edgelit Flush Mount delivers a solution for both residential and commercial markets. The Edgelit technology provides a bright and evenly illuminated surface in a very slim profile. The integrated LED power supply does not protrude into the junction box, allowing for compatibility to 4" octagonal, 4" round shallow and 4" round PVC junction boxes. This surface mounted luminaire measures 18" in diameter with an overall height of 1".In addition, the P810018 is wet location rated, Title 24 – JA8 – 2016 listed, ENERGY STAR listed and is a cost effective solution for fire rated applications (when installed onto a fire rated junction box). The P810018 luminaire combines modern aesthetic, new technology, performance, cost and safety benefits.
 Standard Information
Category:
Exterior
Flush Mounts
Subcategory:
Exterior Flush mounts
Outdoor Flush Mounts
Finish:
White
Style:
Transitional
Option:
Energy Efficient
Energy Star
Title 24
Wet Rated
LED
Title 20
Voltage:
100-120
Lumens:
450-800
Mount Type:
Flush Mount
Kelvin:
2501-3000
Location Rating:
Wet Rated
Refinement Options
Category:
Close-to-Ceiling
Finish:
White
Style:
Modern;Transitional
Option:
Energy Efficient
Energy Star
Title 20
Title 24
Wet Rated
Family:
Everlume
Glass:
White
Voltage:
120
Number of Bulbs:
1 Bulbs
Bulb Hours:
50000
Bulb Type:
Integrated LED
Introduction Date:
01/01/2019
Kelvin:
3000
Length:
18.00
Lumens / Light Output:
2175
Material:
Aluminum/Plastic
Ship Carton Height:
18.00
Ship Carton Length:
18.12
Ship Carton Width:
1.50
Ship Weight:
7.03
Special Features:
Simple installation to steel mounting plate;Light weight polycarbonate luminaire construction;PMMA diffuser controls glare and provides an evenly illuminated surface;2175 lumens (delivered), 90CRI, 3000K;Integrated DC LED power supply capable of flicker-fr
Vendor Ship Method:
Non UPS Shippable False
Warranty:
5-year Limited
Weight:
6.45
Wire Included:
6 in
Americans with Disabilities Act:
No
Bulb Base:
Integrated
Bulb CRI:
90 CRI
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Certified Listed Location:
Wet Location Listed
Construction Material Main Part:
Construction
Convertible Fixture Includes Both Mounts:
FALSE
Country of Origin:
CN
Dark Sky:
No
Design Series:
No
Dimming Compatability:
Lutron_Nova T NTELV-300;Lutron_Diva DVELV-300P;Lutron_Diva DVCL-253P;Lutron_Caseta;IDevices_IDEV0009;Leviton_Trimatron 6681;Leviton_SureSlide 6672;Lutron_Ariadni AYCL-153P;Lutron_Toggler TGCL-153PH;Lutron_NTLV-600;Lutron_Maestro MAELV-600;Leviton_AWRMG-EAW
Dimming Protocol:
Triac/Forward Phase;ELV/Reverse Phase
Energy Efficient:
Yes
Energy Star:
Yes
Finish Type:
Painted
Frequency Rating:
60 Hz
Glass Shape:
Round
Grounded Convenience Outlet included:
No
JA8:
2016
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
23
Lens Shade Material:
Polycarbonate
Lumens per Watt:
94.00
Mount Location:
Flush-Mount
MTO:
No
Operating Temperature Celcius Max:
30°C
Prop 65:
View
Prop 65 Description:
View
Room Type:
Closets;Pantry;Bedroom;Hall & Foyer;Kitchen
Safety Rating:
cCSAus
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
Yes
Title 24:
Yes
Weight of Fixture Exceeds NEC Limits:
No
