Part Number: AETJ6 / Vendor ID #: 38

Clarity 56 LED - Brushed Steel

$543.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer availability unknown.

Dimensions

Width: 56.00"

Info & Guides

Click Here to View Instruction Sheet

Included Items

Bulbs: (1) x 20 Watt LED - Array

Finish: Brushed Steel

Blade Finish: Silver

Product Overview

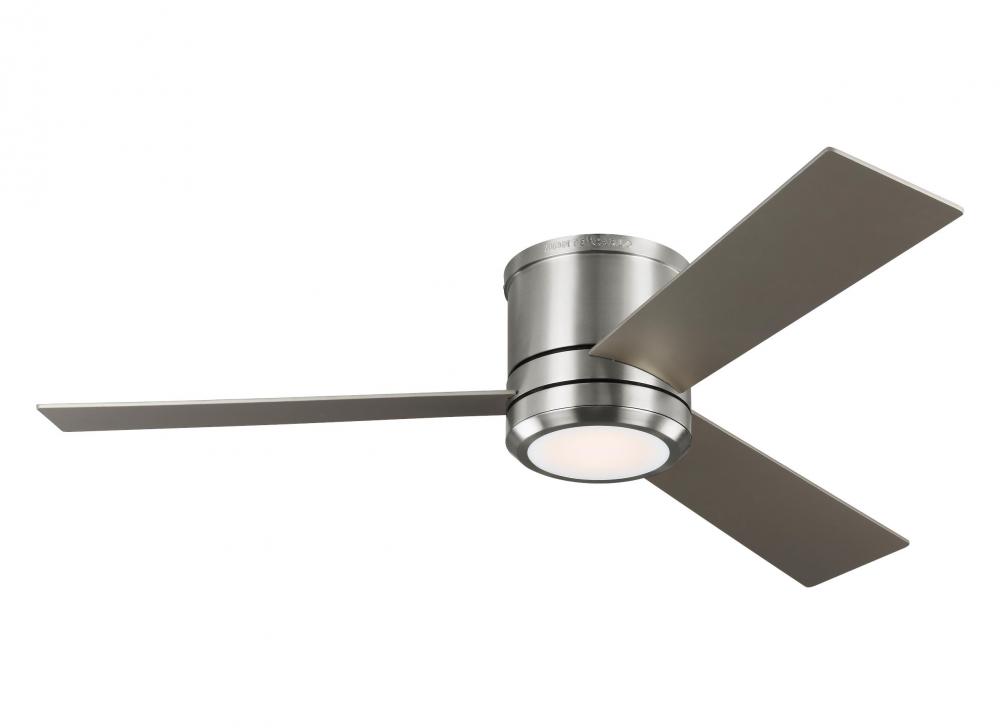

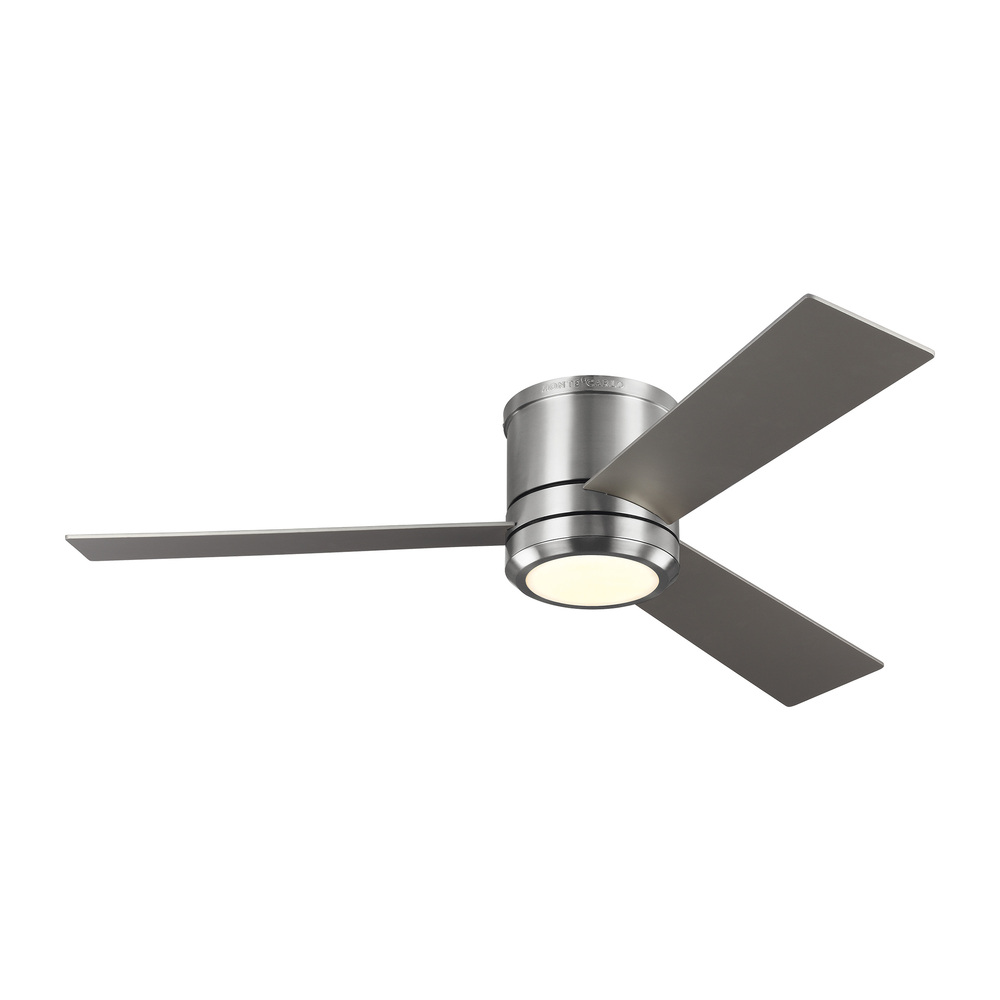

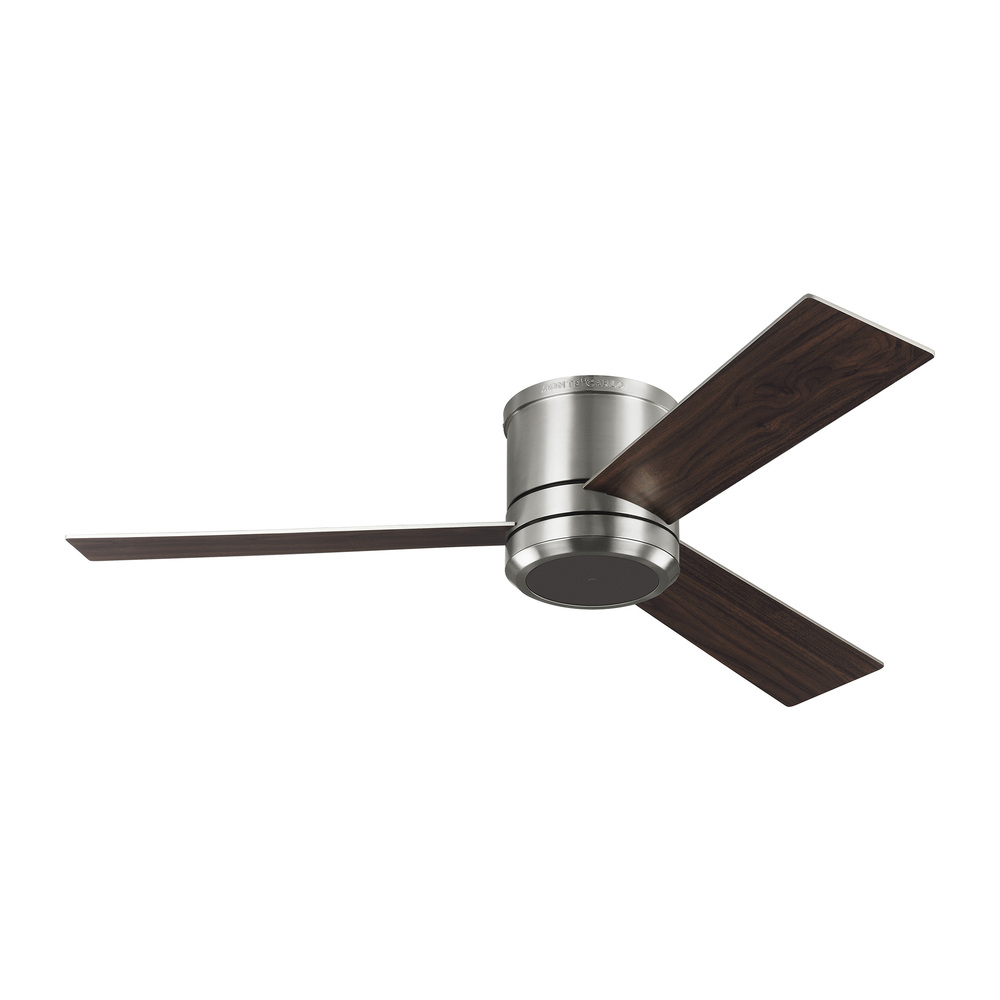

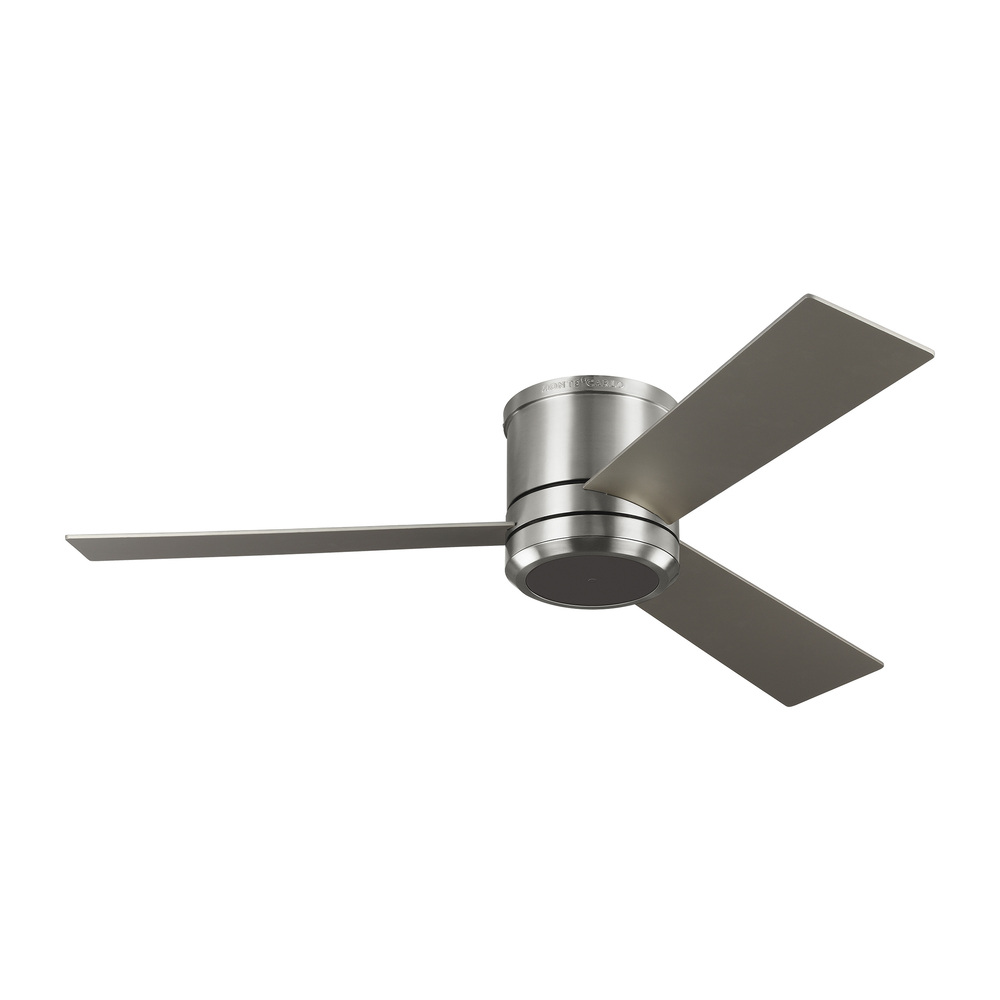

The Clarity 56 LED in Brushed Steel features a 172.0 X 20.0 4 speed motor with a Twelve degree blade pitch. The Clarity 56 ceiling is a larger and more powerful version of the popular Clarity 52 fan. The Clarity 56 has a sleek, three-blade design that hugs the ceiling, making it ideal for rooms with low ceilings. It is offered in three finish combinations to suite virtually any decor requirement. Damp-rated, the Clarity 56 also comes with a four-speed wall control with LED dimmer.

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Steel

Style:

Transitional

Option:

Title 24

Dry Rated

Voltage:

100-120

Lumens:

801-1100

Number of Blades:

3 Blades

Kelvin:

2501-3000

Wattage:

20w

Refinement Options

Category:

Ceiling Fan

Finish:

Brushed Steel

Style:

Transitional

Option:

Dry Rated

Title 24

Family:

Clarity 56

Voltage:

120

Number of Bulbs:

1 Bulbs

Blade Finish:

Silver

Blade Pitch:

Blade Span:

Bulb Type:

LED - Array

Canopy:

D:8.6

Introduction Date:

01/01/2016

Kelvin:

2700

Keyword(s):

Bedroom, Family Room, Office

Light Kit Included:

Yes

Lumens / Light Output:

950

Motor Size:

172 X 17 mm

Motor Type:

Order Minimum:

Remote Control Included:

Ship Carton Height:

10.9

Ship Carton Length:

Ship Carton Width:

11.7

Ship Weight:

23.85

Sold By:

Vendor Ship Method:

Parcel

Weight:

Blade To Ceiling Height:

7.6

Bulb Base:

19 - Integrated

Bulb CRI:

Bulb Dimming Range Max:

100

Bulb Dimming Range Min:

Bulb Included:

Yes

Bulb Light Source Name:

LED

Bulb Rated Life:

50000

Bulb Volts:

120

Bulb Watts Consumed:

Bulb Watts Rated:

Canopy Diameter:

8.6

Canopy Style:

Hugger

Capacitor Value:

4.5uF/350V/105C

CFM High:

4382

CFM Low:

907

CFM Watt High:

CFM Watt LOW:

113

Country of Origin:

China

Dry Rated:

Yes

Energy Star:

Fan Style:

Contemporary

Freight Class:

110

Lamping:

1 Array Integrated 20 Watt Light Bulb

Max Watt:

Maximum Blade To Ceiling Height:

7.6

Minimum Blade To Ceiling Height:

6.2

Minimum Ceiling Height Required:

7.63

Number of Blades:

Overall Height:

9.2

Qty Fabric Glass Shades:

Remote Control Type:

Wall Mount Control, 4-Speed, Dimmer and Manual Reverse

Safety Rating:

cETL Approved

Shade Diameter:

Shade Finish:

Frosted Acrylic

Shade Shape:

Round

Standard Efficiency:

Standard Energy Use Wave:

Standard Estimated Yearly Energy Cost:

Standard Weighted Average Airflow:

2753

Title 24:

Yes

TSCA Title VI Compliant:

Yes

Watts High:

Watts Low:

Available Finishes: Brushed Steel, Matte White and Brushed Steel w/ LGWO Blades

Dry Rated

Features five sleek and slender carved wood blades which provide powerful air circulation

Fixture is supplied with integrated LED light source

From the brand formerly known as Monte Carlo

Frosted acrylic shade
