Product Overview

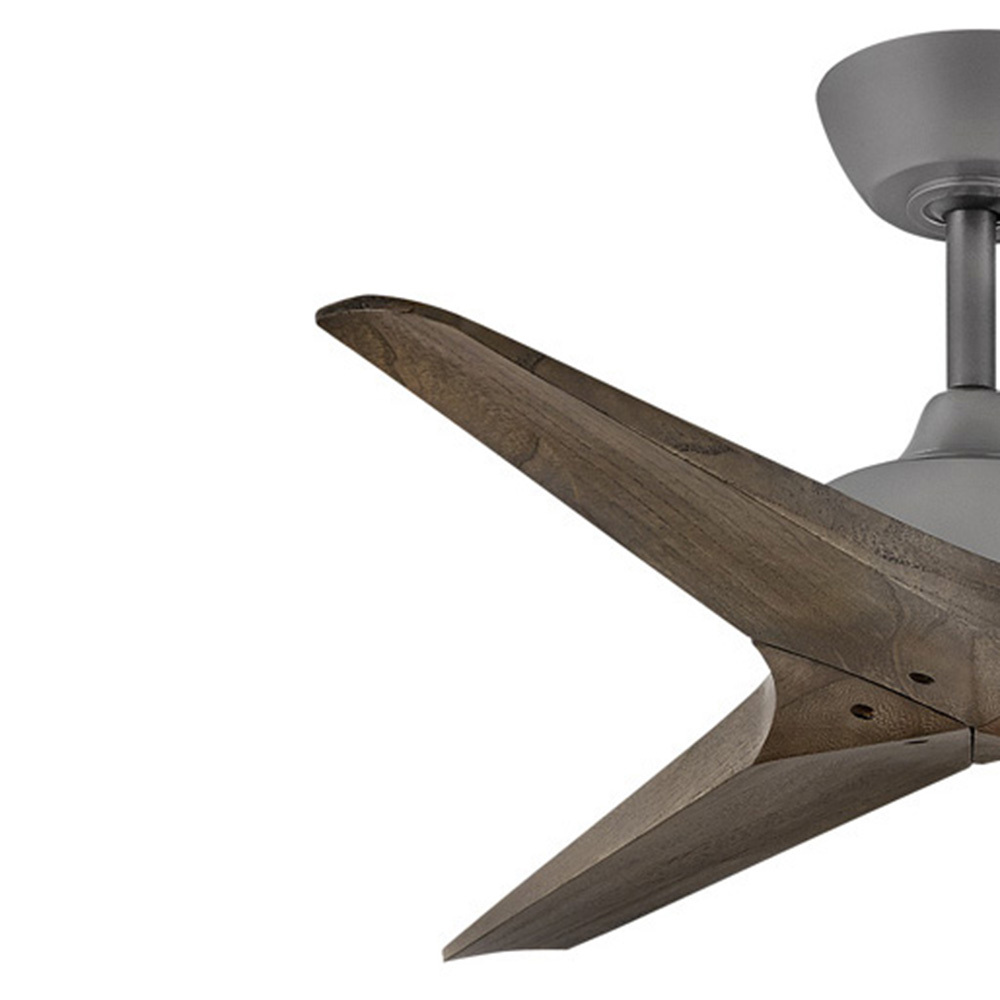

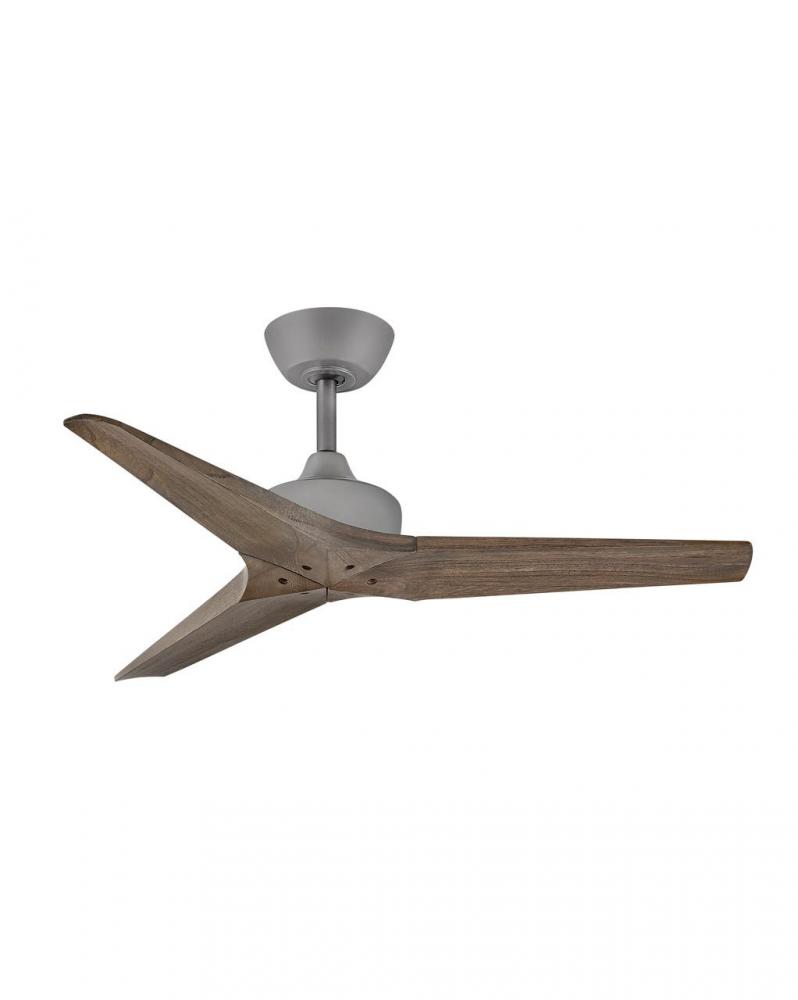

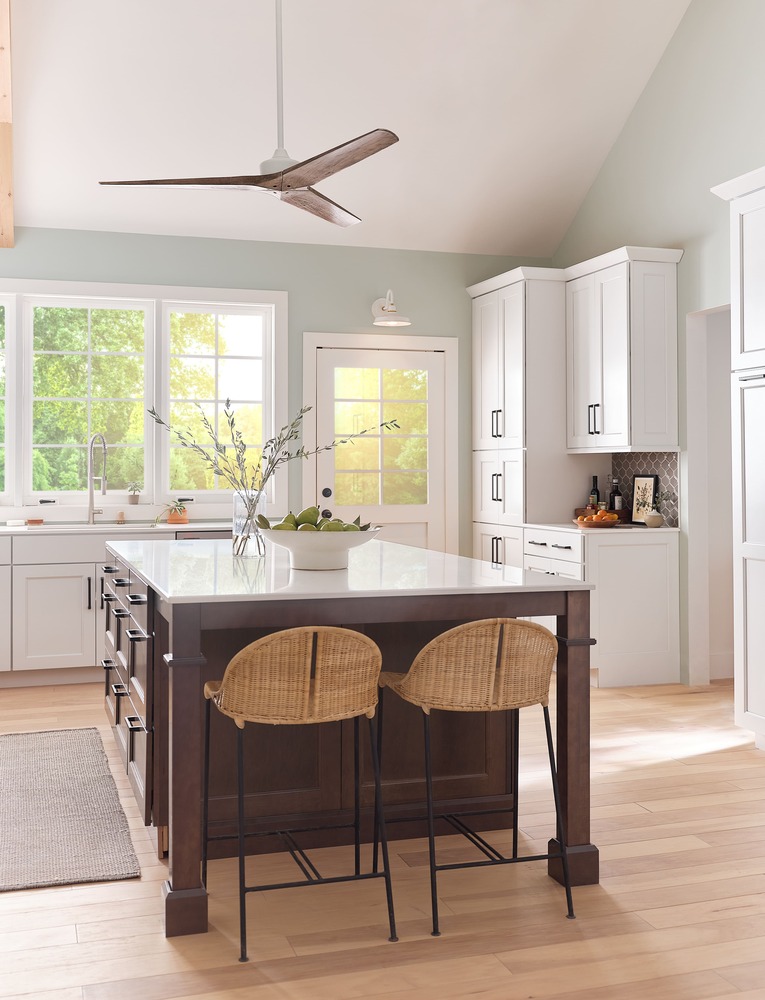

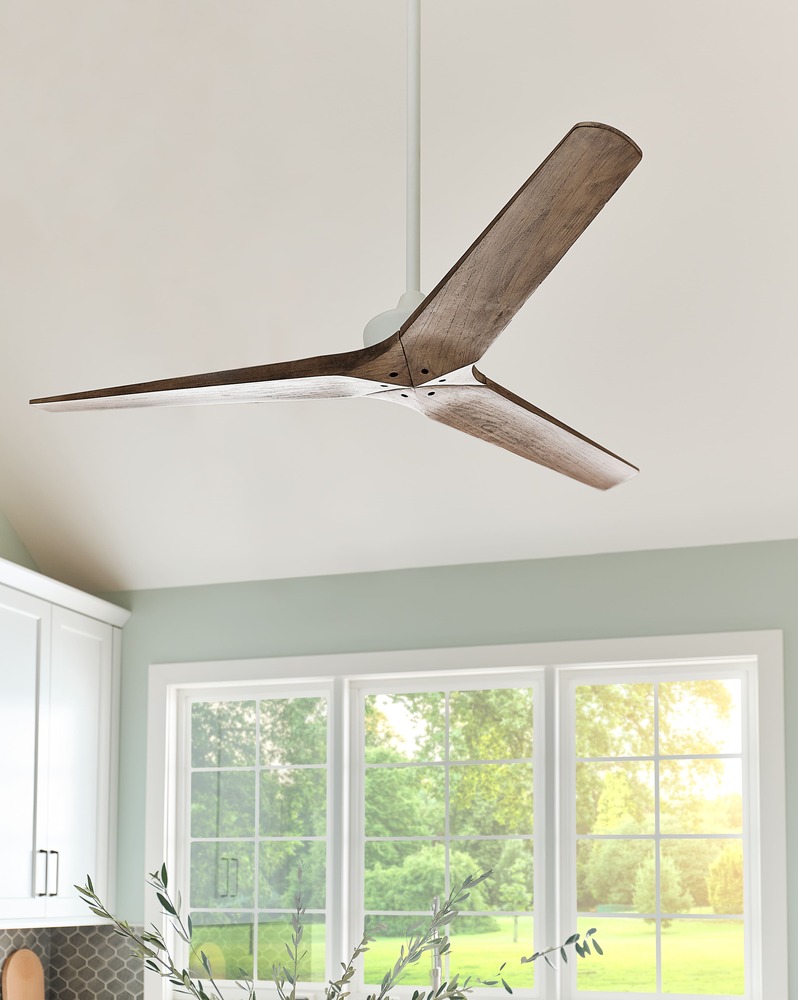

Built with a sleek, carefully crafted design, Chisel redefines dramatic style. Sturdy solid wood blades are available in a variety of sophisticated finishes to complement modern interiors and outdoor settings. Damp rated. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

Gray

Miscellaneous

Style:

Modern

Option:

Title 24

Damp Rated

Prop 65

Voltage:

100-120

Number of Blades:

3 Blades

Location Rating:

Damp Rated

Refinement Options

Category:

Fan

Finish:

Graphite

Style:

Modern

Family:

Chisel

Voltage:

120 V

Air Flow Efficiency:

5032

Amperage:

0.36

Blade Finish:

Driftwood

Blade Pitch:

14

Blade Span:

44

Blades Included:

Yes

Canopy:

6 Dia. x 2.5 D

Introduction Date:

01/01/2021

Light Kit Included:

No

Material:

Steel

Motor Size:

165 x 21

Motor Type:

DC

Ship Carton Height:

7.09

Ship Carton Length:

24.21

Ship Carton Width:

14.96

Ship Weight:

15.66

Vendor Ship Method:

Parcel

Weight:

13.45

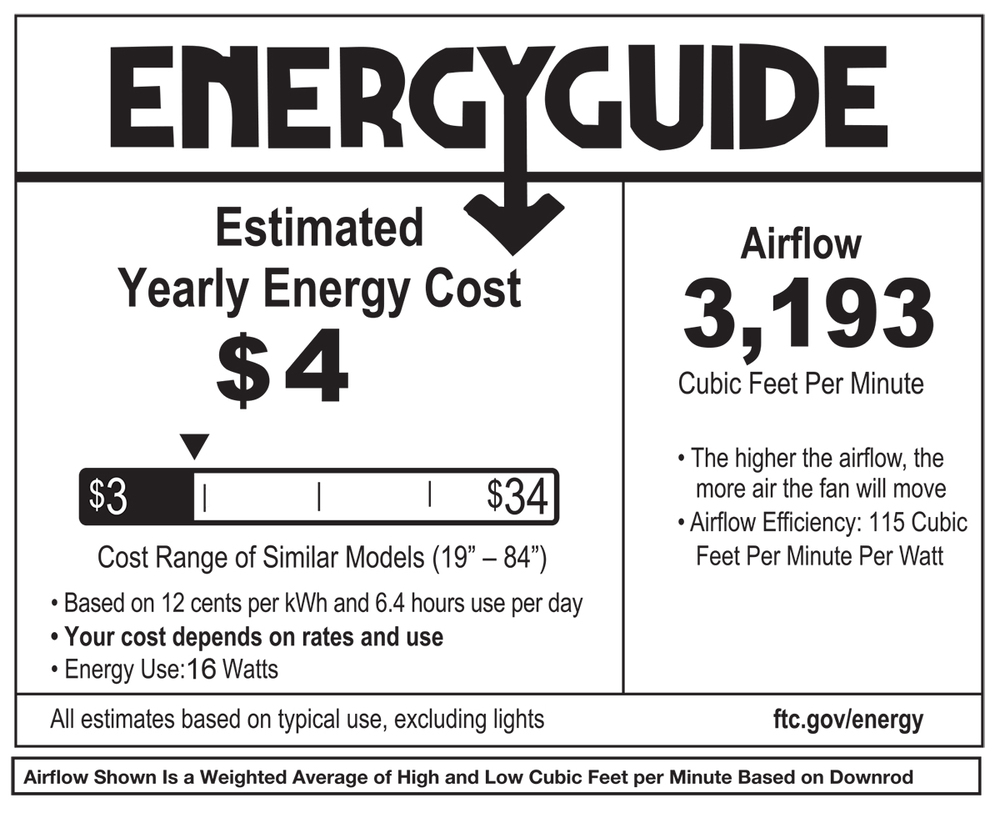

Airflow Avg:

3193

AMPS Avg:

0.21

Avg Energy Use:

16

Blade Material:

Wood

Blade Options Available:

No

Blade To Ceiling Height:

12

Blades Reversible:

No

Bulb Included:

No

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

Taiwan

Dual Mount:

No

Efficiency Avg:

200

Efficiency High:

151

Energy Cost Avg:

4

Energy Cost High:

9

Energy Use High:

33.3

Fan Control:

Yes

Flush Mount Fan:

No

Light Kit Adaptable:

No

Location Rating:

Damp Rated

Motor Fan Speed:

6

Number of Blades:

3

Operating Frequency:

60

Prop 65 Description:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

170

RPMS High:

289

Safety Rating:

ETL Approved, C-US Approved

Single Power Switch:

Yes

Slope:

20

Sloped Ceiling Adaptable:

Yes

Stand By Power:

0.2

Title 24:

No

WIFI Control Included:

Yes

WIFI Control Optional:

No

Blades, controls, switches, capacitors and hardware carry a 1-year warranty

Bold silhouette with dramatic details creates a modern statement

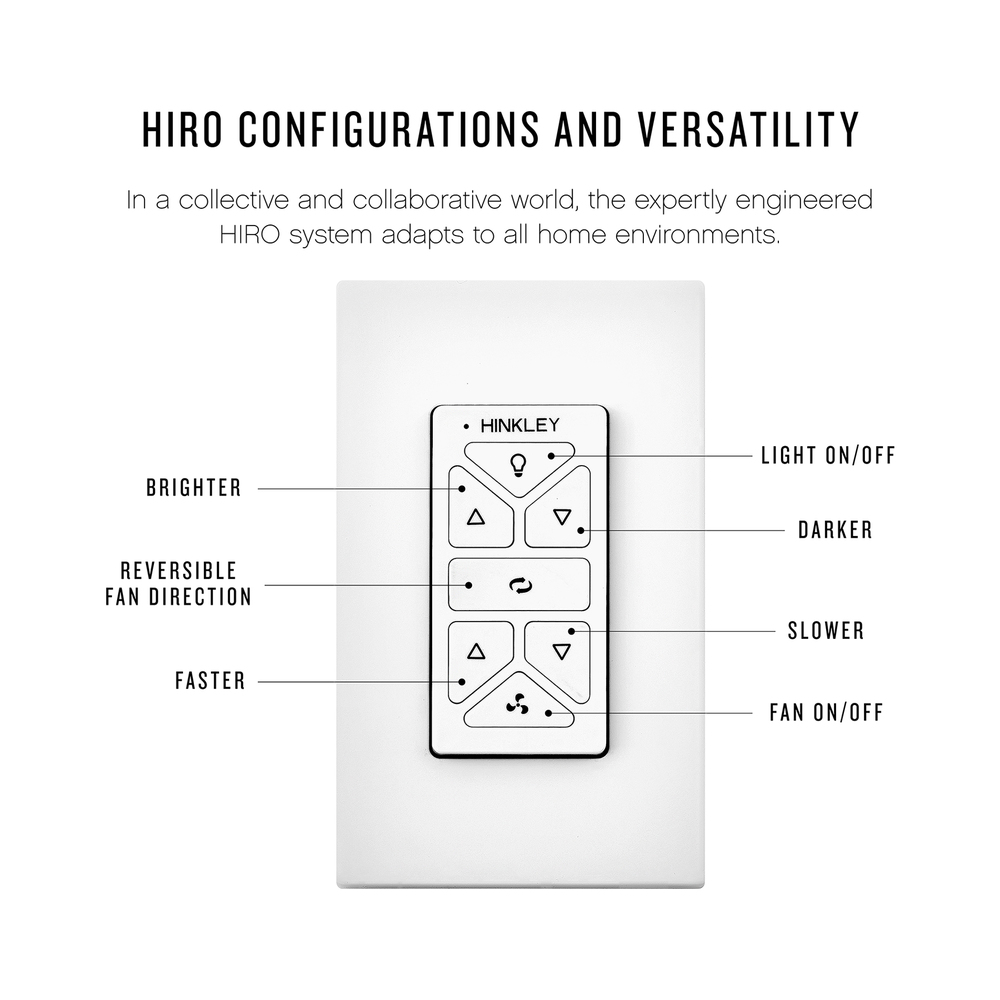

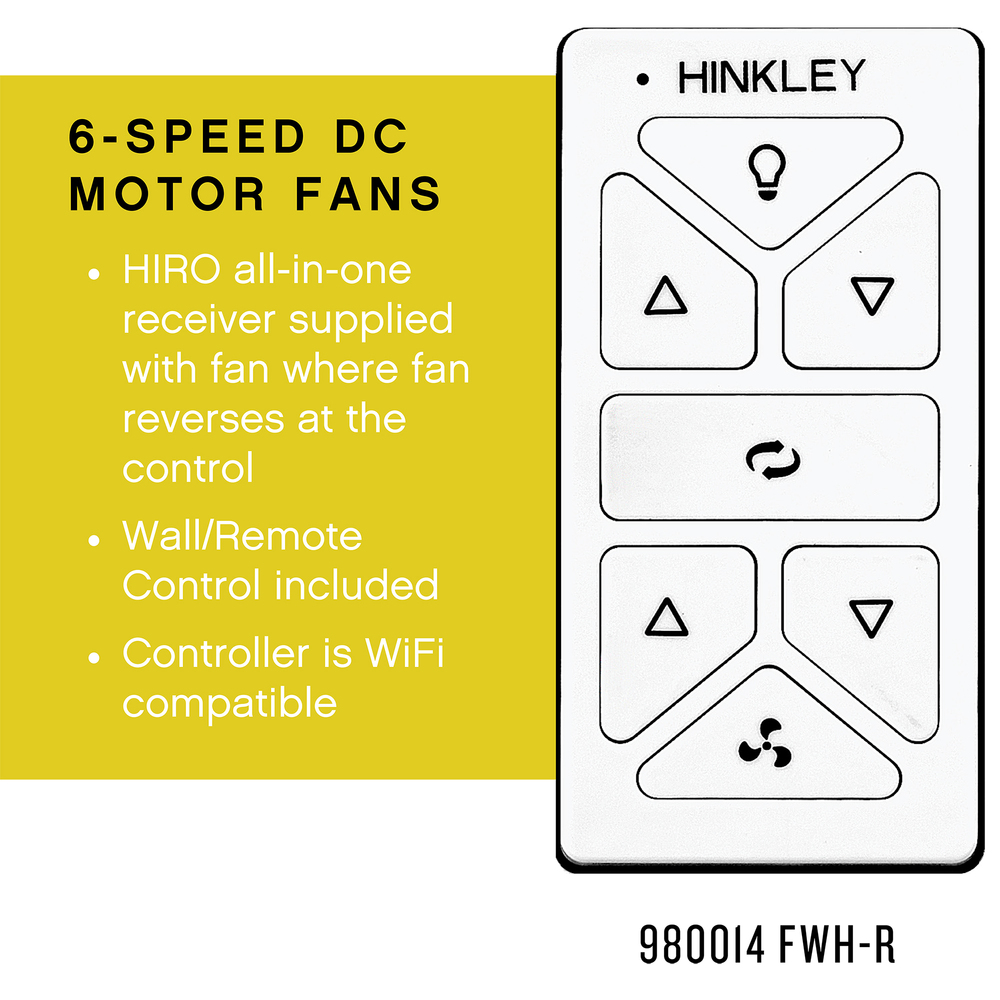

Fan Control included, HIRO Control - 6 Speed Reversing

Fans should be installed at a minimum of 7 feet from the floor

For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.

Motor carries a lifetime warranty

Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.

This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

This item may be hung on a sloped ceiling

WiFi compatible with included fan control
