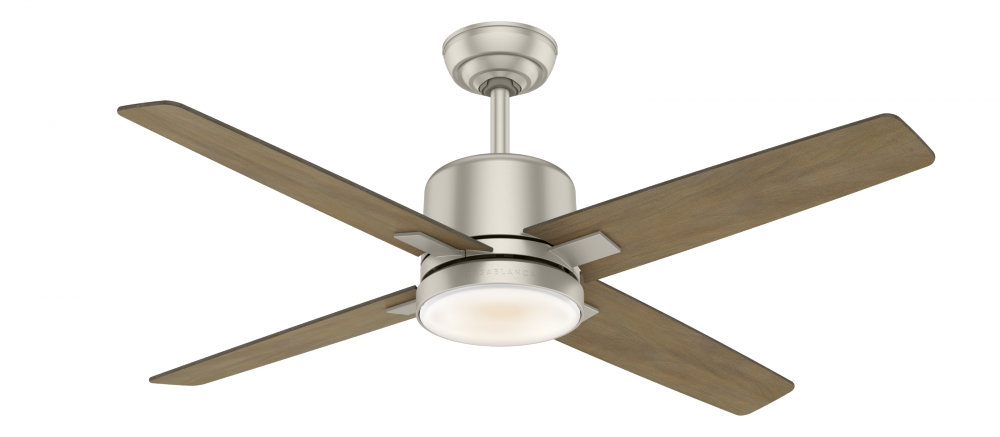

Product Overview

From classic to contemporary, the smooth lines of the Axial will complement any large, indoor space. The clean housing finishes provide contrast to the rustic, farmhouse-inspired blades while the integrated, energy-efficient LED bulb illuminates the room. Reversible blades offer an alternate tone-on-tone combination, creating more options for your home's modern farmhouse decor. There’s no question this simple, yet charming fan will keep you cool and content. From the makers of the World’s Finest Ceiling Fan®.

Energy Information at High Speed

Airflow:

3680 Cubic Feet per Minute

Electricity Rate:

49 Watts (excluded lights)

Airflow Efficiency:

75 Cubic Feet Per Minute Per Watt

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Style:

Transitional

Modern

Farm House

Voltage:

100-120

Lumens:

1601-2600

Number of Blades:

4 Blades

Kelvin:

2501-3000

Refinement Options

Category:

Fan

Finish:

Painted Pewter

Style:

Casual

Farmhouse

Modern

Rustic

Transitional

Option:

ETL Approved

Family:

Axial

Glass:

Painted Cased White

Voltage:

120 V/60 Hz

Number of Bulbs:

1 Bulbs

Air Flow CFM:

3680

Air Flow Efficiency:

75

Blade Finish:

Grey Washed

River Timber

Blade Pitch:

13

Blade Span:

52

Blades Included:

Yes

Bulb Dimmable:

Yes

Bulb Hours:

60,000

Bulb Type:

LED Module

Canopy:

Height- 2.75, Width- 6.49

Designer:

Axial

Down Rod Included:

3

6

Electricity Used:

49

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1700

Motor Fan Speed:

4

Motor Size:

172 x 20

Motor Type:

WhisperWind™

Pull Chain Included:

No

Ship Carton Height:

12.5

Ship Carton Length:

10.6

Ship Carton Width:

24

Ship Weight:

24.3

Sold By:

EA

Special Features:

LED Light Kit For Lower Energy Consumption, Brighter Light Output And A Longer Lifespan Than Traditional Bulbs

Switch/Control Included:

Yes

Warranty:

Limited Lifetime Motor Warranty

Weight:

21.16

3 Way Light Switch:

Yes

6 Square (ID):

Casual Modern

Airflow:

3680

Audible Feedback Receiver:

Yes

Base Type:

Int LED

Batteries Included:

Yes

Battery Size:

AAA

Blade Material:

Plywood

Blade Overlay:

Veneer

Blade Pitch Feature:

13 degree blade pitch optimized to ensure ideal air movement and peak performance

Blade Side 1 Finish:

River Timber

Blade Side 2 Finish:

Grey Washed

Blade Side Feature:

4 River Timber / Grey Washed reversible blades included

Bulb Count & Type Feature:

Includes 1 16W energy-efficient, LED bulbs to give you control of the ambiance in your space

Bulb CRI:

80

Bulb Included:

Yes

Bulb Wattage:

16W

Can be used without Lightkits:

No

Canopy Mounting Feature:

Installer's Choice® three-position mounting system allows for standard, low, or angled mounting

Canopy Type Description:

Standard Platform

Carton Cubic Feet:

1.84

Ceiling to Bottom of Fan:

47

CFM High:

5617

Control Type Included:

Wall Control

Country of Origin:

CN

Dim A - Angled - Ceiling to Bottom of Fan:

47

Dim A - Standard - Ceiling to Bottom of Fan:

17

Dim A Angled Ceiling To Bottom Of Fan:

47.00

Dim A Flush Ceiling To Bottom Of Fan:

14

Dim A Standard Ceiling To Bottom Of Fan:

17.00

Dim B - Angled - Ceiling to Bottom of Fan Blade:

43.23

Dim B - Flush - Ceiling to Bottom of Fan Blade:

10.23

Dim B - Standard - Ceiling to Bottom of Fan Blade:

13.23

Dim B Angled Ceiling To Bottom Of Fan Blade:

43.23

Dim B Flush Ceiling To Bottom Of Fan Blade:

10.23

Dim B Standard Ceiling To Bottom Of Fan Blade:

13.23

Dim C - Standard - Ceiling to Bottom of Canopy:

2.75

Dim C Standard Ceiling To Bottom Of Canopy:

2.75

Dim D - Standard - Width of Fan Body:

8.58

Dim D Standard Width Of Fan Body:

8.58

Dim E - Standard - Canopy Width:

6.49

Dim E Standard Canopy Width:

6.49

Dim F - Angled - Ceiling to Bottom of Light:

47

Dim F - Flush - Ceiling to Bottom of Light:

14

Dim F - Standard - Ceiling to Bottom of Light:

17

Dim F Angled Ceiling To Bottom Of Light:

47.00

Dim F Flush Ceiling to Bottom of Light:

14.00

Dim F Standard Ceiling To Bottom Of Light:

17.00

Dim G - Standard - Height of Motor Housing:

5.37

Dim G Standard Height Of Motor Housing:

5.37

Dips on Receiver:

No

Downrod Feature:

Includes 6'' and 3'' downrods to ensure proper distance from the ceiling and optimize air movement at your preferred blade height

Dry Rated:

Yes

Estimated Yearly Energy Cost:

14

ETL Approved:

Yes

Five Minute Fan:

No

Glass Finish:

Painted Cased White

Glass Finish Feature:

Includes Integrated light kit with Painted Cased White glass

Housing Feature:

Painted Pewter finish

Housing Finish:

Painted Pewter

Included Control Feature:

Includes Wall Control for easy speed and lighting adjustment right from your wall switch

Integrated LED Light Kit Feature:

Designed with a pre-installed, long-lasting, integrated light kit for easier assembly

LED Feature:

LED light kit for lower energy consumption, brighter light output and a longer lifespan than traditional bulbs

LED Indicator on Transmitter:

Yes

LED Light Kit:

Yes

Lifetime Expectation hours:

60,000 Hrs

Light Kit Warranty:

5 Year

Light Limiter Control:

190W

Light Spec:

Hunter Platform | Int LED | H&T | 16W

Location Feature:

Rated for indoor spaces only

Motor Type Feature:

Reversible, 4-speed WhisperWind® motor delivers ultra-powerful air movement with whisper-quiet performance so you get the cooling power you want without the noise you don’t™

Mounting Options:

Installer's Choice® three position mounting system allows for standard, low or angled mounting

Mounting Options Friendly Value:

Installer's Choice® three position mounting system allows for standard, low or angled mounting

No Light Cap Included:

No

No-Light Cap Included:

No

Number of Batteries:

2

Number of Blades:

4

Pop Lock Blades:

No

Pop-Lock Blades:

No

Product Portfolio:

Casablanca

Receiver Included:

Yes

Receiver Location:

Canopy

Reversable Motor:

Yes

Reversible Blades:

Yes

Reversible Motor:

Reversible motor allows you to change the direction of your fan from downdraft mode during the summer which helps cool the room to updraft mode during the winter to help circulate trapped warm air near the ceiling.

Safety Rating:

ETL

Serenity Speed Feature:

Extra low serenity speed produces a uniquely soothing breeze, while graceful blade movement creates a luxurious look and mood

Shipping Cubic Feet:

1.84

SIMPLEconnect:

No

Skynet Adjustment Feature:

Adjust speed and reverse ceiling fan direction with premium Wall Control

Skynet Beep Feature:

Audible beep confirms button command on remote control

Skynet Switch Feature:

Pre-installed remote control receiver eliminates the common dead switch and maintains functionality of both switches on a dual switch

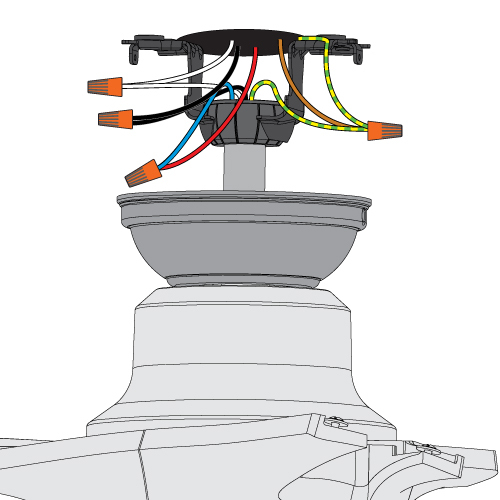

Skynet Wiring Feature:

Control receiver pre-installed in the fan eliminates the need for additional wiring

Softlights:

No

Speeds:

4

Speeds Feature:

4 Speeds

Stainless Steel Hardware:

No

Sure Speed:

No

SureSpeed:

No

Transmitter Type:

Remote Wall Control

Tunable White:

No

Twist Lock Glass:

Yes

Type of Batteries:

Alkaline

Ultra Low Profile:

No

Uplight Downlight Separate Control:

No

Warranty Feature:

Limited Lifetime Motor Warranty is backed by the only company with over 130 years in the fan business

13 degree blade pitch optimized to ensure ideal air movement and peak performance

4 River Timber / Grey Washed reversible blades included

4 Speeds

A four-speed WhisperWind® motor delivers ultra-powerful air movement with a whisper-quiet performance for cooling power without the noise

Adjust speed and reverse ceiling fan direction with premium Wall Control

Audible beep confirms button command on remote control

Control receiver pre-installed in the fan eliminates the need for additional wiring

Designed with a pre-installed, long-lasting, integrated light kit for easier assembly

Extra low serenity speed produces a uniquely soothing breeze, while graceful blade movement creates a luxurious look and mood

From classic to contemporary, the smooth lines of the Axial modern ceiling fan will complement any large, indoor space

Includes 1 16W energy-efficient, LED bulbs to give you control of the ambiance in your space

Includes 6'' and 3'' downrods to ensure proper distance from the ceiling and optimize air movement at your preferred blade height

Includes Integrated light kit with Painted Cased White glass

Includes Wall Control for easy speed and lighting adjustment right from your wall switch

Installer's Choice® three position mounting system allows for standard, low or angled mounting

Installer's Choice® three-position mounting system allows for standard, low, or angled mounting

LED light kit for lower energy consumption, brighter light output and a longer lifespan than traditional bulbs

Limited Lifetime Motor Warranty is backed by the only company with over 130 years in the fan business

Painted Pewter finish

Pre-installed remote control receiver eliminates the common dead switch and maintains functionality of both switches on a dual switch

Rated for indoor spaces only

Reversible blades offer an alternate tone-on-tone combination, creating more options for a home's modern decor

Reversible motor allows you to change the direction of your fan from downdraft mode during the summer which helps cool the room to updraft mode during the winter to help circulate trapped warm air near the ceiling.

Reversible, 4-speed WhisperWind® motor delivers ultra-powerful air movement with whisper-quiet performance so you get the cooling power you want without the noise you don’t™

The clean housing finishes provide contrast to the rustic, farmhouse-inspired blades while the integrated, energy-efficient LED bulb illuminates the room
