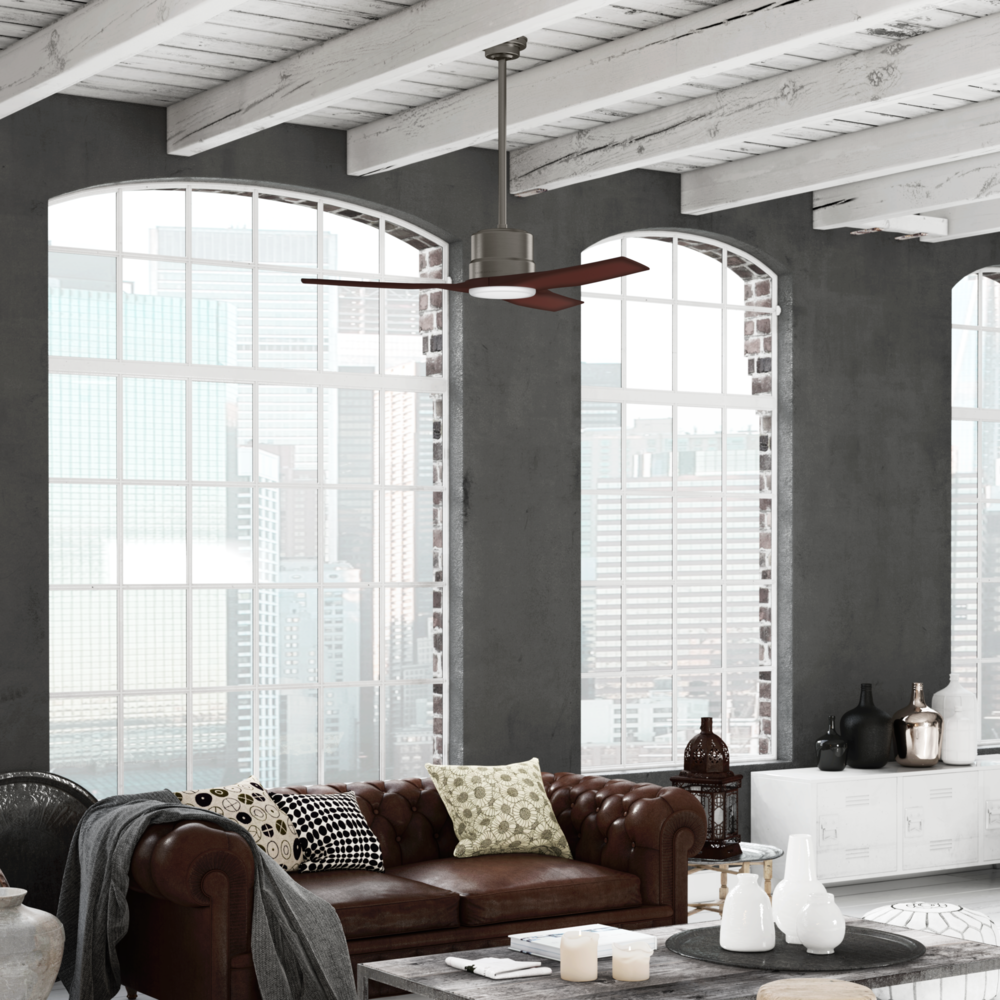

Taking cues from the early American Industrial Age, this fan is a unique blend of inspirational styles. The Piston gets its name from its likeness to machine pistons from old, large machinery. Clean lines and slick finishes combine with the mid-century blade design to provide a look that is undoubtedly modern and truly Casablanca®, World’s Finest Ceiling Fan®. This damp-rated fan was built to withstand the elements making it a perfect fit for areas exposed to moisture and humidity. Constructed with stainless steel hardware, the Piston is a unique addition to your large sunroom, patio, or bathroom boasting an industrial interior design style.
Standard Information
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Miscellaneous
Style:
Modern
Casual
Option:
Outdoor
Damp Rated
LED
Voltage:
100-120
Lumens:
1101-1600
Number of Blades:
3 Blades
Kelvin:
2501-3000
Refinement Options
Category:
Fan
Finish:
Brushed Slate
Style:
Casual
Option:
LED
Outdoor
Family:
Piston
Glass:
Painted Cased White
Voltage:
120 V/60 Hz
Number of Bulbs:
1 Bulbs
Air Flow CFM:
5490
Air Flow Efficiency:
90
Blade Pitch:
13
Blade Span:
52
Blades Included:
Yes
Bulb Dimmable:
Yes
Bulb Hours:
50000
Bulb Type:
LED Module
Down Rod Included:
2
Kelvin:
2700
Light Kit Included:
Yes
Lumens / Light Output:
1500
Motor Size:
AC 172 x 12
Motor Type:
WhisperWind®
Pull Chain Included:
No
Ship Carton Height:
13.1
Ship Carton Length:
11.3
Ship Carton Width:
26.1
Ship Weight:
23.35
Warranty:
Limited Lifetime Motor
Weight:
19.82
Airflow:
3702
Batteries Included:
Yes
Blade Material:
Plastic
Blade Side 1 Finish:
Coffee Beech
Blade Side 2 Finish:
Coffee Beech
Bulb CRI:
80
Bulb Included:
Yes
Canopy Type Description:
Standard Platform
Control Type Included:
Handheld Remote
Dim A - Angled - Ceiling to Bottom of Fan:
46.71
Dim A - Standard - Ceiling to Bottom of Fan:
13.71
Dim A Flush Ceiling To Bottom of Fan:
12.71
Dim B - Angled - Ceiling to Bottom of Fan Blade:
46.21
Dim B - Flush - Ceiling to Bottom of Fan Blade:
12.21
Dim B - Standard - Ceiling to Bottom of Fan Blade:
13.21
Dim C - Standard - Ceiling to Bottom of Canopy:
2.75
Dim D - Standard - Width of Fan Body:
8.66
Dim E - Standard - Canopy Width:
6.49
Dim F - Angled - Ceiling to Bottom of Light:
46.71
Dim F - Flush - Ceiling to Bottom of Light:
12.71
Dim F - Standard - Ceiling to Bottom of Light:
13.71
Dim G - Standard - Height of Motor Housing:
6.46
Energy Star:
No
Energy Use:
41
Estimated Yearly Energy Cost:
11
LED:
Yes
LED Light Kit:
Yes
Light Spec:
Hunter Hero Int LED | MaxLite 17 W | K5176-01
Location Rating:
Damp Rated
Max Wattage:
17 W
Number of Batteries:
1
Number of Blades:
3
Outdoor:
Yes
Product Class Code:
60A
Receiver Location:
Canopy
Reversable Motor:
Yes
Reversible Blades:
Yes
Safety Rating:
ETL Approved
Shipping Cubic Feet:
2.24
Speeds:
4
Stainless Steel Hardware:
Yes
Style-2:
Modern
Sure Speed:
No
1 bulbs included
3 Coffee Beech blades included
COMPATIBLE ACCESSORIES: Works with Hunter and Casablanca accessories, not including Hunter Original® accessories

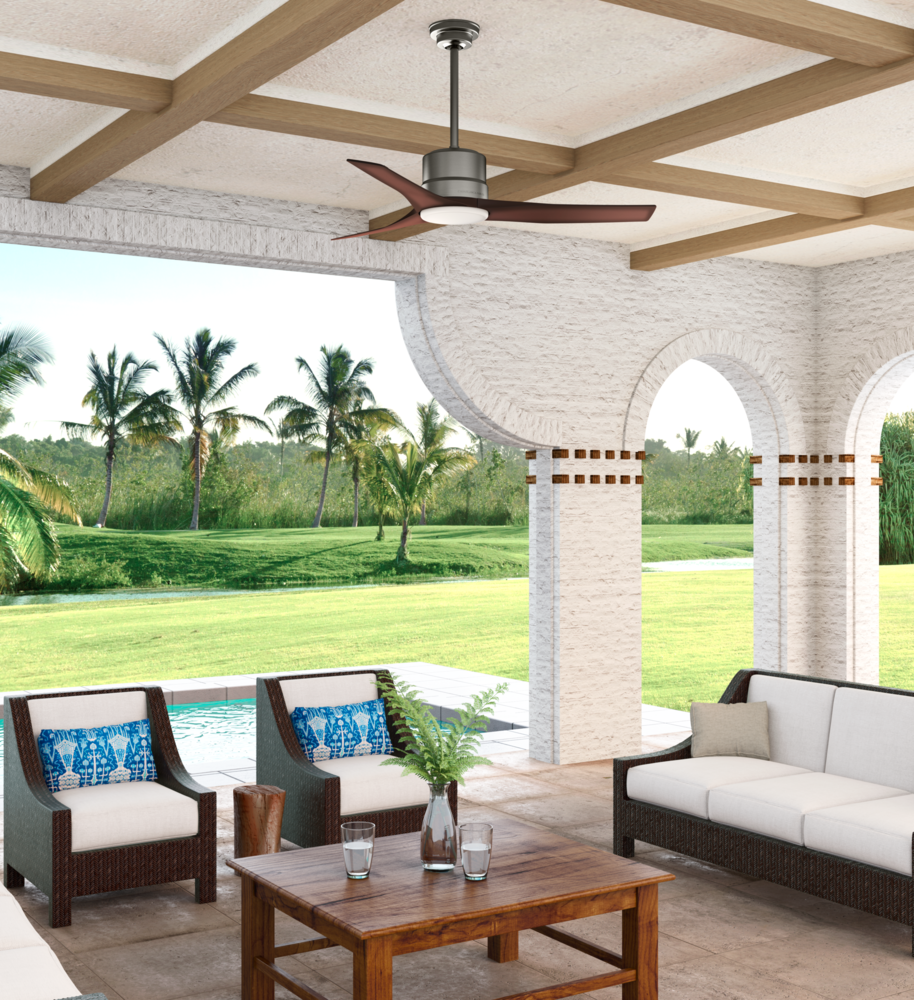

Damp-rated for covered outdoor spaces
DAMP-RATED: A great option for covered patios, screened porches, and other areas that are not directly exposed to rain, snow, water, or moisture.
DROOP-FREE BLADES: Made from durable materials to ensure no blade drooping
EASY CONTROL FUNCTION: Use the control to adjust the fan speed and dim the light.
Handheld Remote included
Includes 1 17W energy-efficient, LED bulbs to give you control of the ambiance in your space
Includes 2'' downrod to ensure proper distance from the ceiling and optimize air movement
Includes Handheld Remote for easy speed and lighting adjustment from anywhere in the room
Includes Integrated light kit with Painted Cased White glass
INDUSTRY-LEADING WARRANTY: Backed by Casablanca’s Limited Lifetime Motor Warranty, ensuring long-lasting performance and reliability.
Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
LARGE ROOM FAN: Ideal size for spaces like living rooms and bedrooms.
LIGHT OUTPUT: Provides bright, warm light.
Reversible, 4-speed WhisperWind® motor delivers ultra-powerful air movement with whisper-quiet performance so you get the cooling power you want without the noise you don’t®
STANDARD PROFILE MOUNTING: 2 downrod included.
WHISPER-QUIET MOTOR: WhisperWind®, 4-speed, reversible motor for optimal performance in summer and winter.
