Product Overview

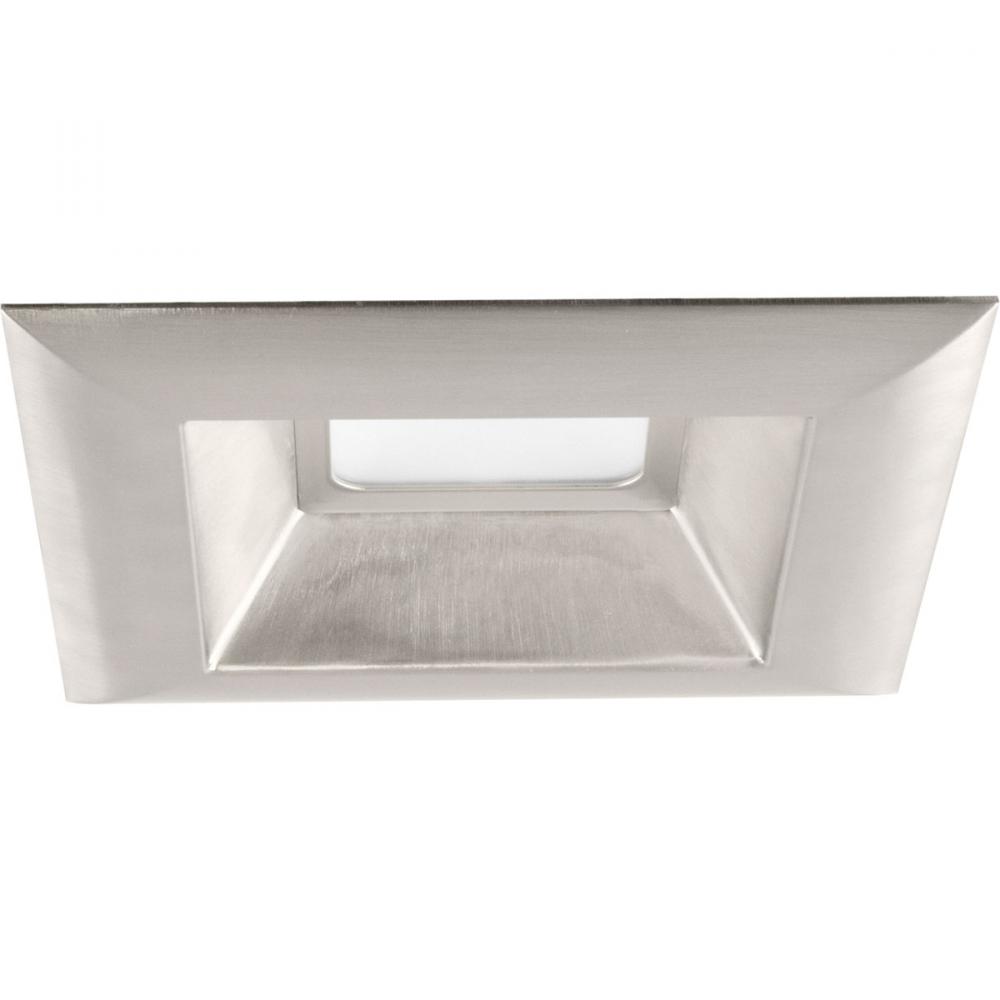

The P8171 is ideal for use in both new construction as well as remodel/retrofit. The sleek geometric shape provides a high end appeal for residential and commercial spaces. Light output is comparable to that of a typical 65W incandescent downlight, providing up to 75% energy savings. The P8171 is equipped with both Edison base adaptor and quick link connector allowing easy installation in many standard round incandescent recessed housings.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

Nickel

Style:

Traditional

Option:

Energy Efficient

Energy Star

Title 24

Wet Rated

LED

Mount Type:

Flush Mount

Location Rating:

Wet Rated

Refinement Options

Category:

Recessed-Trim

Family:

LED Retrofit Square

Voltage:

120 V

Number Of Bulbs:

1 Bulbs

Additional Info:

Spec Sheet click here

Warranty Info click here

Country of Origin- China

Bulb Hours:

50000

Bulb Type:

LED

Introduction Date:

06/01/2017

Kelvin:

3000

Keyword(s):

brushed nickel;6 inch led square recessed trim;grey;solid state;led;recessed;recessed light;recessed light kit;recessed trim;trim;recessed housing;housing;recessed light trim;retrofit trim;led trim;led recessed trim;nickel

Lumens / Light Output:

710

Material:

Aluminum Diecast Housing - Construction

Max Height:

4.25

Ship Carton Height:

8.120

Ship Carton Length:

7.870

Ship Carton Width:

5.000

Ship Weight:

1.220

Special Features:

Brushed Nickel Finish;Diffused Polycarbonate Lens Controls Direct Glare From The Leds;Easy "Push And Twist" Installation With (3) Friction Spring Clips;Can Be Installed In Most 6" Round Recessed Housings;Dimmable To 10% With Many Triac/Forward

Warranty:

5 Year Warranty

Weight:

1.12

Color:

Grey

CRI:

90+

Dimming Compatability:

Lutron NTEVL-300;Lutron AYLV-600P;Leviton 6672

Dimming Protocol:

Triac/Forward Phase

Dimming Range:

10%

Finish Type:

Plated

Frequency Rating:

60 Hz

Glass Shape:

Lens

LensShade Material:

Polycarbonate

Listed:

cCSAus

Mount Location:

Ceiling Flush/Recessed

Operating Temprature:

30º C

Overall Length With:

Overall Ht.
