Part Number: 1VN6C / Vendor ID #: 149

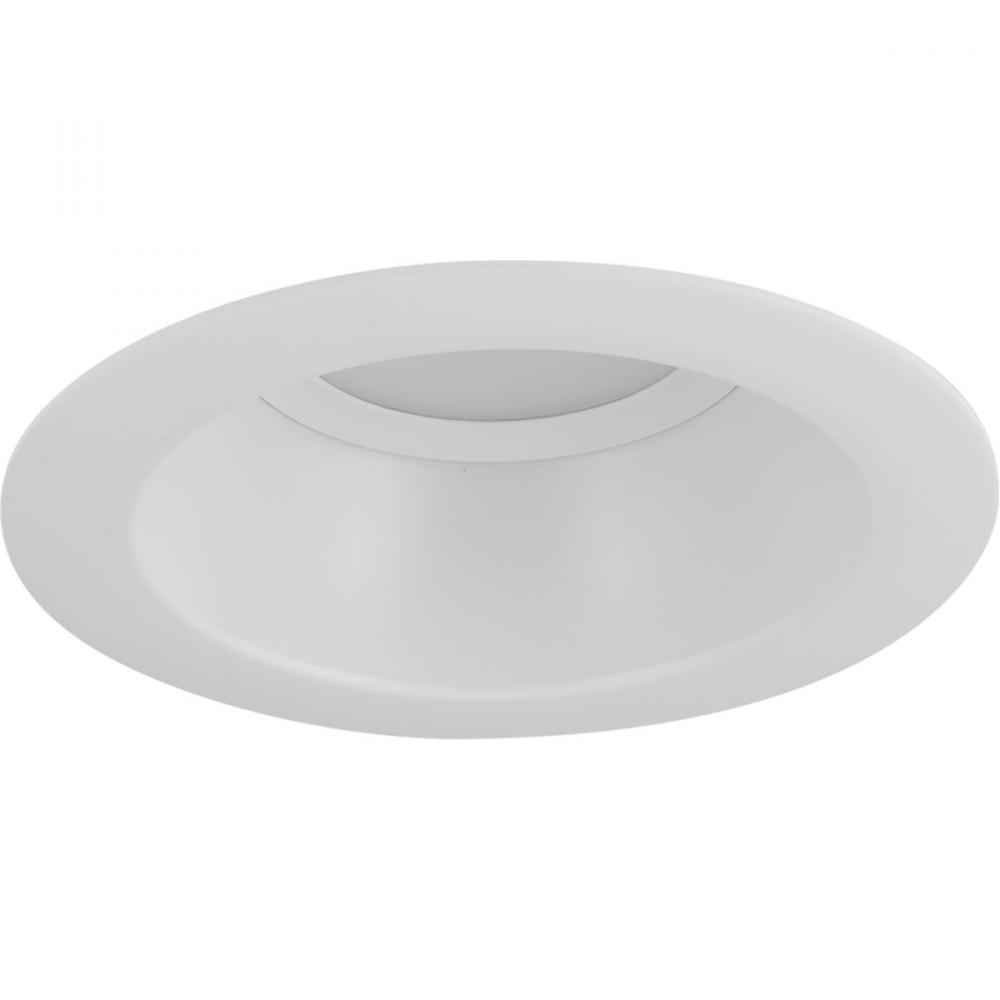

5" LED Recessed Trim for 5" Housing (P84-LED)
$39.90
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
  • Manufacturer availability unknown.
Dimensions
Height: 4.00"
Width: 6.34"
Length: 6.34"
Info & Guides
Included Items
Finish: Satin White
Glass: White
Shade: ...
Diameter: N/A
Product Overview
The 5" P8061 is ideal for use in both new construction as well as remodel/retrofit. Light output is comparable to that of a typical 65W incandescent downlight, providing up to 75 percent energy savings. The P8061 is equipped with both Edison base adapter and quick link connector allowing easy installation in many standard incandescent recessed housings. White finish.
 Standard Information
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White
Style:
Traditional
Option:
Energy Efficient
Energy Star
Title 24
Wet Rated
LED
Voltage:
100-120
Lumens:
450-800
Mount Type:
Flush Mount
Kelvin:
2501-3000
Location Rating:
Wet Rated
Refinement Options
Category:
Recessed-Trim
Finish:
Satin White
Option:
Energy Efficient
Energy Star
Title 24
Wet Rated
Family:
LED Recessed
Glass:
White
Voltage:
120
Number of Bulbs:
1 Bulbs
Bulb Hours:
50000
Bulb Type:
LED
Introduction Date:
01/16/2017
Kelvin:
3000
Keyword(s):
flush mount;ceiling fixture;ceiling light;led light;energy efficient
Length:
6.34
Lumens / Light Output:
713
Material:
Steel
Ship Carton Height:
7.50
Ship Carton Length:
7.50
Ship Carton Width:
4.37
Ship Weight:
0.90
Special Features:
Satin White finish.;Diffused polycarbonate lens controls direct glare from the LEDs.;Easy "Push and Twist" installation with (3) friction spring clips.;Can be installed in most competitors 5" recessed housings.;Dimmable to 10% with many Triac/F
Vendor Ship Method:
Non UPS Shippable False
Warranty:
5-year Limited
Weight:
1.35
Wire Included:
6 in
Americans with Disabilities Act:
No
Bulb CRI:
90 CRI
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Certified Listed Location:
Wet Location Listed
Construction Material Main Part:
Construction
Convertible Fixture Includes Both Mounts:
FALSE
Country of Origin:
CN
Dark Sky:
No
Design Series:
No
Dimming Compatability:
Lutron_Ariadni AYCL-153P;Lutron_Toggler TGCL-153P;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Leviton_Trimatron 6681
Dimming Protocol:
Triac/Forward Phase
Dimming Range:
10%
Energy Efficient:
Yes
Energy Star:
Yes
Finish Type:
Painted
Frequency Rating:
60 Hz
Glass Shape:
Lens
Grounded Convenience Outlet included:
No
JA8:
2016
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
10
Lens Shade Material:
Polycarbonate
Lumens per Watt:
71.00
Mount Location:
Ceiling Flush/Recessed
MTO:
No
Operating Temperature Celcius Max:
30 °C
Prop 65:
View
Prop 65 Description:
View
Safety Rating:
cCSAus
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
No
Title 24:
Yes
Weight of Fixture Exceeds NEC Limits:
No
Width Diameter:
6.2 in dia.
