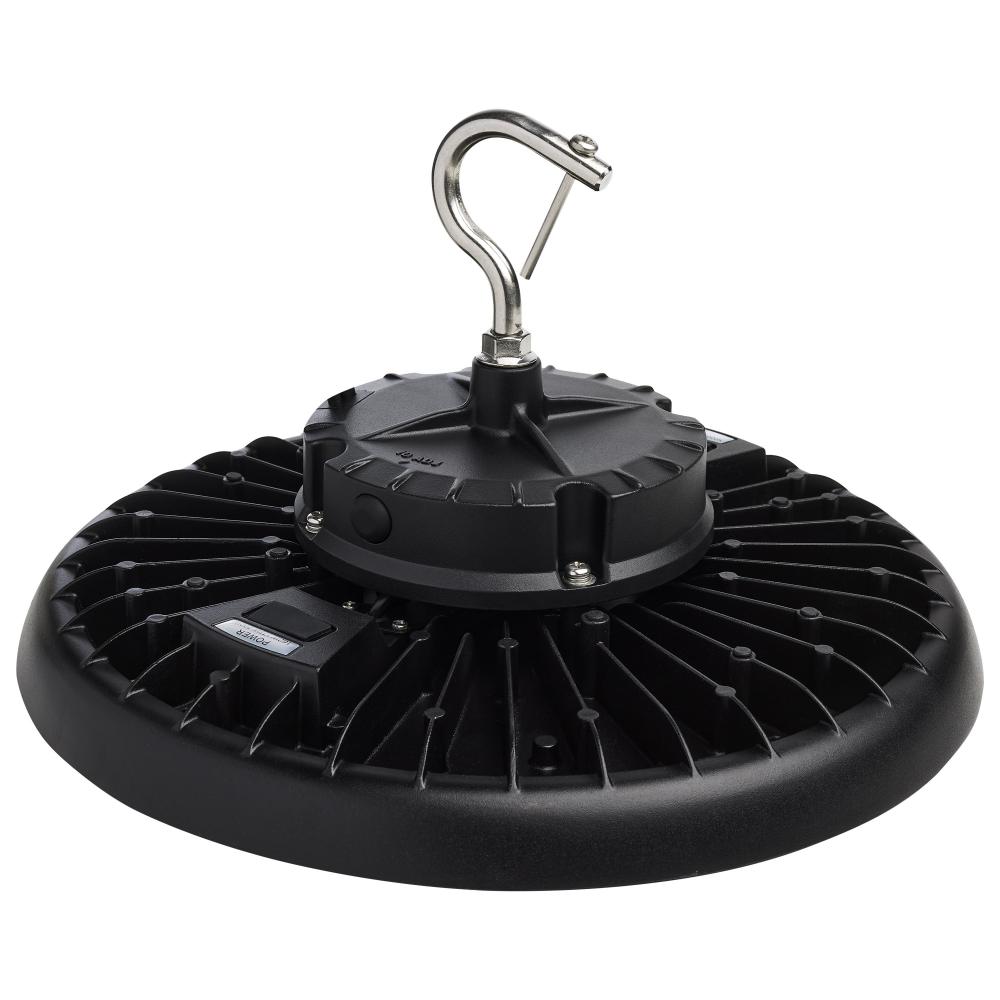

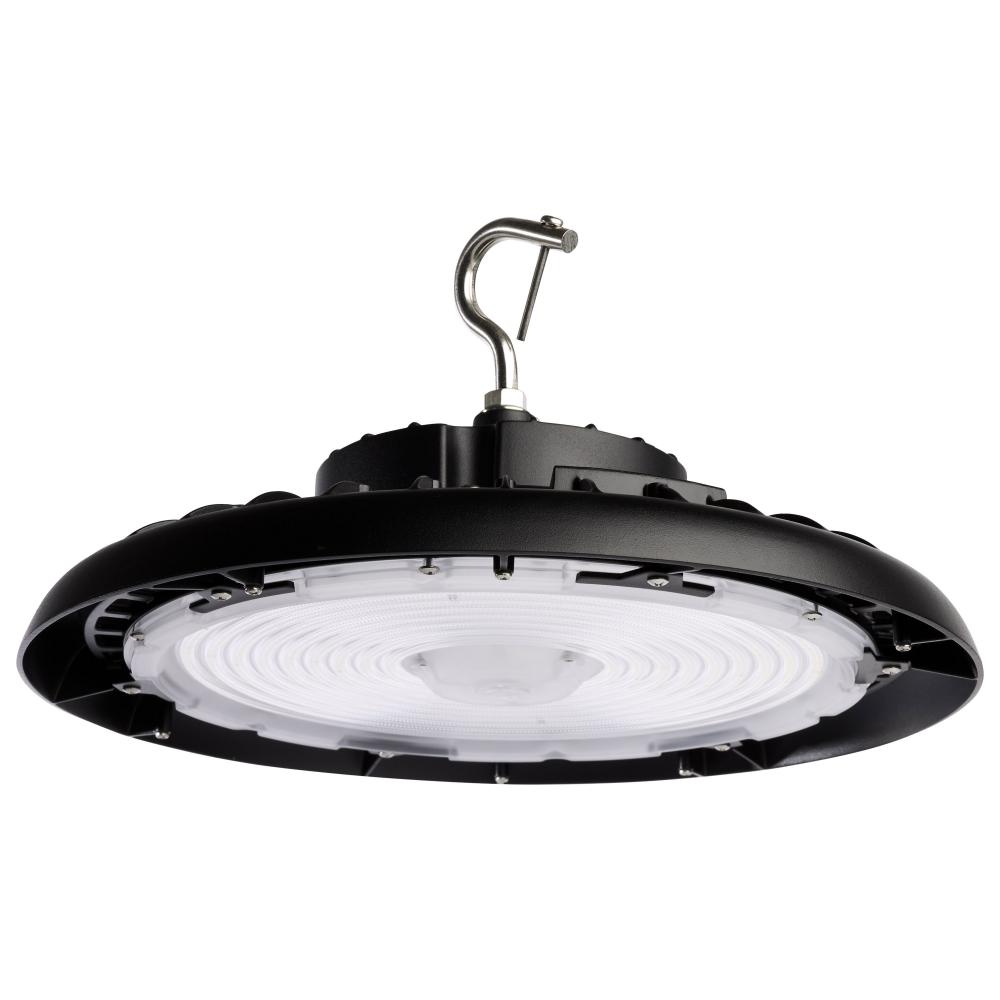

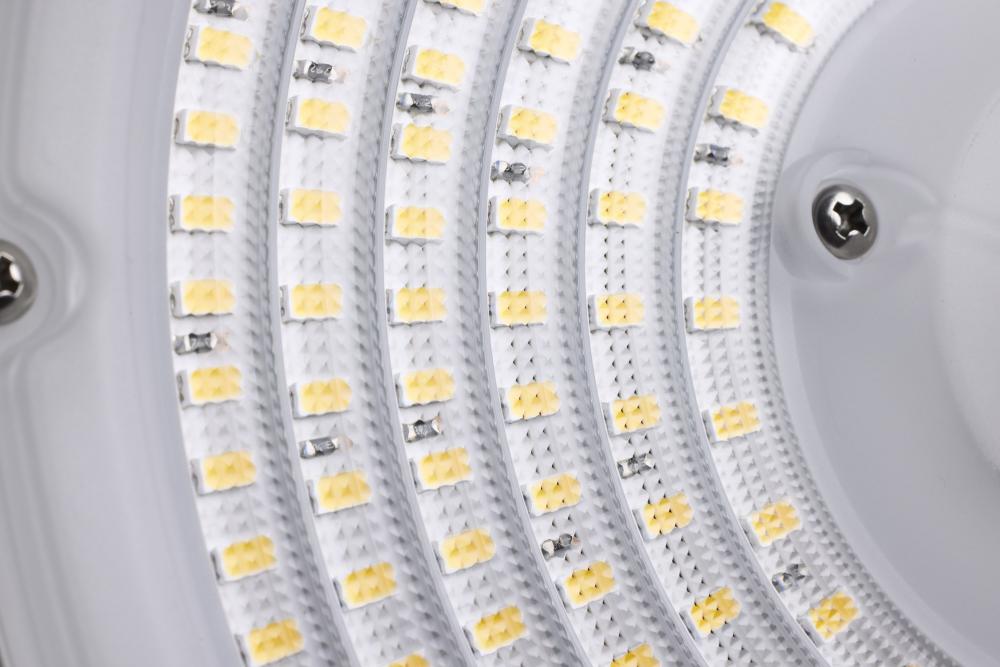

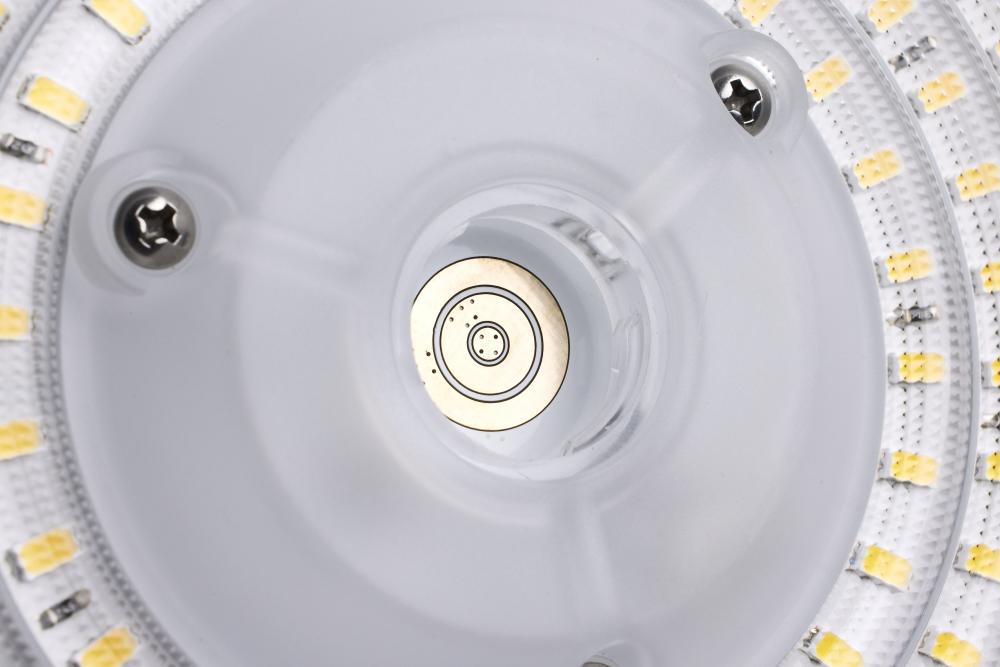

Wattage 150W/175W/200W and CCT Selectable 3K/4K/5K LED UFO High Bay; 100-277 Volt; Black Finish

Part Number: A68N2 / Vendor ID #: 81

Wattage 150W/175W/200W and CCT Selectable 3K/4K/5K LED UFO High Bay; 100-277 Volt; Black Finish

$198.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer may be Out Of Stock.

Dimensions

Height: 7.30"

Width: 13.40"

Product Overview

Wattage 150W/175W/200W and CCT Selectable 3K/4K/5K LED UFO High Bay; 100-277 Volt; Black Finish

Standard Information

Category:

Utility

Subcategory:

Other Utility

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Hi-Bay

Sub Category:

UFO

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Diameter:

13.4

Dimmable:

Yes-Dimmable

Each Height:

4.92

Each Length:

14.17

Each Width:

14.17

Lumens:

22200L-28800L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Wire Length:

Amps:

1.250-0.541/1.458-0.631/1.667-0.722A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Vietnam

CRI:

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

High-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

0.5717

Each Quantity:

Efficacy:

148.00/145.71/144.00 LPW

FCC Compliant:

Yes

Feature 1:

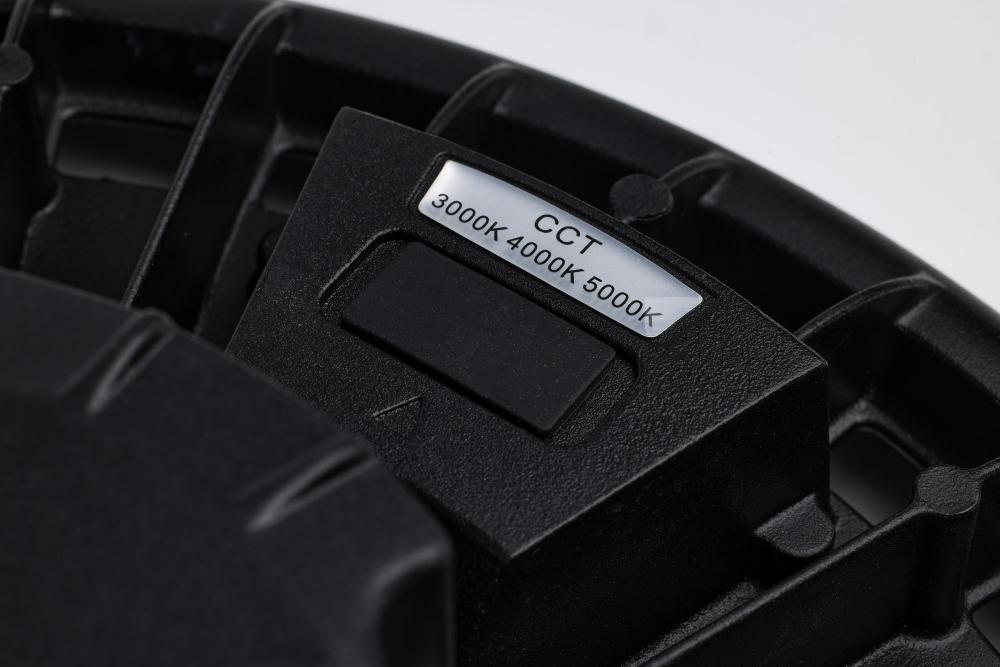

ColorQuick CCT Selectable

Feature 2:

PowerQuick Wattage Selectable

Feature 3:

0-10V Dimming Capable

Feature 4:

6 Foot Whip with Dimming Wires Included

Feature 5:

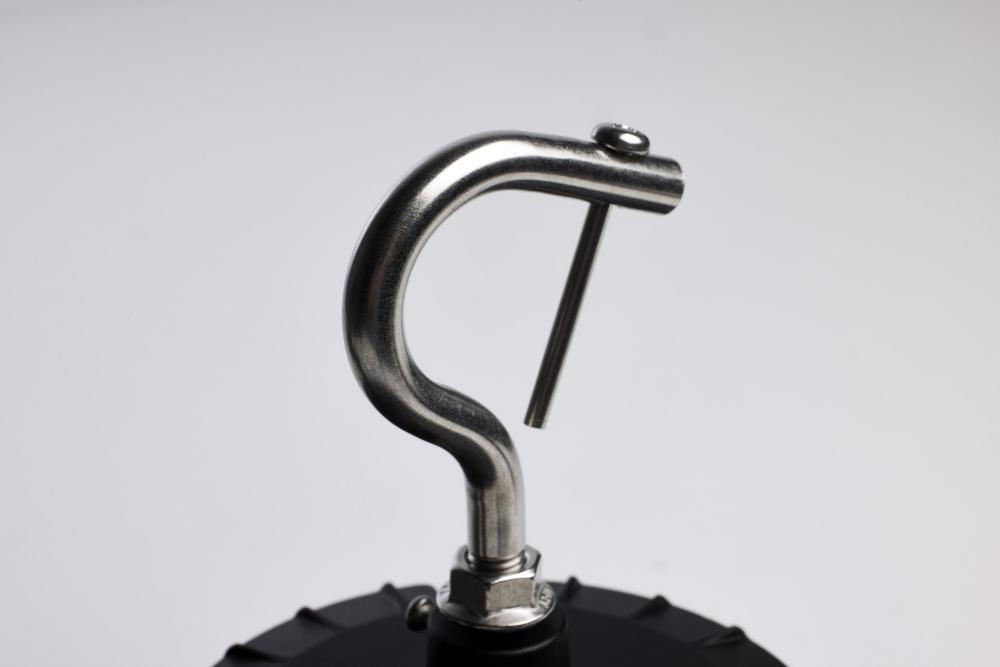

Locking Hook Mount Included

Feature 6:

Additional Mounting Accessories Available

Feature 7:

5 Year Warranty

Finish Family:

Black

Has Emergency Battery:

HID Equiv:

400W-450W

Impact Rating (IK):

IK08

Incandescent Equivalent:

1000W/1500W/2000W

Includes:

Locking Hanging Hook; 6 Foot Whip

Indoor Outdoor:

Indoor

Installation Notes:

Mounting Height: Up to 30 feet

IP Rating:

IP65

JA8 Compliant:

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-771R2 Round High Bay Field Selectable Fixture is an energy efficient and maintenance-free solution to traditional HID high bay fixtures. This luminaire features ColorQuick and PowerQuick technology allowing a choice of three wattages, 1

Material:

Die-Cast Aluminum

Mounting Procedure:

Pendant Hanging Surface

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +50C (+122F)

Pack Type:

Kraft Box

Photocell:

Optional Add-On

Power Factor:

0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's Round High Bay Field Selectable fixtures are an energy efficient and maintenance-free solution to traditional HID high bay lighting. Field selectable, these luminaires feature ColorQuick and PowerQuick technology allowing a choice of three

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Short Description:

LED UFO HIGHBAY CCT & WATT ADJ

Specification Notes:

Input Current at 120V: 1.69A

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Total Harmonic Distortion:

15%

Wattage Selectable:

Yes

Weight Lb.:

6.42
