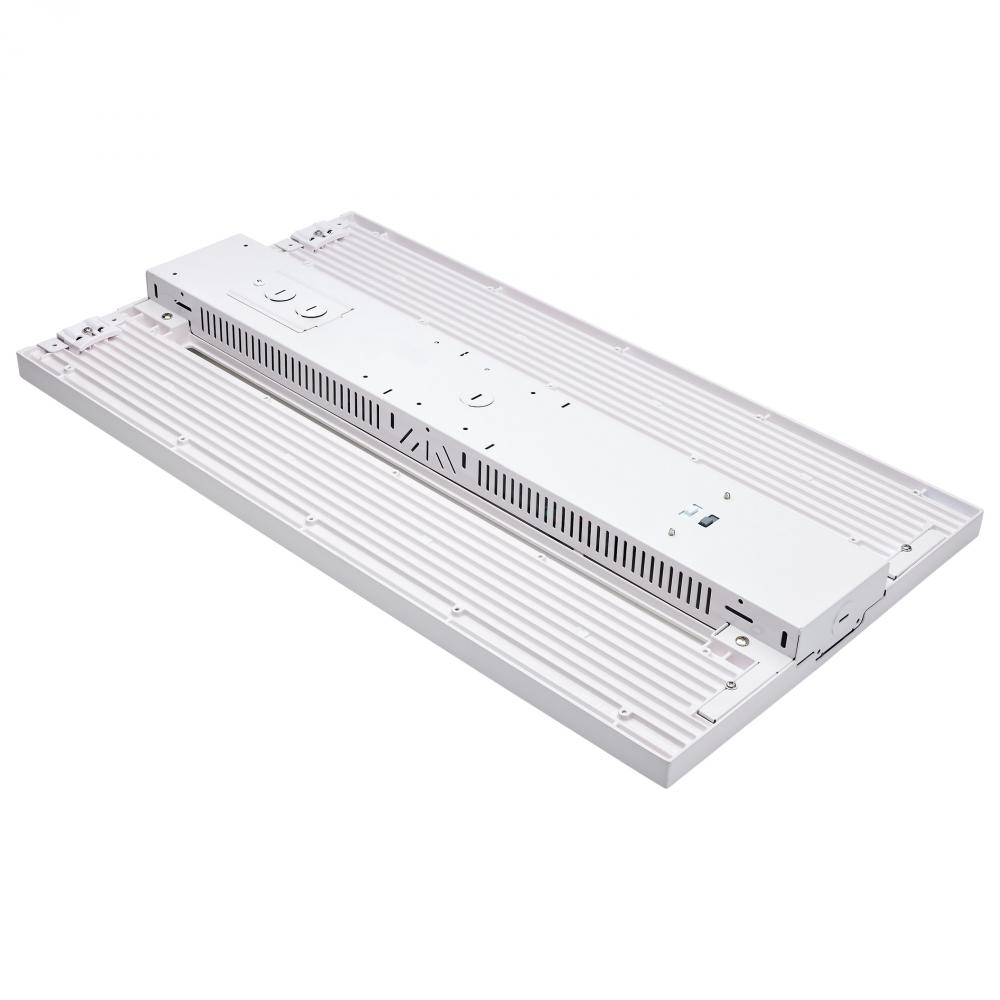

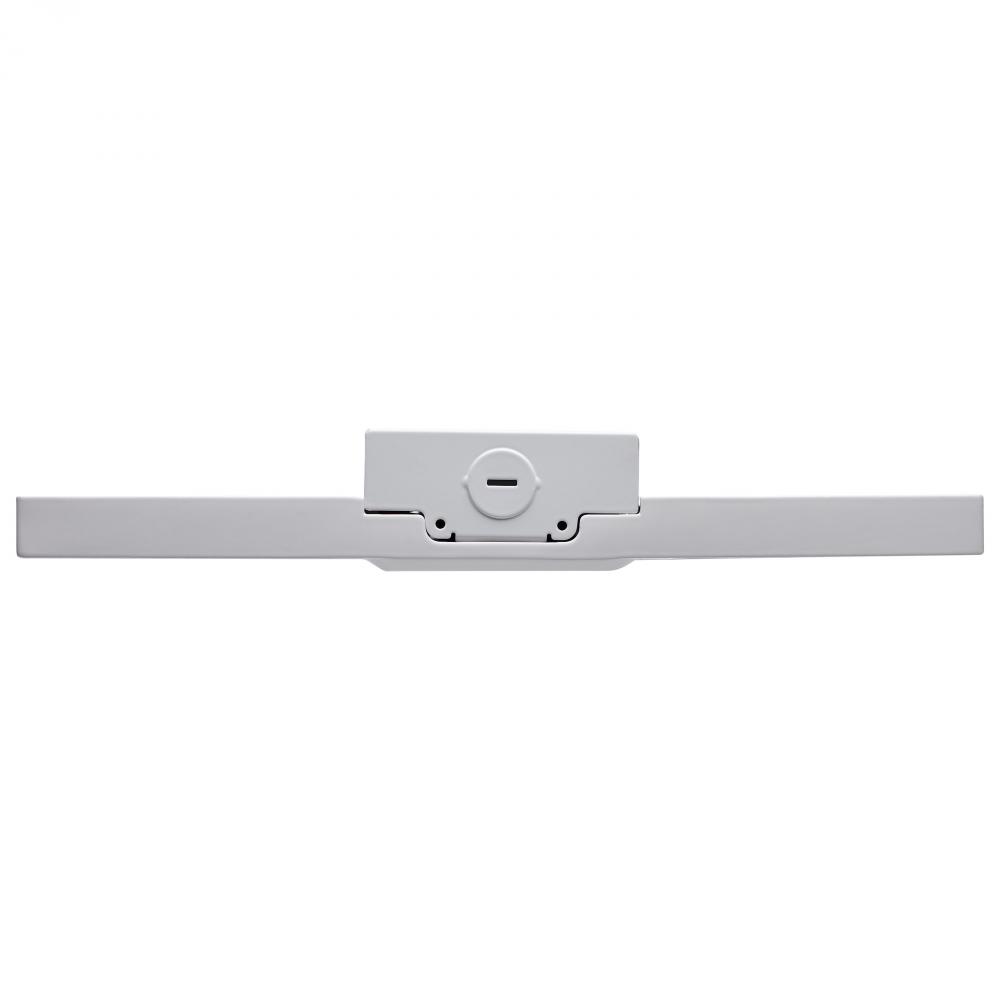

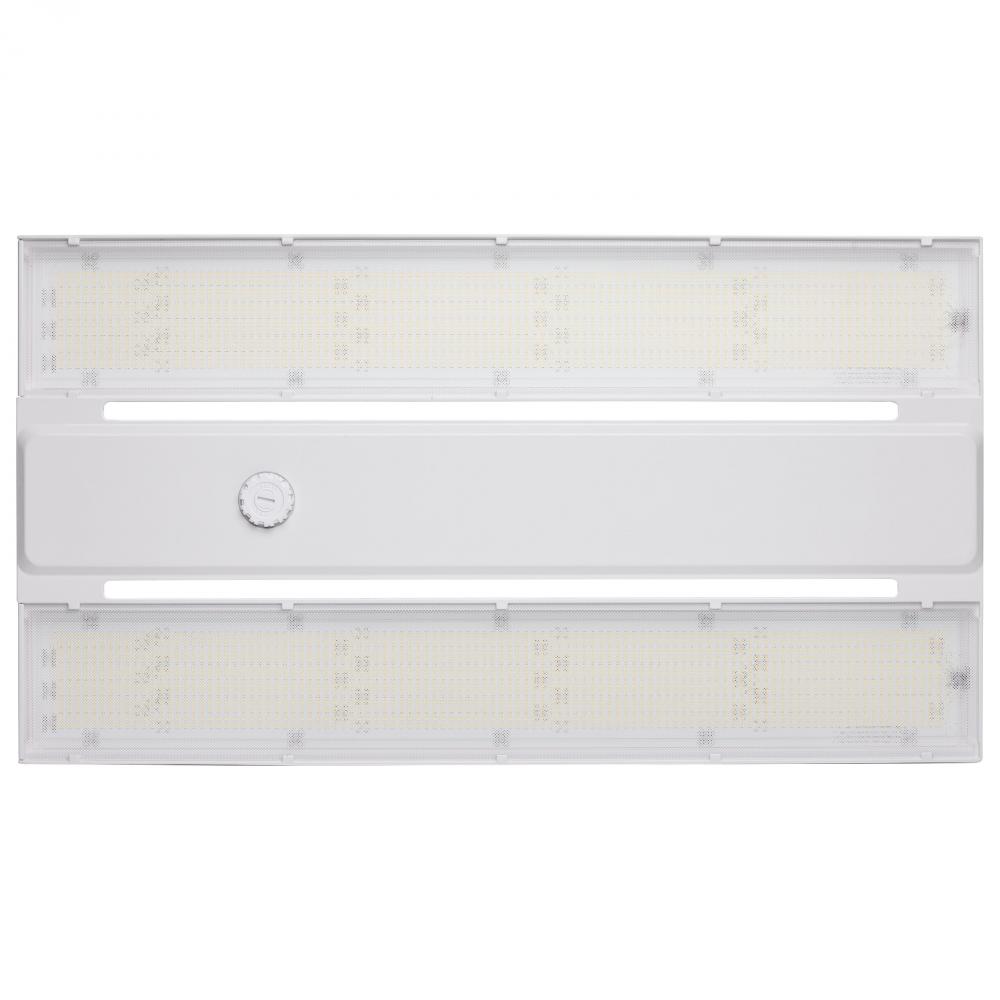

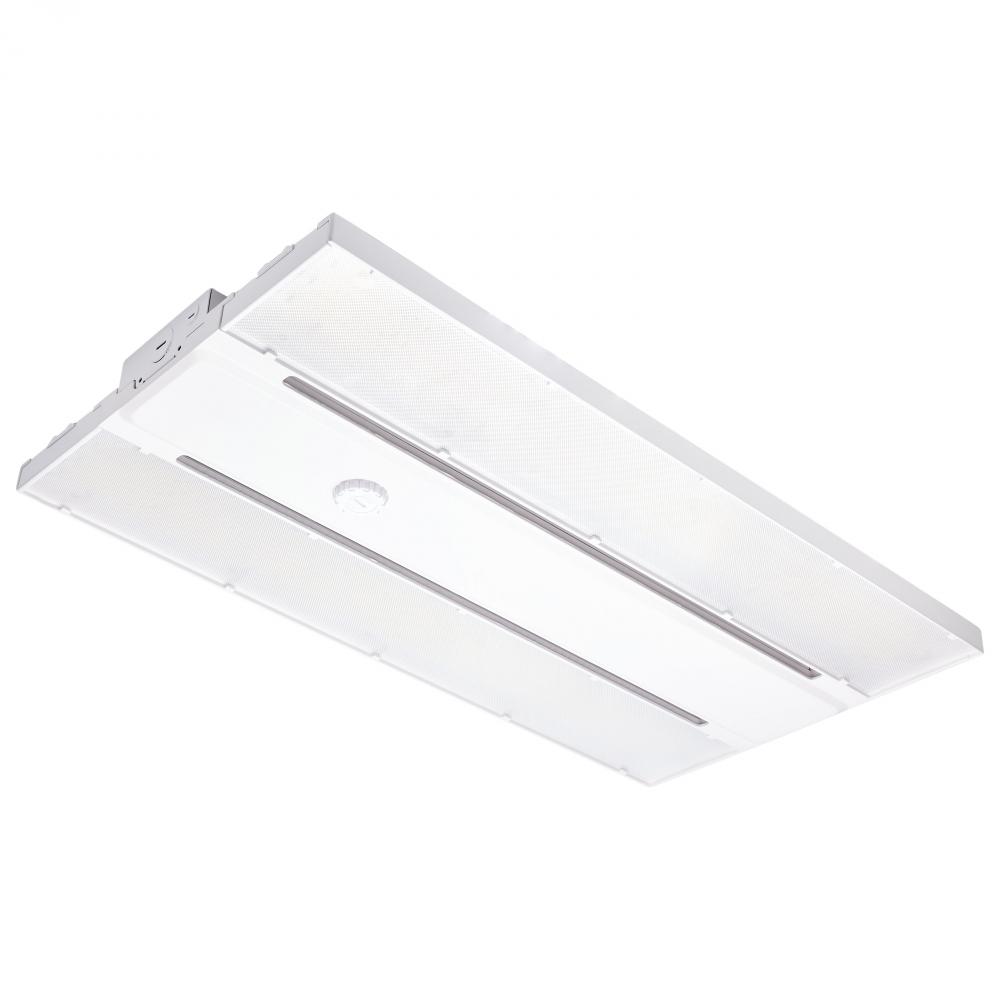

LED Linear High-Bay With Interchangeable Lens; 275W/300W/320W Wattage Selectable; 3K/4K/5K CCT

Part Number: A98DJ / Vendor ID #: 81

LED Linear High-Bay With Interchangeable Lens; 275W/300W/320W Wattage Selectable; 3K/4K/5K CCT

$238.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 45 items available.

Dimensions

Height: 1.77"

Width: 12.60"

Product Overview

LED Linear High-Bay With Interchangeable Lens; 275W/300W/320W Wattage Selectable; 3K/4K/5K CCT Selectable

Standard Information

Category:

Utility

Subcategory:

Other Utility

Option:

LED

Prop 65

Refinement Options

Category:

Hi-Bay

Sub Category:

Linear

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Soft White to Natural Light

Dimmable:

Yes-Dimmable

Each Height:

2.95

Each Length:

23.82

Each Width:

13.39

Length:

23.03

Lumens:

38037L-45598L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Amps:

2.250-0.993/2.500-1.155/2.667-1.155A

ANSI Base:

Integrated

Beam Angle:

90x90

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Vietnam

CRI:

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V Dimming

DLC Classification:

Premium

DLC Primary Use:

High-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

0.5445

Each Quantity:

Efficacy:

138.32/139.39/142.49 LPW

FCC Compliant:

Yes

Feature 1:

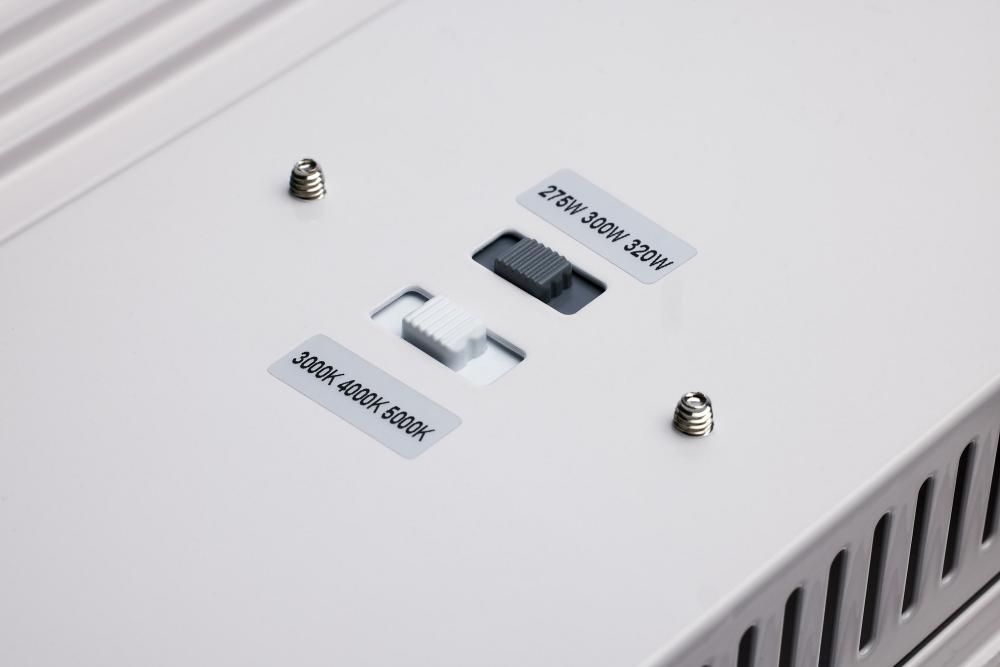

CCT and Wattage Selectable

Feature 2:

Flicker Free Driver

Feature 3:

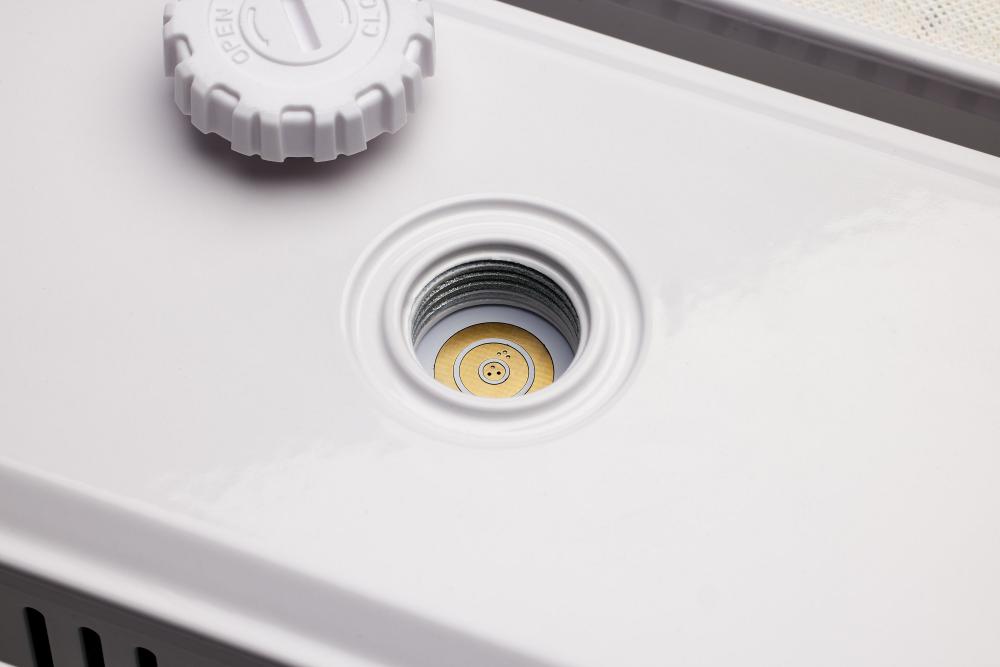

Integrated Sensor Port

Feature 4:

41-inch Suspension Kit Included

Feature 5:

6kV Surge Protection

Feature 6:

5 Year Warranty

Finish Family:

White

Flr Equiv:

545W-760W

Has Driver:

Yes

HID Equiv:

550W

Housing Color:

White

Includes:

41 Inch Suspension Kit

Indoor Outdoor:

Indoor

IP Rating:

IP20

JA8 Compliant:

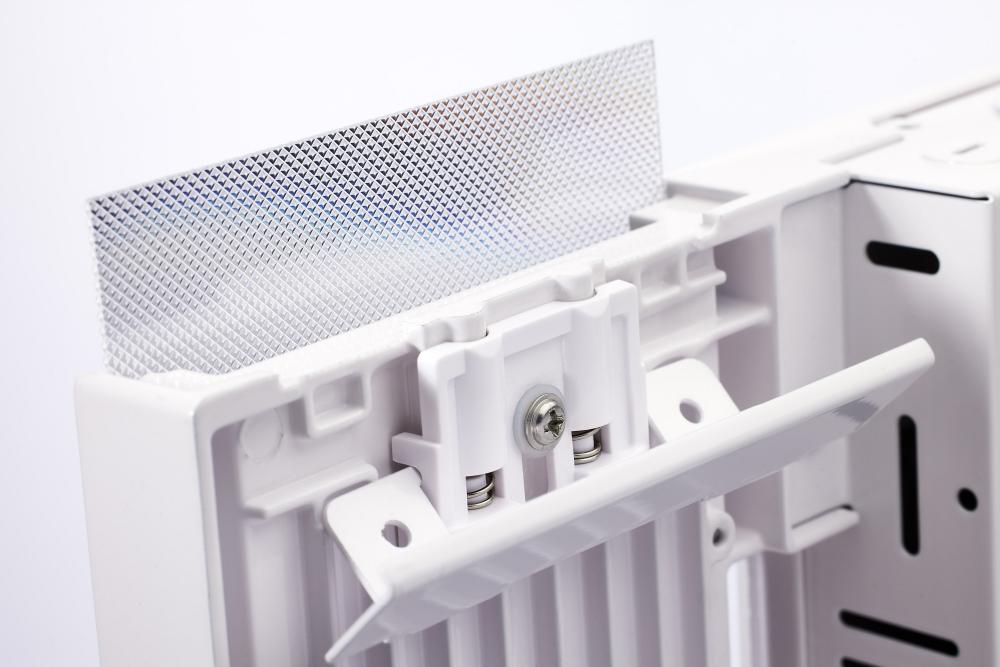

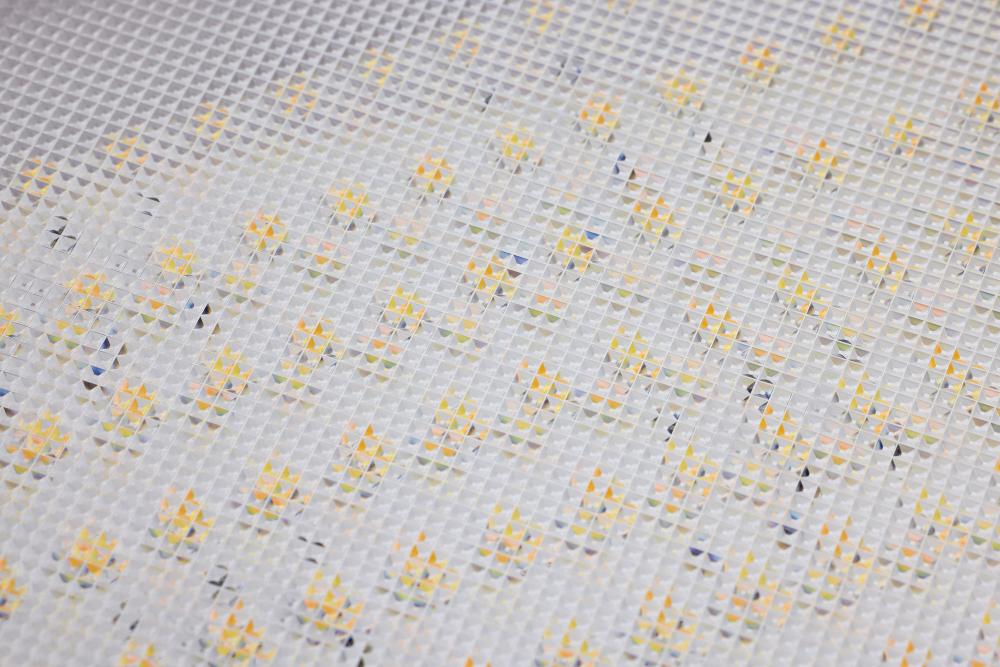

Lens Material:

Polycarbonate (PC)

Long Description:

Introducing SATCO|NUVO's versatile High Bay Fixture, designed for ultimate lighting adaptability. Our field selectable fixture comes with interchangeable optical lenses, offering unparalleled flexibility to meet various lighting requirements. The inclu

Material:

Die-Cast Aluminum

Mounting Procedure:

Surface/Suspension: Mounting Bracket/Cables/Chain

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +55C (+131F)

Pack Type:

Kraft Box

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

Introducing SATCO|NUVO's versatile High Bay Fixtures, designed for ultimate lighting adaptability. Our field selectable fixtures comes with interchangeable optical lenses, offering unparalleled flexibility to meet various lighting requirements. The inc

Safety Listing:

cULus - Certified

Short Description:

LED SELECTABLE LINEAR HIGH BAY

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Weight Lb.:

8.380000000000001
