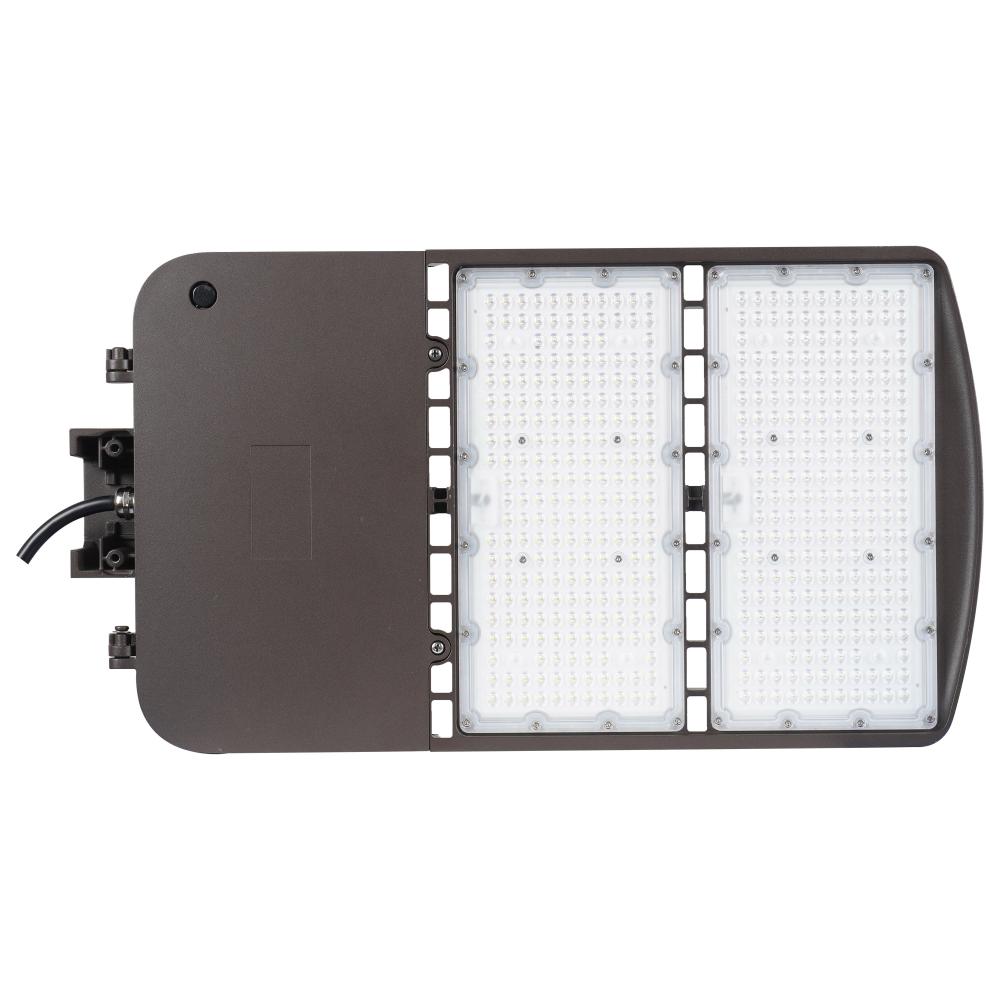

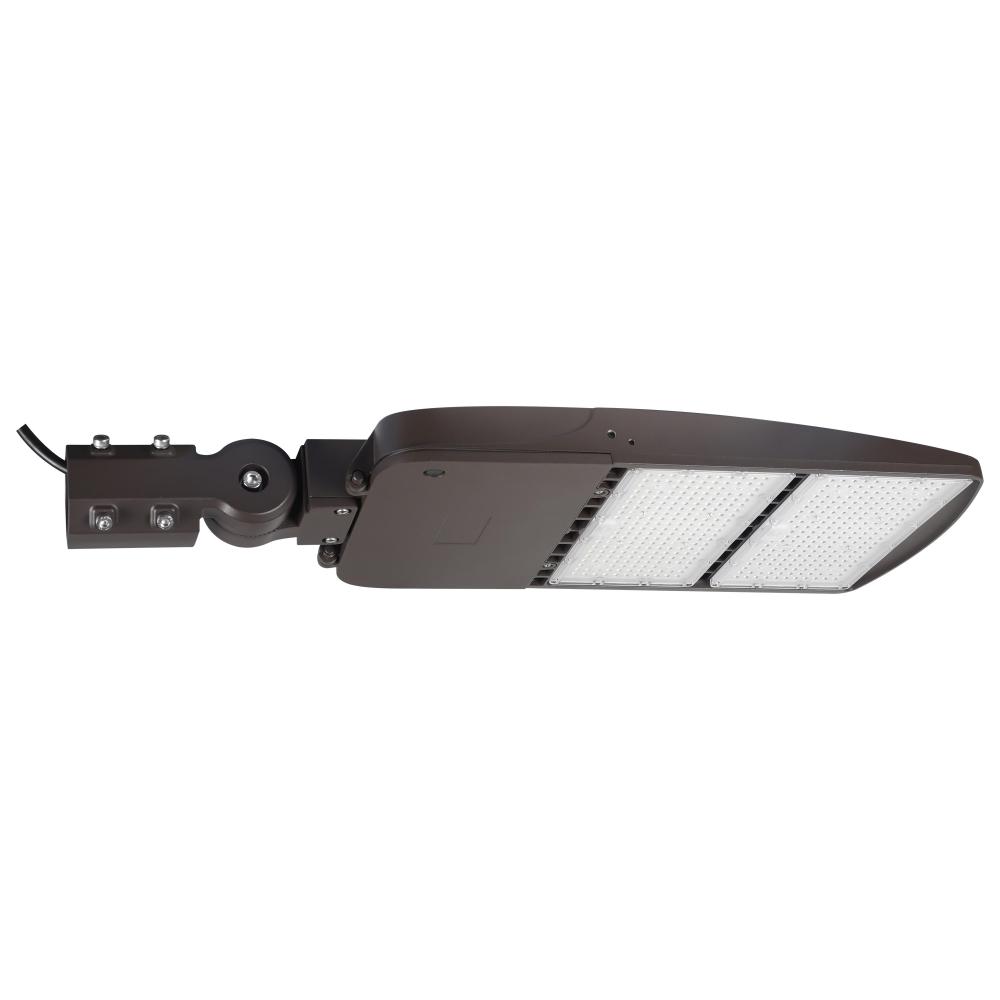

LED Area Light Type III; 300W; Bronze Finish; 4000K; 277-480V

Part Number: A38Z5 / Vendor ID #: 81

LED Area Light Type III; 300W; Bronze Finish; 4000K; 277-480V

$407.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 111 items available.

Dimensions

Height: 3.11"

Width: 12.39"

Product Overview

LED Area Light Type III; 300W; Bronze Finish; 4000K; 277-480V

Standard Information

Category:

Landscape Ltg.

Subcategory:

Path Lights

Finish:

Bronze

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Outdoor

Sub Category:

Area Light

Style:

Utility

Additional Info:

Powder Coated

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Dimmable:

Yes-Dimmable

Each Height:

5.71

Each Length:

32.76

Each Width:

14.37

Length:

30.28

Lumens:

39815L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

1.083-0.625A

ANSI Base:

Integrated

B_U_G_Rating:

B3-U2-G3

CA Prop-65:

Lead

CCT Selectable:

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

Dark Sky Rated:

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming

DLC Classification:

Premium

DLC Primary Use:

Outdoor Pole/Arm-Mounted Area and Roadway Luminaires

Each Cube:

1.5556

Each Quantity:

Efficacy:

132.72 LPW

FCC Compliant:

Yes

Feature 1:

Maintenance free - no bulb to change

Feature 2:

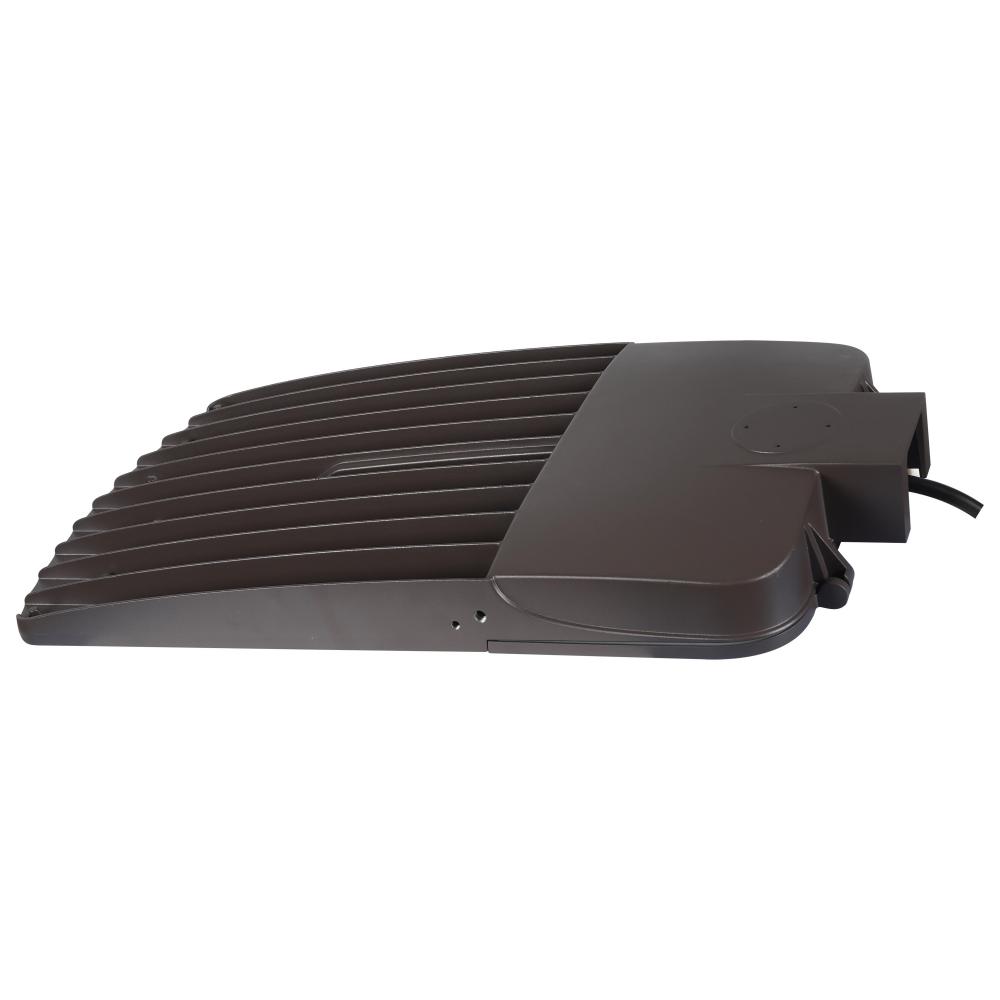

Die-cast Aluminum Body

Feature 3:

UV Stabilized powder coasted bronze finish

Feature 4:

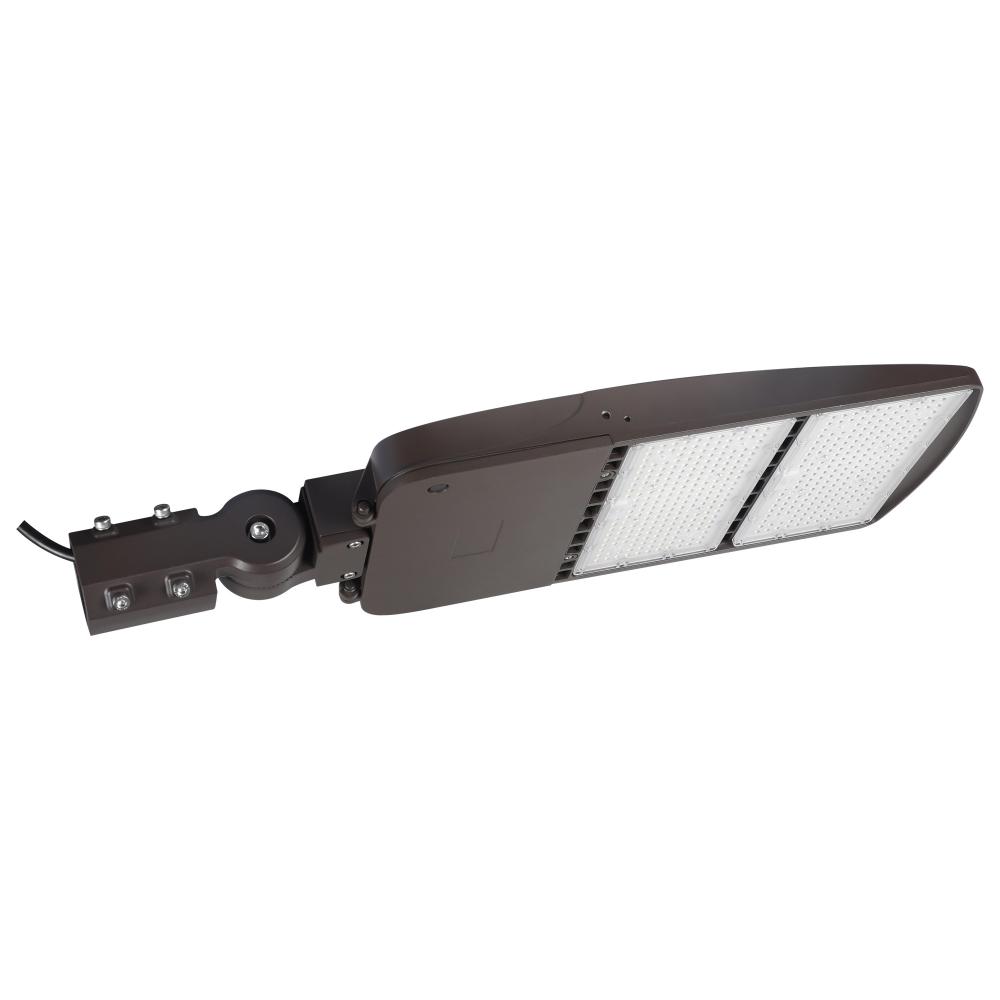

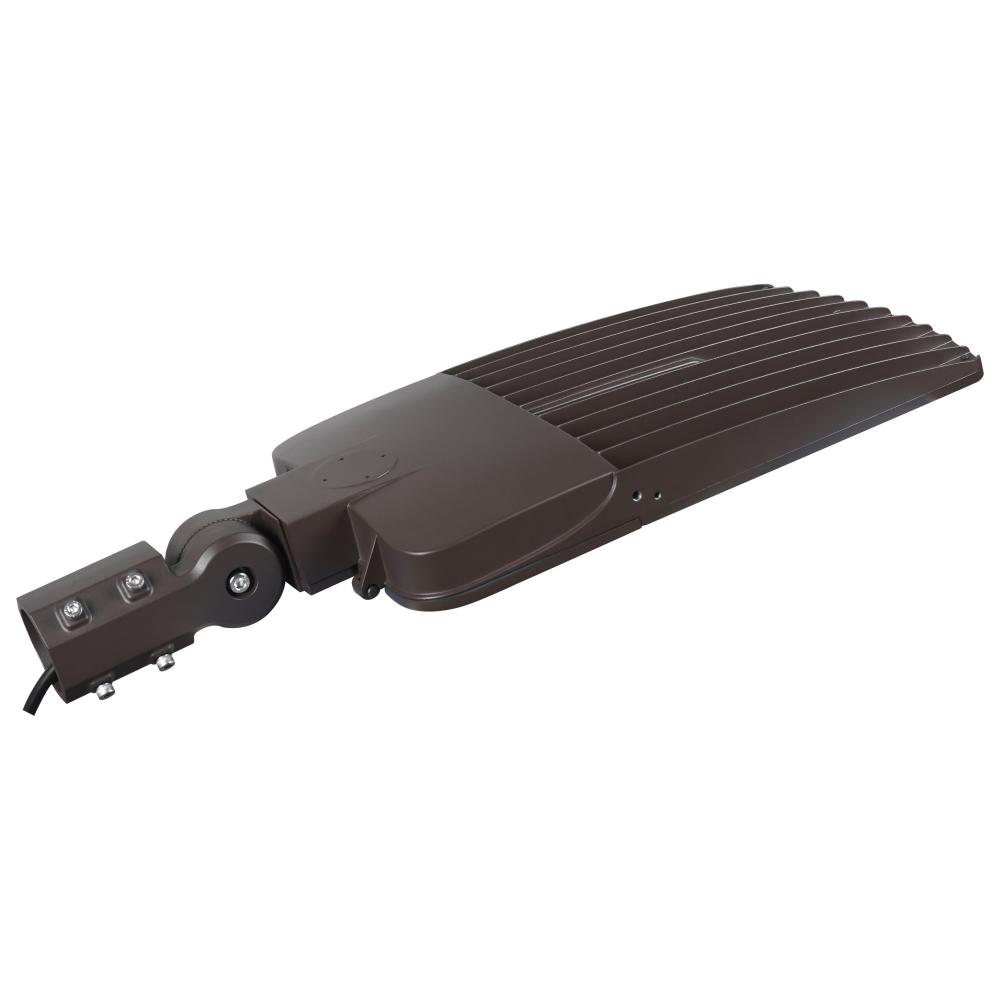

Slip-fitter mount included

Feature 5:

IP65 Rated

Feature 6:

Multiple mounting options available

Feature 7:

Add-on sensors available

Finish Family:

Bronze

HID Equiv:

750W

Impact Rating (IK):

IK10

Incandescent Equivalent:

2500W

Includes:

2-3/8 inch Slip-fitter Mount

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-868 300W LED Area Light Type III provides cool white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built using d

Material:

Die-Cast Aluminum

Mounting Procedure:

Wall/Pipe Arm

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Pack Type:

Box

Photocell:

Optional

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's LED Area Light Type III provides cool white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built using die cast alum

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

300W LED AREA LIGHT TYPE III

Specification Notes:

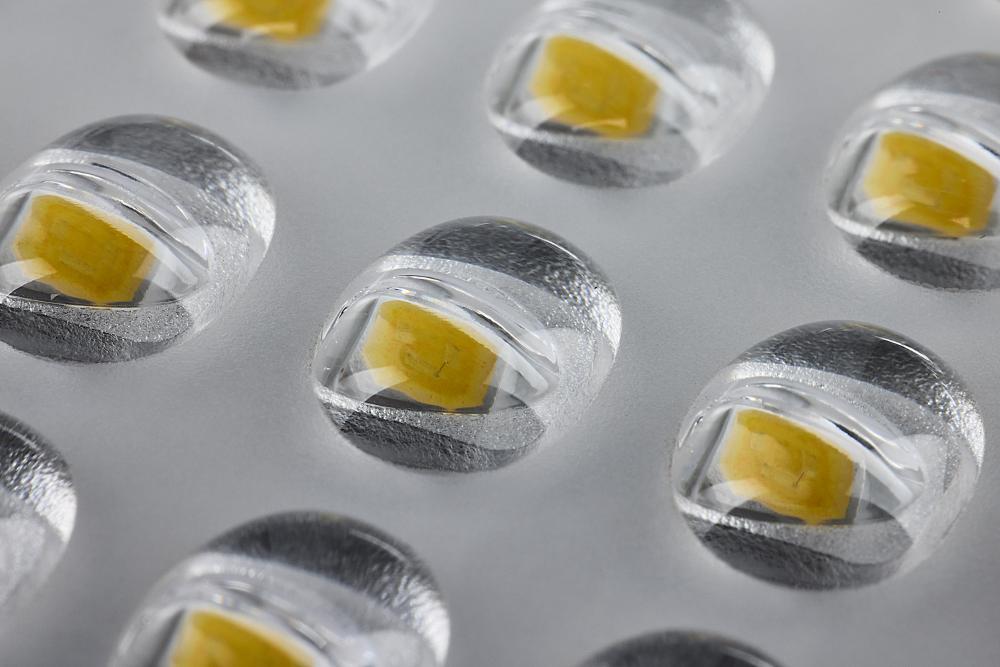

Type III Light Distribution

Temperature (CCT):

4000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

15%

Wattage Selectable:

Weight Lb.:

12.35
