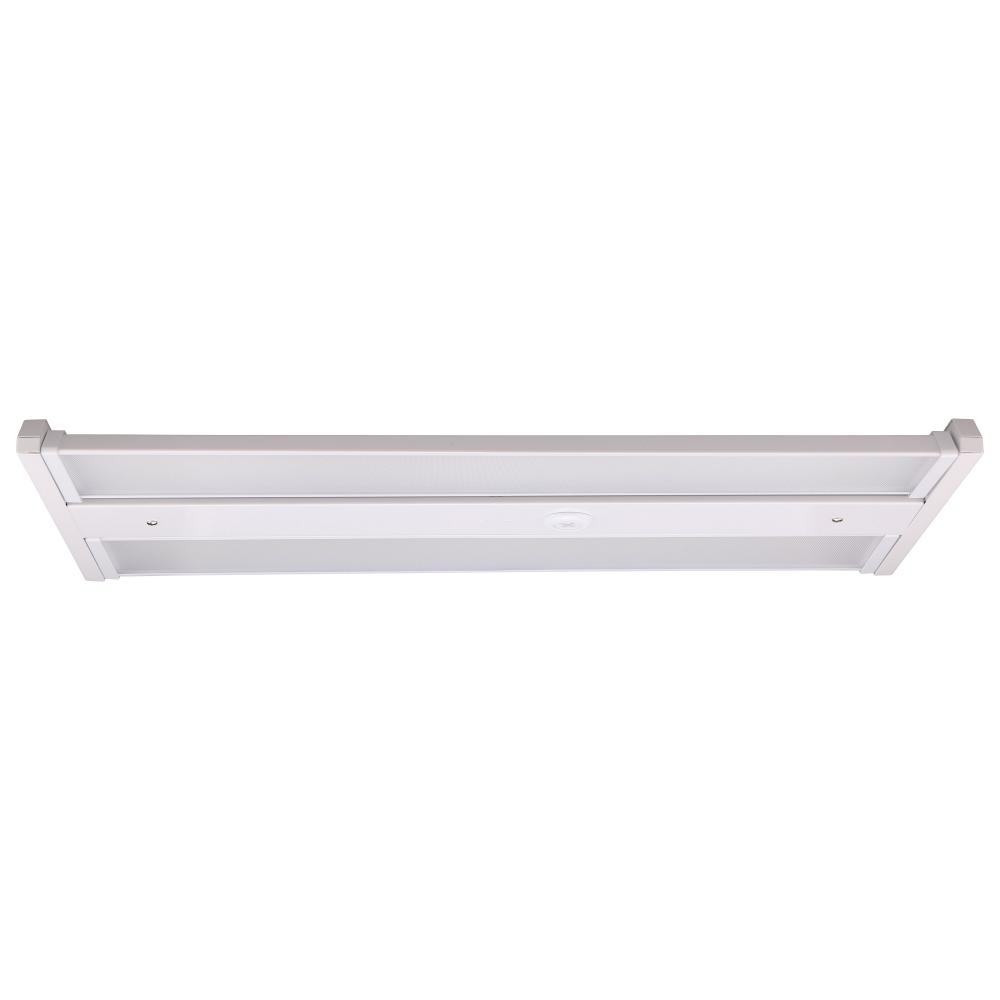

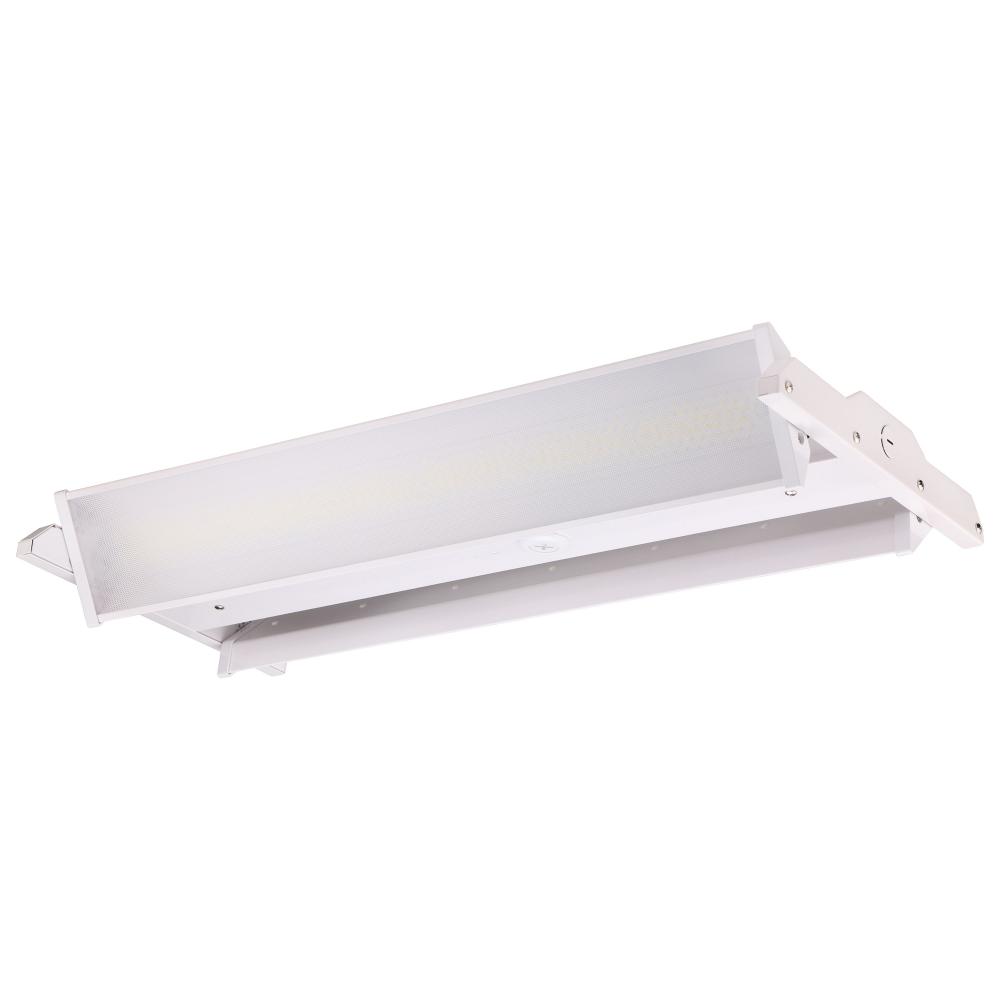

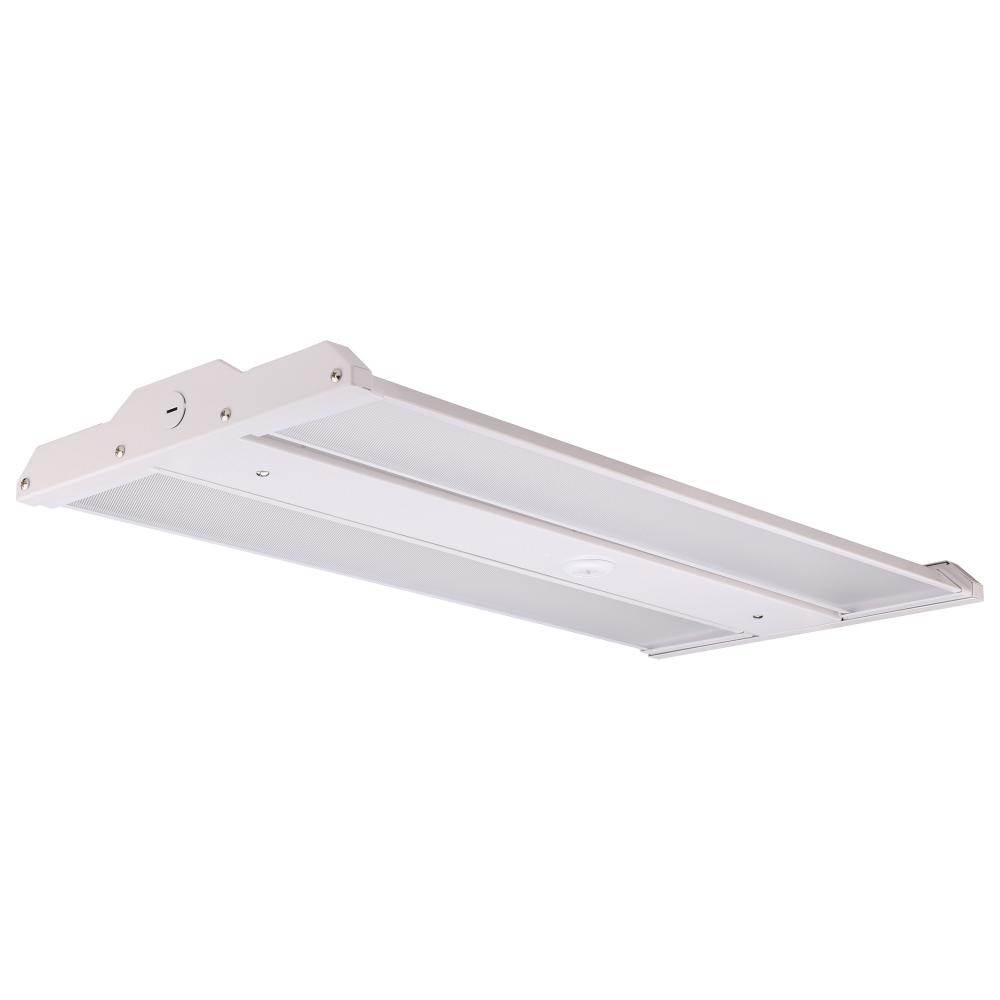

LED Adjustable High bay; 165 Watt; 4000K; Integrated Sensor Port; 120-277 Volt

Part Number: A37YG / Vendor ID #: 81

LED Adjustable High bay; 165 Watt; 4000K; Integrated Sensor Port; 120-277 Volt

$274.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 606 items available.

Dimensions

Height: 1.88"

Width: 12.00"

Product Overview

LED Adjustable High bay; 165 Watt; 4000K; Integrated Sensor Port; 120-277 Volt

Standard Information

Category:

Track Ltg.

Subcategory:

Linear Track

Finish:

White

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Hi-Bay

Sub Category:

Linear

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Dimmable:

Yes-Dimmable

Each Height:

4.72

Each Length:

30.12

Each Width:

15.16

Length:

Lumens:

22756L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Wire Length:

5.91

Amps:

1.375-0.596A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

100

CA Prop-65:

Lead

CCT Selectable:

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

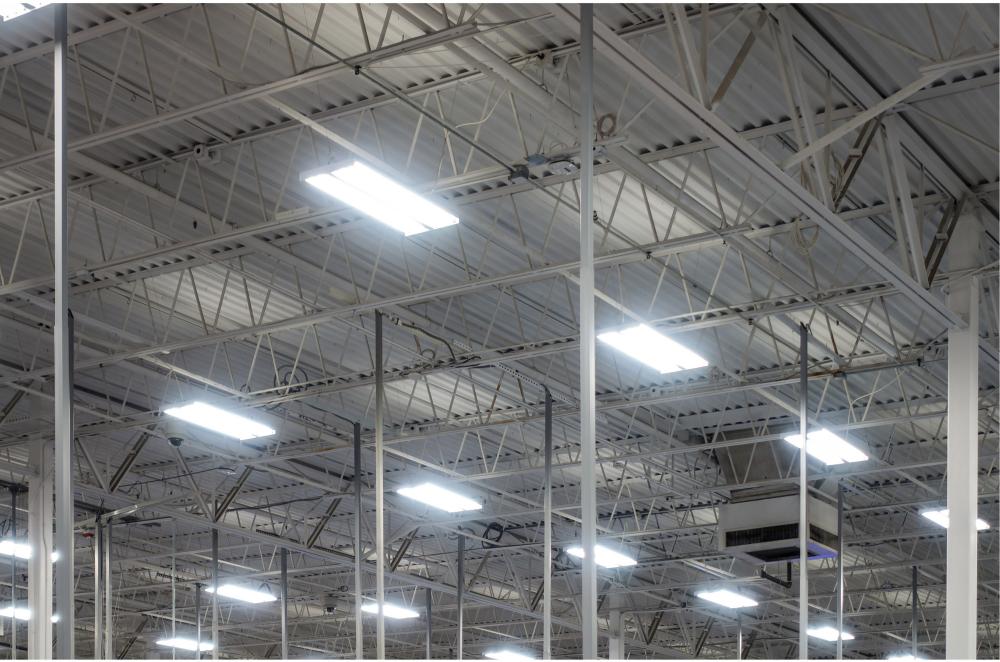

High-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

1.2472

Each Quantity:

Efficacy:

137.92 LPW

FCC Compliant:

Yes

Feature 1:

Length: 26.00 inches, Width: 12.00 inches, Height: 1.88 inches

Feature 2:

Damp location rated for indoor use

Feature 3:

White Finish

Feature 4:

Integrated Sensor Port

Feature 5:

4000K Cool White Light

Feature 6:

Rated for 50,000 hours

Feature 7:

Dimmable

Feature 8:

5 year limited warranty

Feature 9:

22756 lumens

Finish Family:

White

Fixture shape:

Rectangle

IC Rated:

Yes

Incandescent Equivalent:

300W

Indoor Outdoor:

Indoor

IOT Enabled:

IP Rating:

IP40

JA8 Compliant:

Lens Finish:

Frost

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-645R1 165 watt high bay LED fixture is a rugged lighting solution for commercial applications. Illuminate work areas and retail spaces with this durable, adjustable fixture. This dimmable fixture is sleek, functional, and delivers 50,00

Material:

Aluminum Alloy

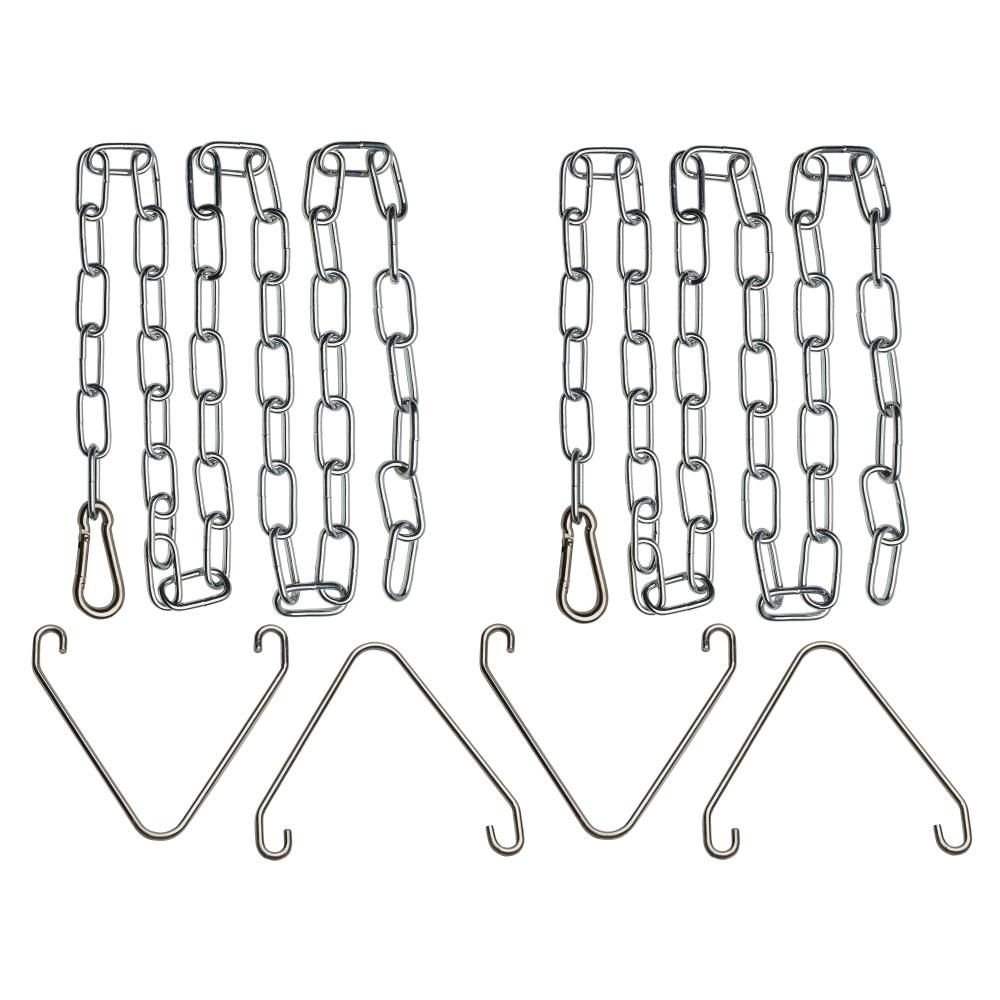

Mounting Procedure:

Ceiling

Operating Frequency:

50-60Hz

Operating Temp:

-40C (-40F) to +50C (+122F)

Pack Type:

Box

Photocell:

Multiple Optional Sensors Available

Power Factor:

0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's 165 watt high bay LED fixture is a rugged lighting solution for commercial applications. Illuminate work areas and retail spaces with this durable, adjustable fixture. This dimmable fixture is sleek, functional, and delivers 50,000 hours o

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Short Description:

165W LED ADJUSTABLE HIGH BAY

Temperature (CCT):

4000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

15%

Wattage Selectable:

Weight Lb.:

9.039999999999999

Wire Quantity:

Wire Temp Rating:

105C (221F)
