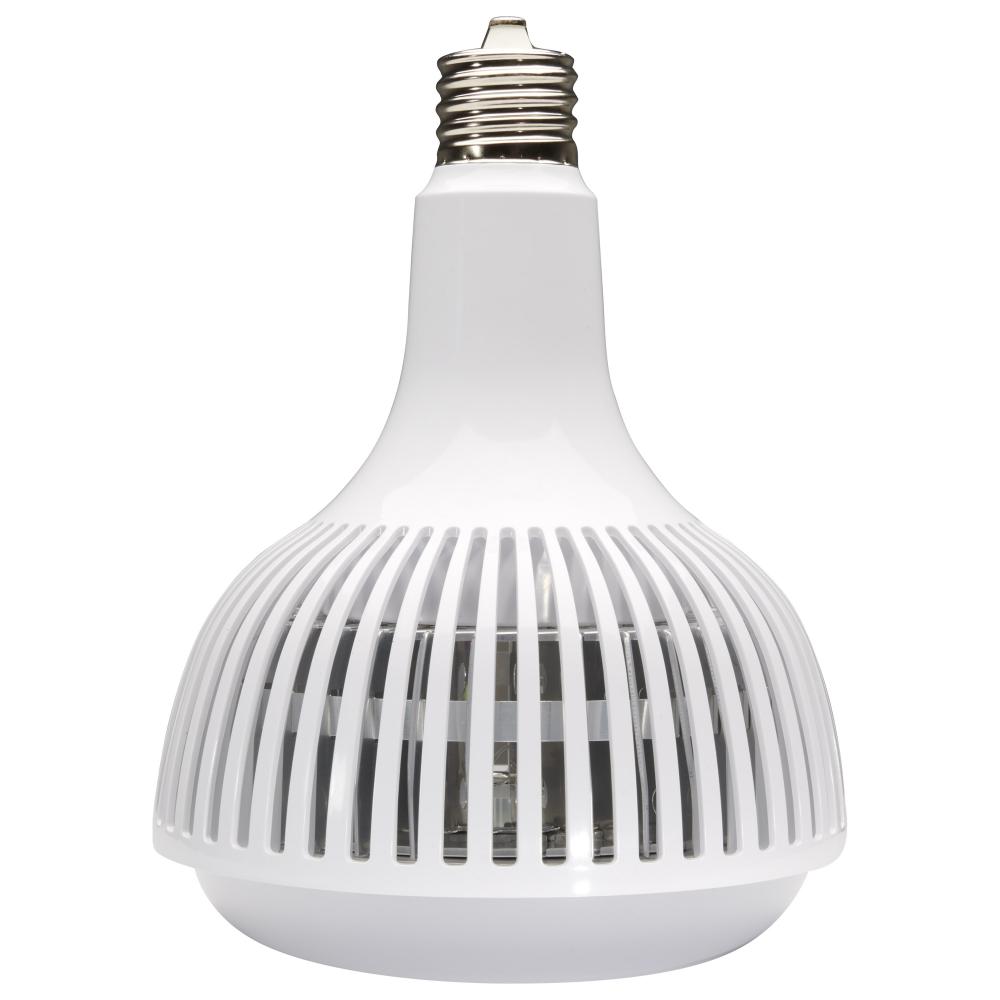

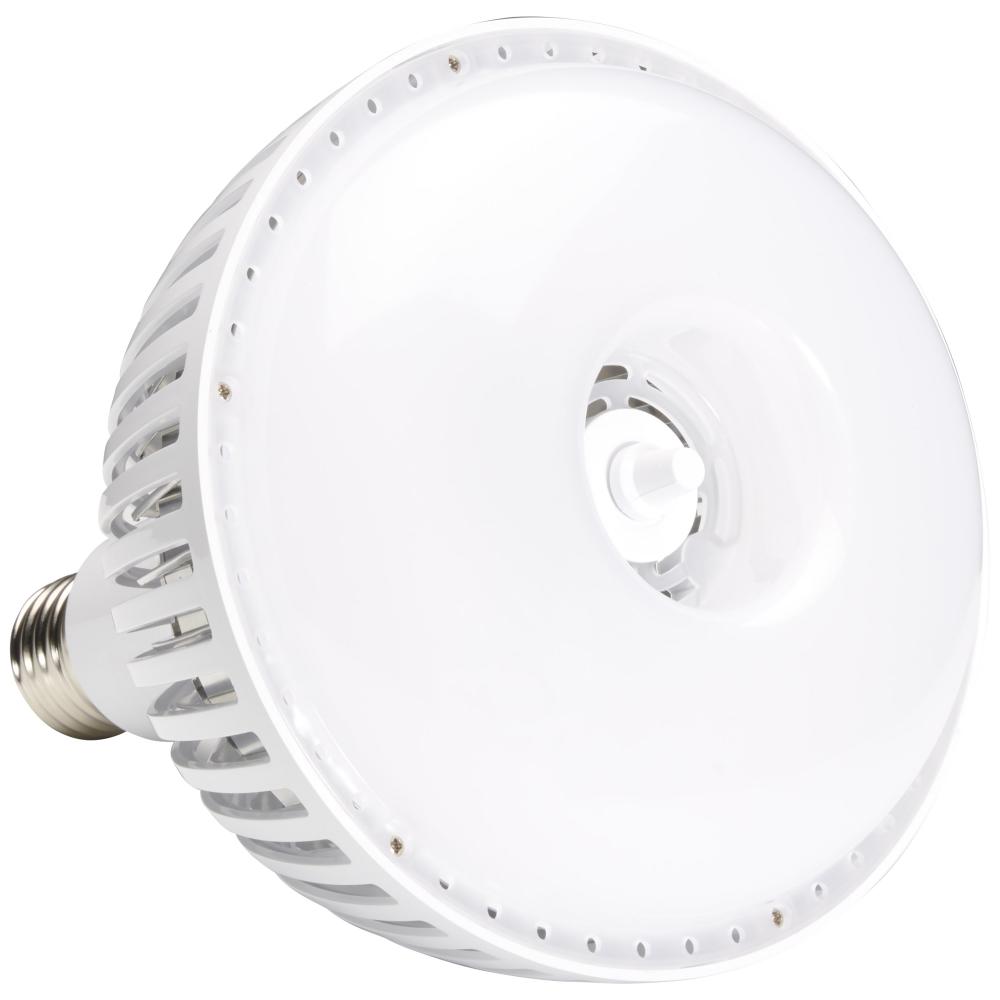

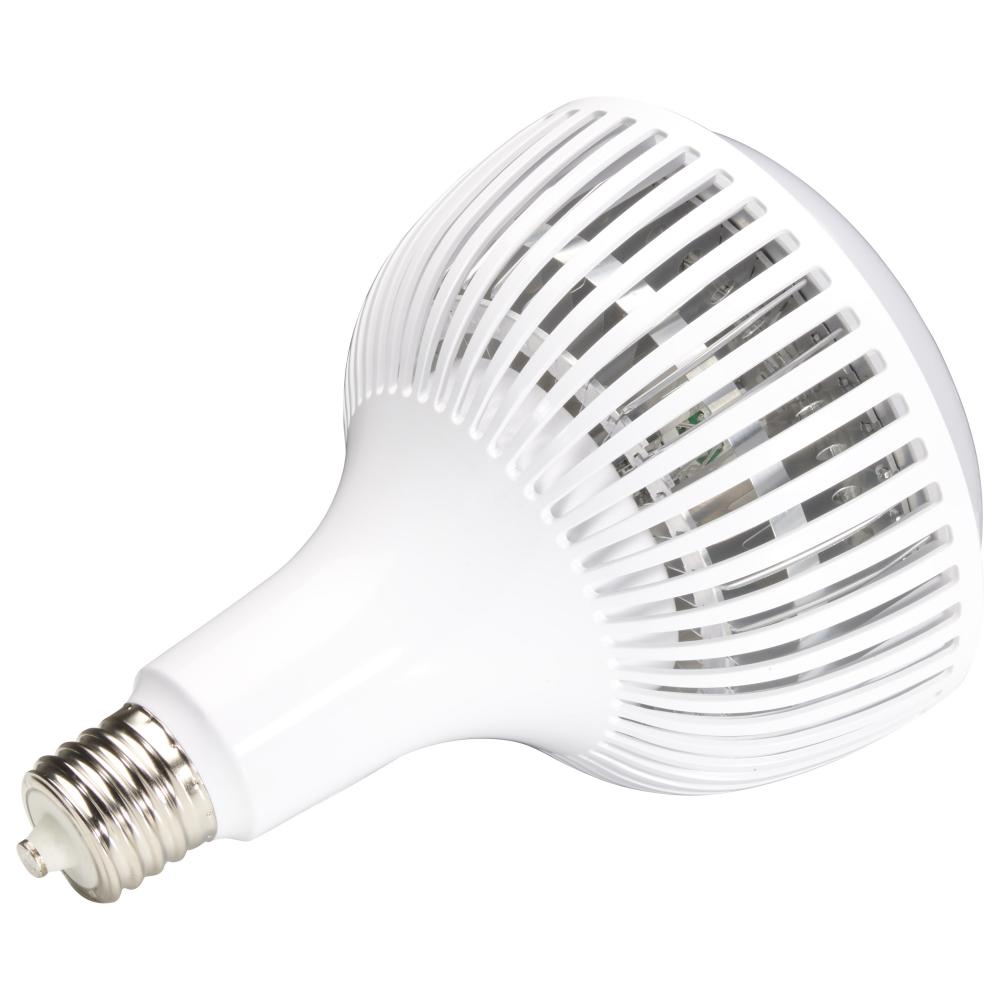

80 Watt - LED HID Replacement; 4000K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt;

Part Number: LNQ5H / Vendor ID #: 27

80 Watt - LED HID Replacement; 4000K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt;

$82.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 232 items available.This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.

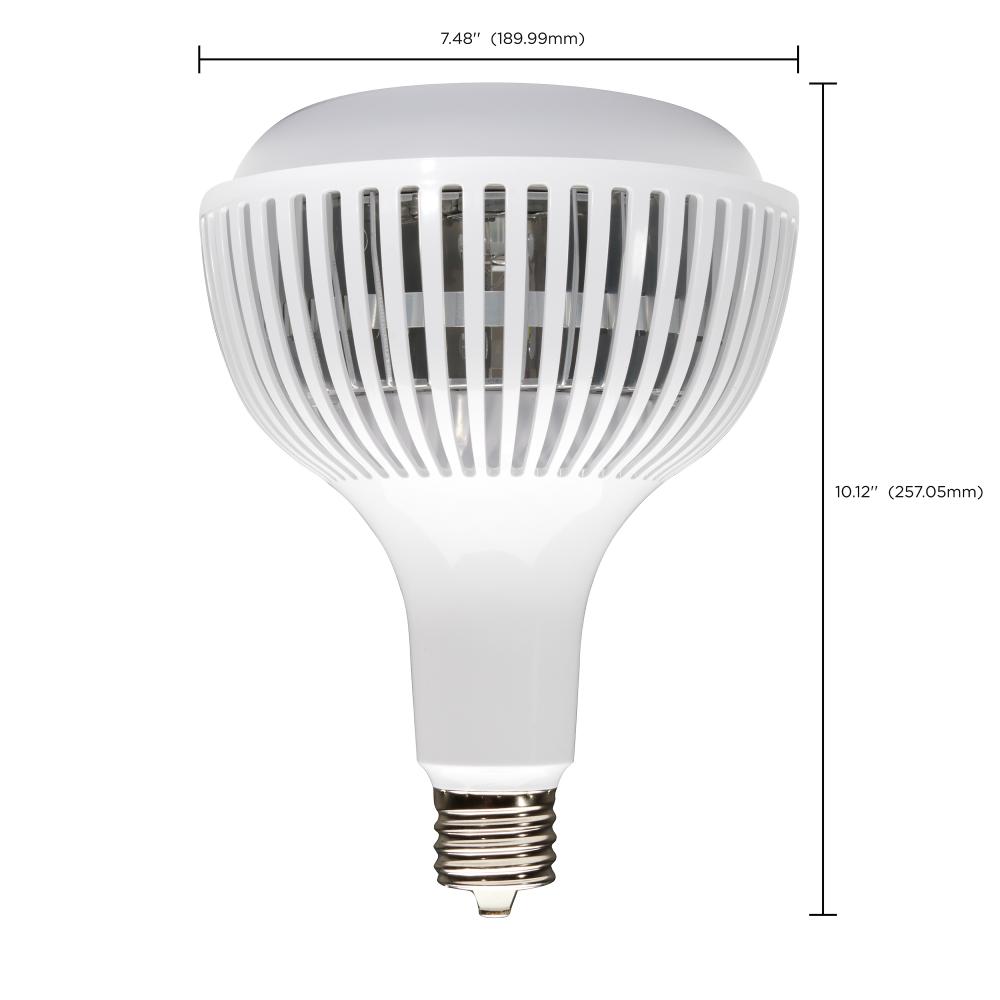

Dimensions

Width: 7.48"

Product Overview

80 Watt - LED HID Replacement; 4000K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt; Dimmable

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Lumens:

3300+

Kelvin:

3501-4000

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

35000

Bulb Kelvin:

4000K

Bulb Shape:

HB60

Diameter:

7.48

EA Length:

7.48

Harmonized Codes:

8539.50.0091

Length:

10.12

Lumens:

10000L

Shap Carton Width:

7.48

Ship Carton Height:

10.43

Ship Weight:

2.2

Warranty:

3 Year Limited

Weight:

1.76

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

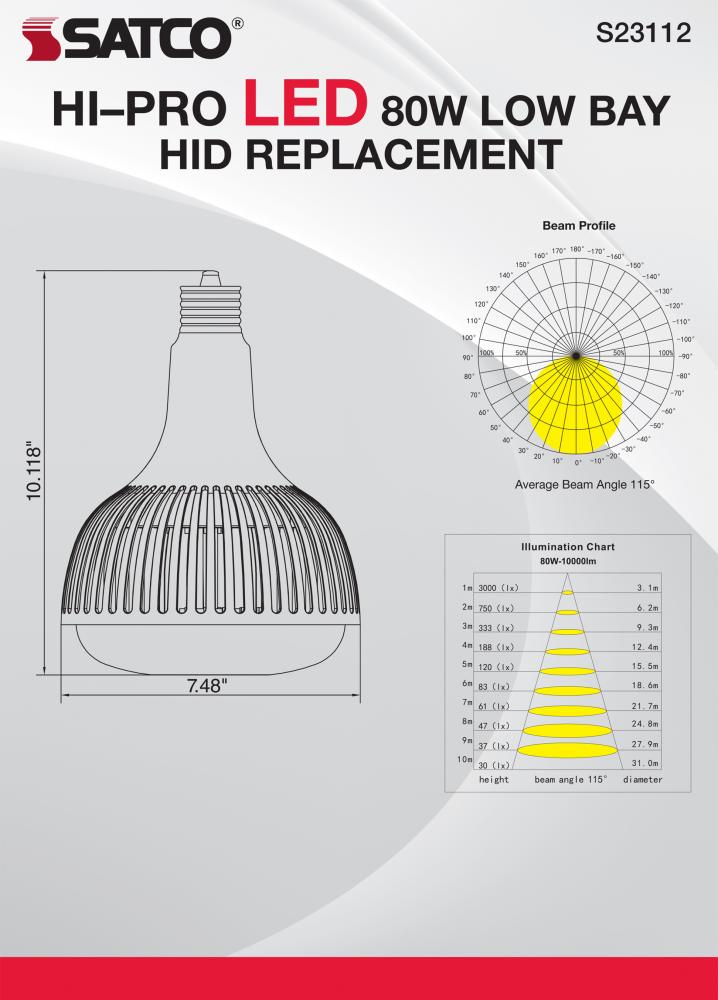

Beam Spread:

115

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

Translucent White

Burning Position:

Universal

Candle Power:

3000

Carton Cubic Feet:

0.3377

Cartons Per Unit:

CCT Selectable:

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Cool White

Country Of Origin:

China

CRI:

Dimmable Function:

Dimmable only via the built-in dimmer on the lamp. Not dimmable via wall switch

Dimming Type:

Step Dimming

DLC Approved:

Efficacy:

125.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

Replaces 250-watt HID Technology

Feature 2:

Long neck options fits most fixtures.

Feature 3:

Advanced passive heat dissipation

Feature 4:

Wide, 115 degree beam spread

Feature 5:

Light weight

Feature 6:

Damp location rated

Feature 7:

Dimmable with built-in dimmer only

Feature 8:

6kV built-in surge protection

Feature 9:

Rated for Use in Enclosed Fixtures

HID Equivalent:

250W

Housing Color:

White

Incandescent Equivalent:

400W

Indoor Outdoor:

Indoor

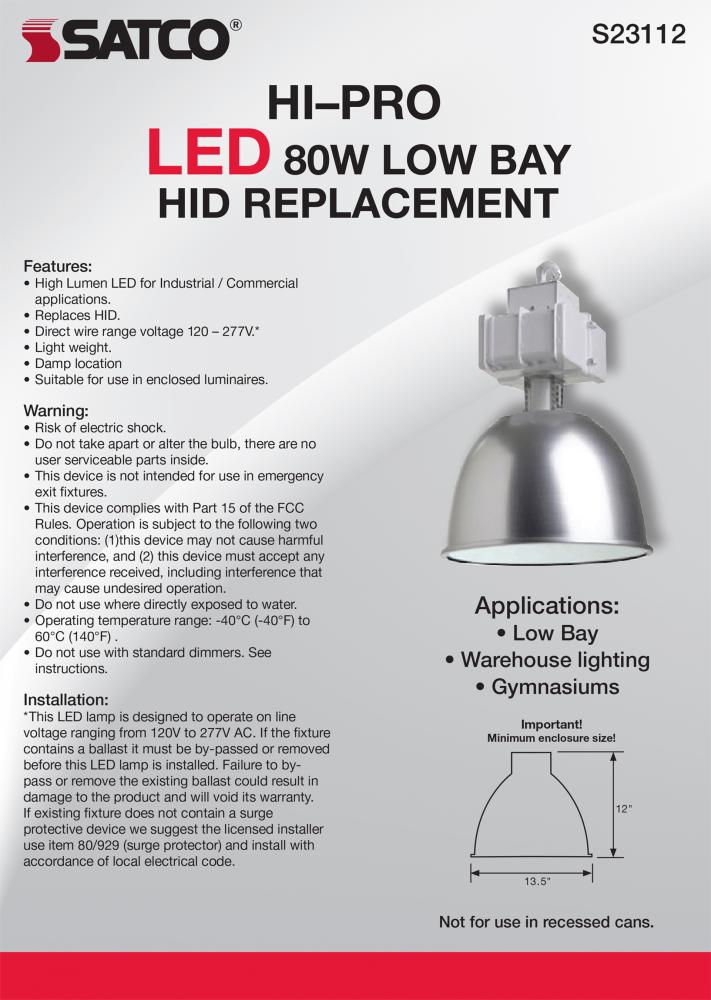

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

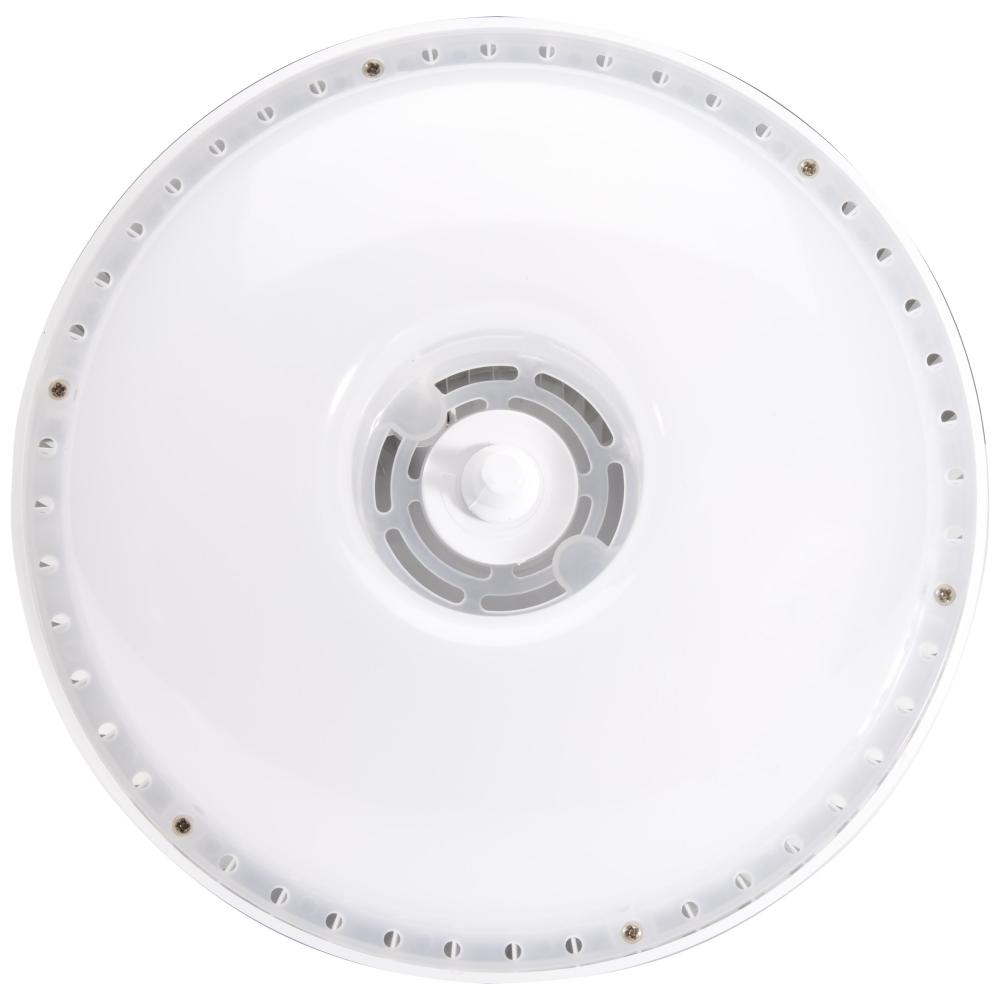

Lens:

Yes

Lens Material:

Plastic

Location Rating:

Damp

Long Description:

Satco's update of our popular high bay/low bay LED lamps means improved performance on every level including, built-in dimming. The shape of the new S23112, lends itself to virtually every fixture, and the heat dissipation feature means a cooler runnin

Material:

Aluminum

Minimum Compartment Size:

Length: 13.5 in. Width: 13.5 in. Height: 12 in.

Operating Frequency:

50-60Hz

Operating Temp:

-40C (-40F) to +60C (+140F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

0.98/0.92

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

Satco's update of our popular high bay/low bay LED lamps means improved performance on every level including, built-in dimming. The shape lends itself to virtually every fixture, and the heat dissipation feature means a cooler running, longer lasting l

SDS class:

LED_Lamp

Sensor Occupancy or Vacancy:

Sensor Operation:

Single Pole

Short Description:

80W/LED/HID-HB/4K/120-277V

Specification Notes:

Fixture has a built-in dimming control feature

Style:

Contemporary

Surge Protection:

Built-in surge protection - 6KV

Technology:

LED

Title 20 Compliant:

Title 24 Compliant:

Wattage Selectable:

Watts:

80W
