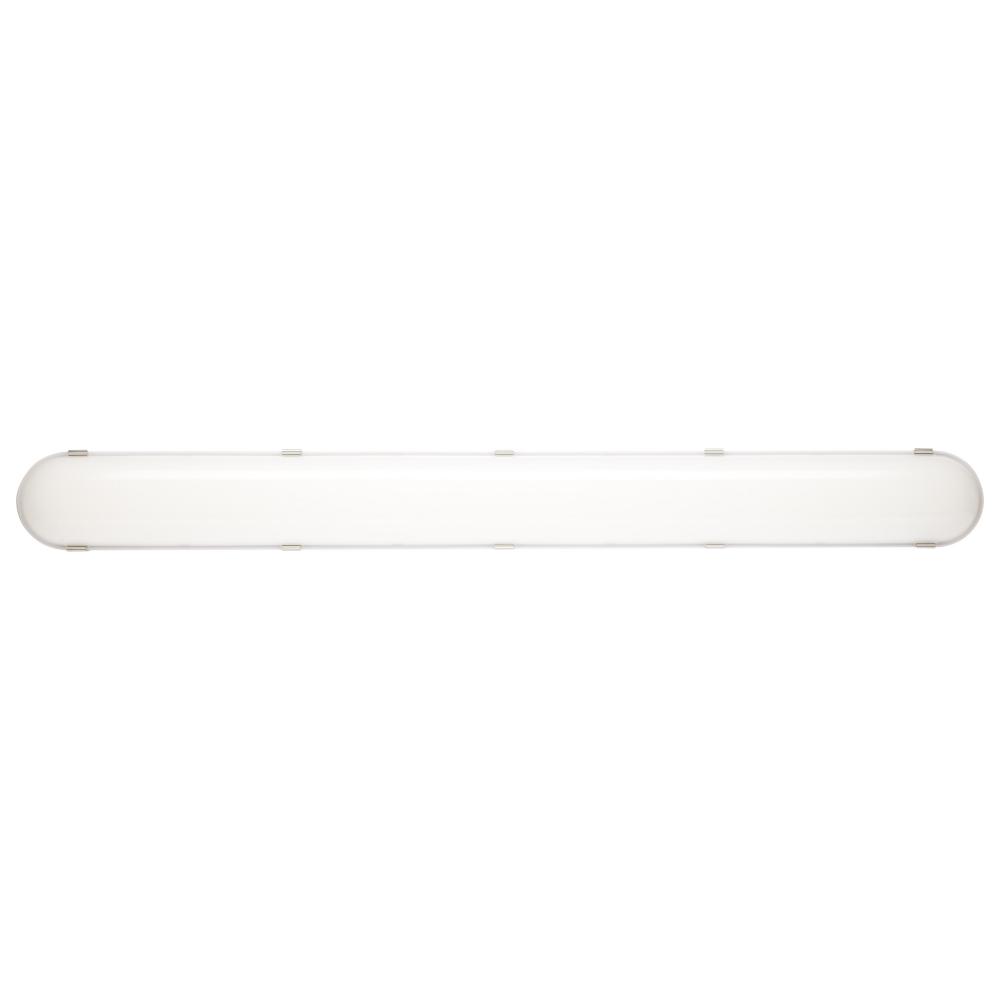

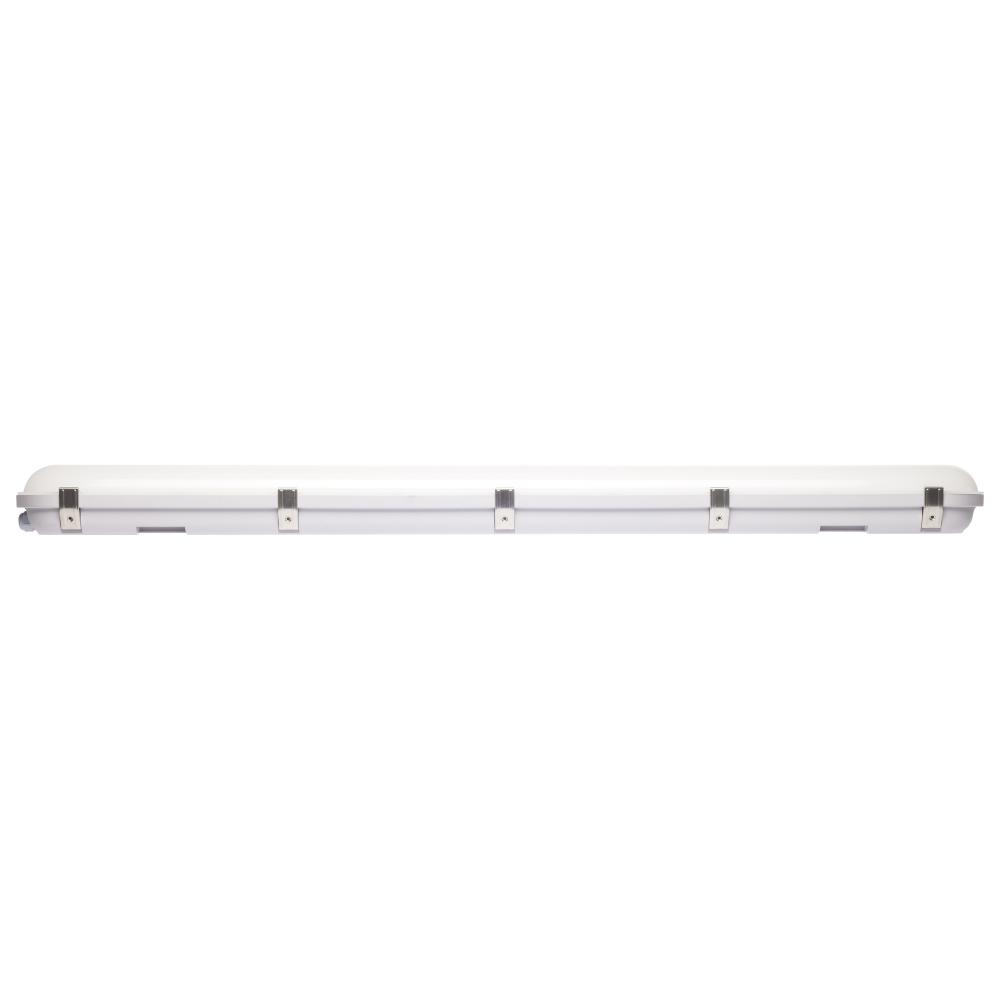

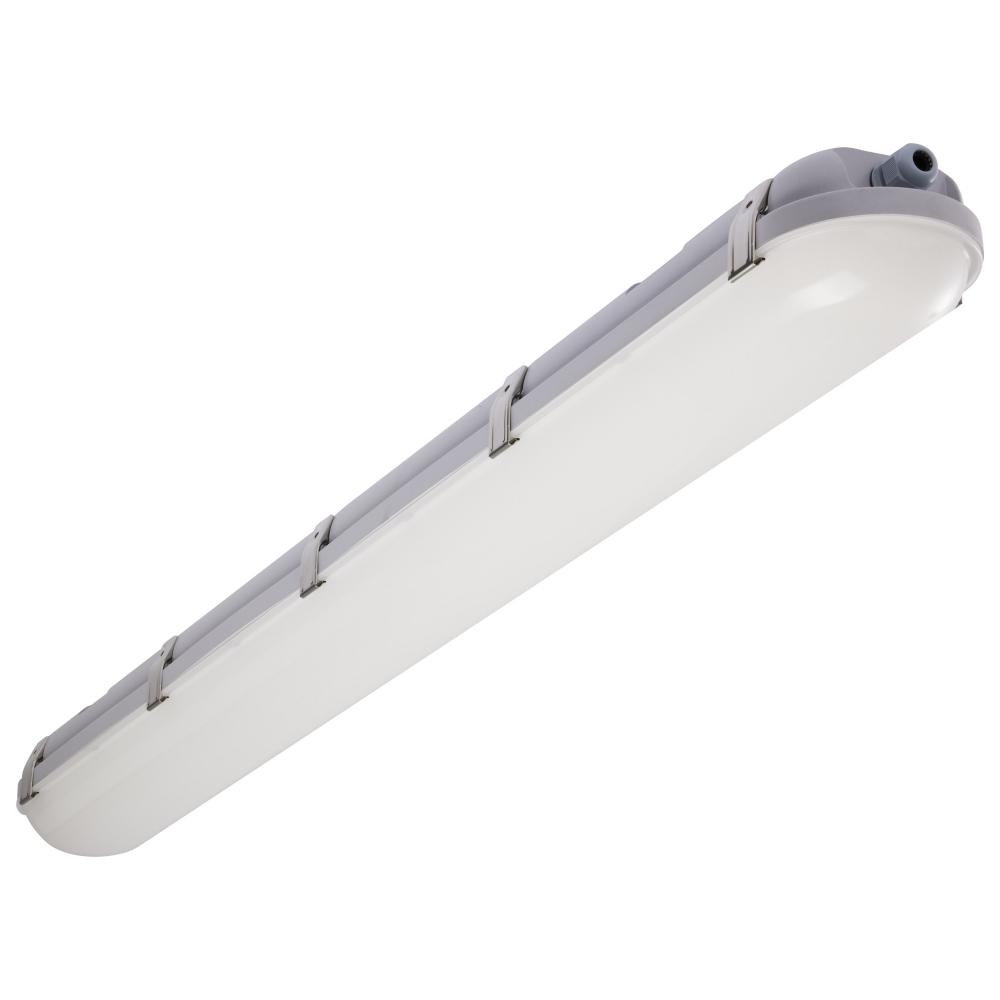

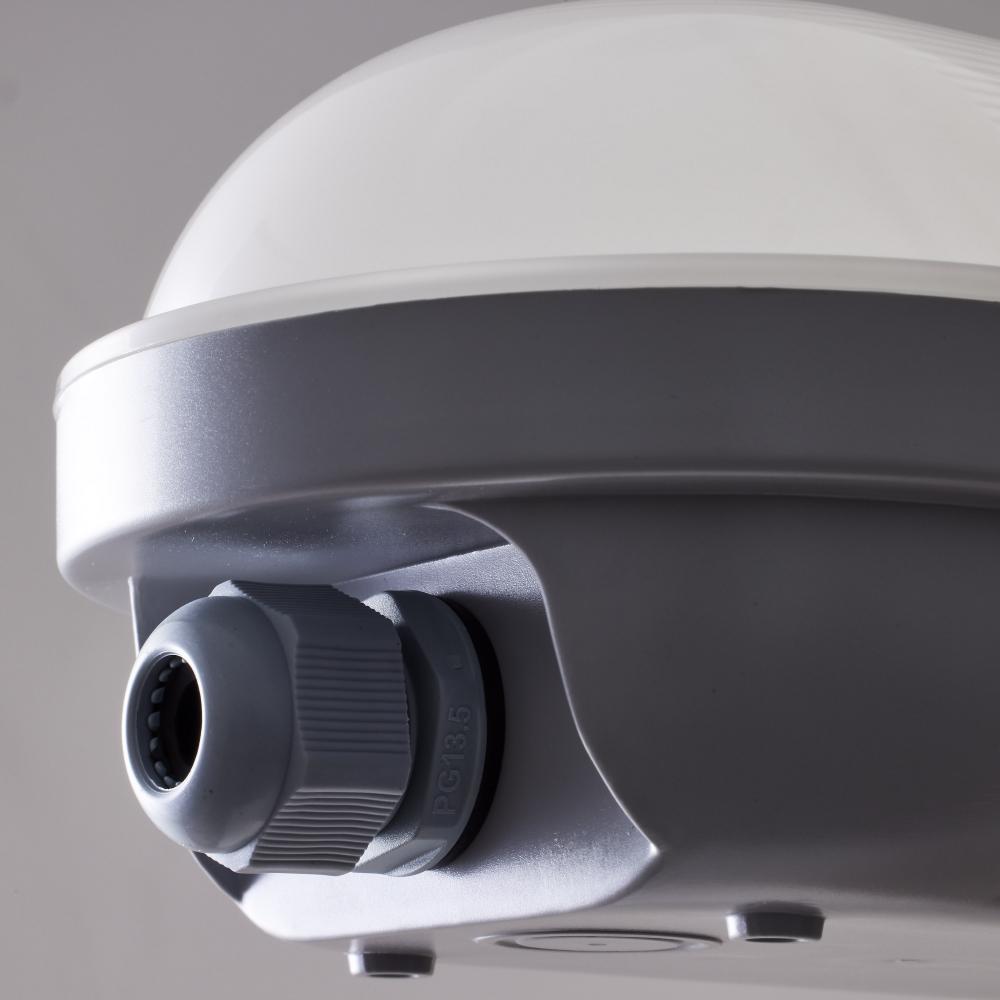

4 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming;

Part Number: A67Q2 / Vendor ID #: 81

4 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming;

$154.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1941 items available.

Dimensions

Height: 3.46"

Width: 4.92"

Product Overview

4 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V

Standard Information

Category:

Utility

Subcategory:

Other Utility

Finish:

Gray

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Linear

Sub Category:

Vapor Proof

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

3.94

Each Length:

49.61

Each Width:

5.71

Length:

47.24

Lumens:

5360L-7991L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.333-0.115/0.417-0.144/0.500-0.173A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

China

CRI:

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming

DLC Classification:

Standard; Standard

DLC Primary Use:

Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

0.6459

Each Quantity:

Efficacy:

134.00/133.51/133.18 LPW

FCC Compliant:

Yes

Feature 1:

120-347 Voltage - FOR USE IN CANADA

Feature 2:

Heat and tamper resistant, water-resistant and dust-proof. Can be used in food-processing facilities

Feature 3:

IP65 and IK08 Rated

Feature 4:

CCT and Wattage Selectable

Feature 5:

2KV built-in Surge Protection

Feature 6:

Non-corrosive (PC) polycarbonate housing

Feature 7:

0-10V Dimmable

Feature 8:

5 year warranty

Feature 9:

Suspension kit (sold separately)

Finish Family:

Gray

Fixture shape:

Linear

Flicker Free:

Has Driver:

Yes

HID Equiv:

125W-150W

Impact Rating (IK):

IK08

Incandescent Equivalent:

300W-400W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

Lens Finish:

Opaque

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-821R1 wattage selectable, 4 foot vapor proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this dimmable fixture is CCT and wattage selectable and wet location rated, with 2KV

Material:

Plastic

Mounting Procedure:

Ceiling/Wall

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Pack Type:

Box

Power Factor:

>0.96

Quantity In Pack:

Rated For Vapor Tight Fixture:

Yes

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

4' LINEAR VAPOR PROOF

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

17.60%

Wattage Selectable:

Yes

Weight Lb.:

5.07
