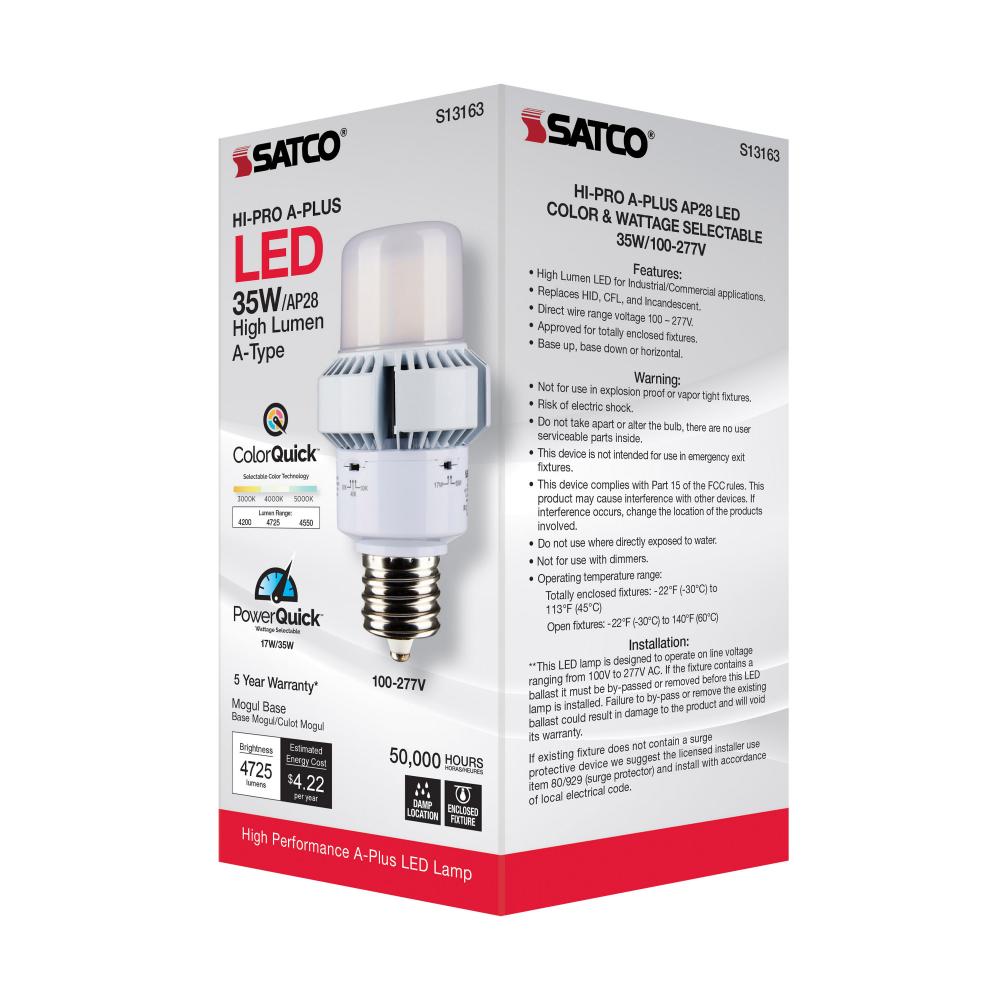

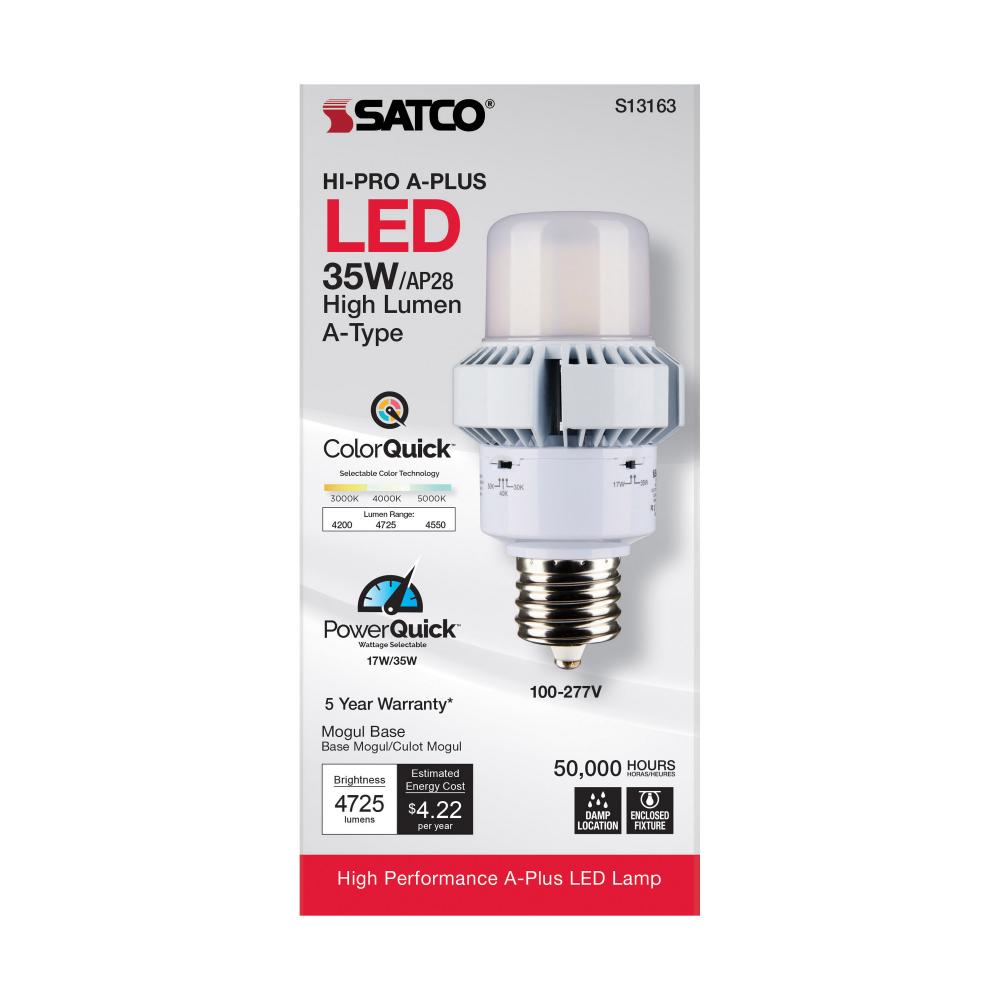

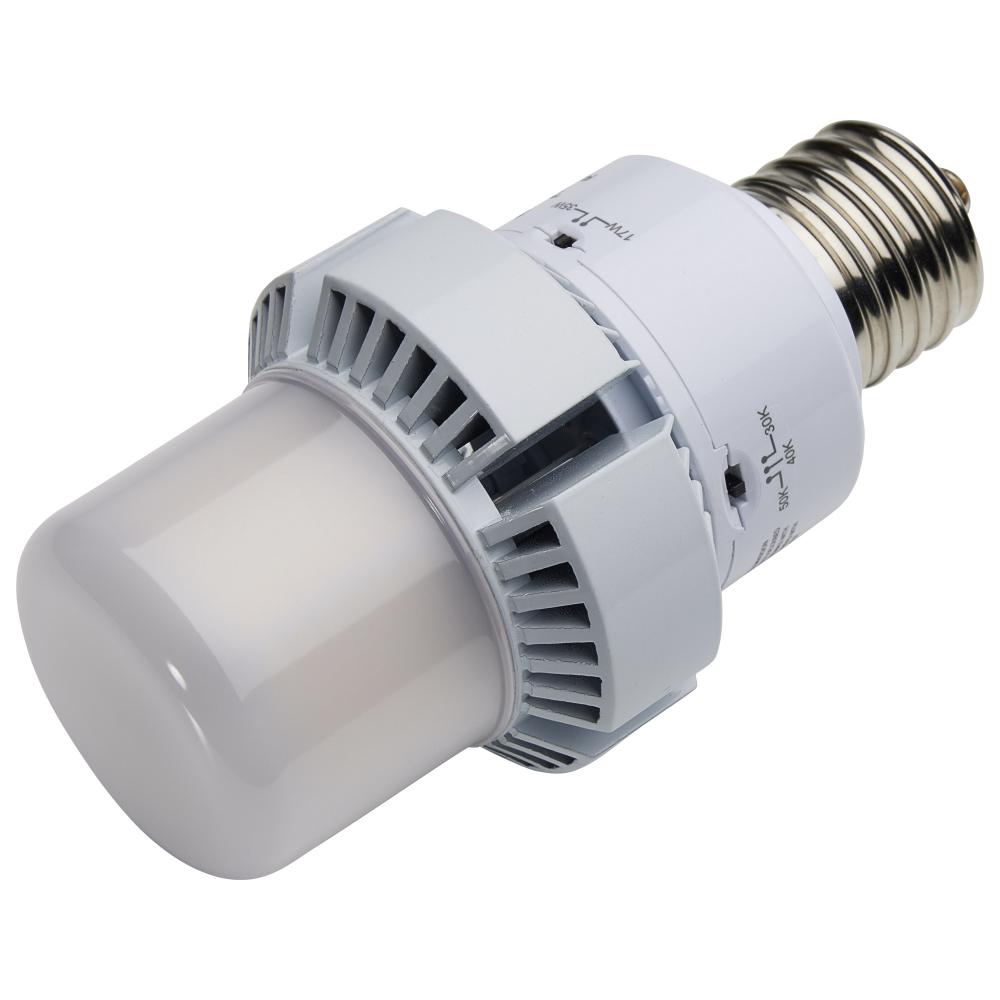

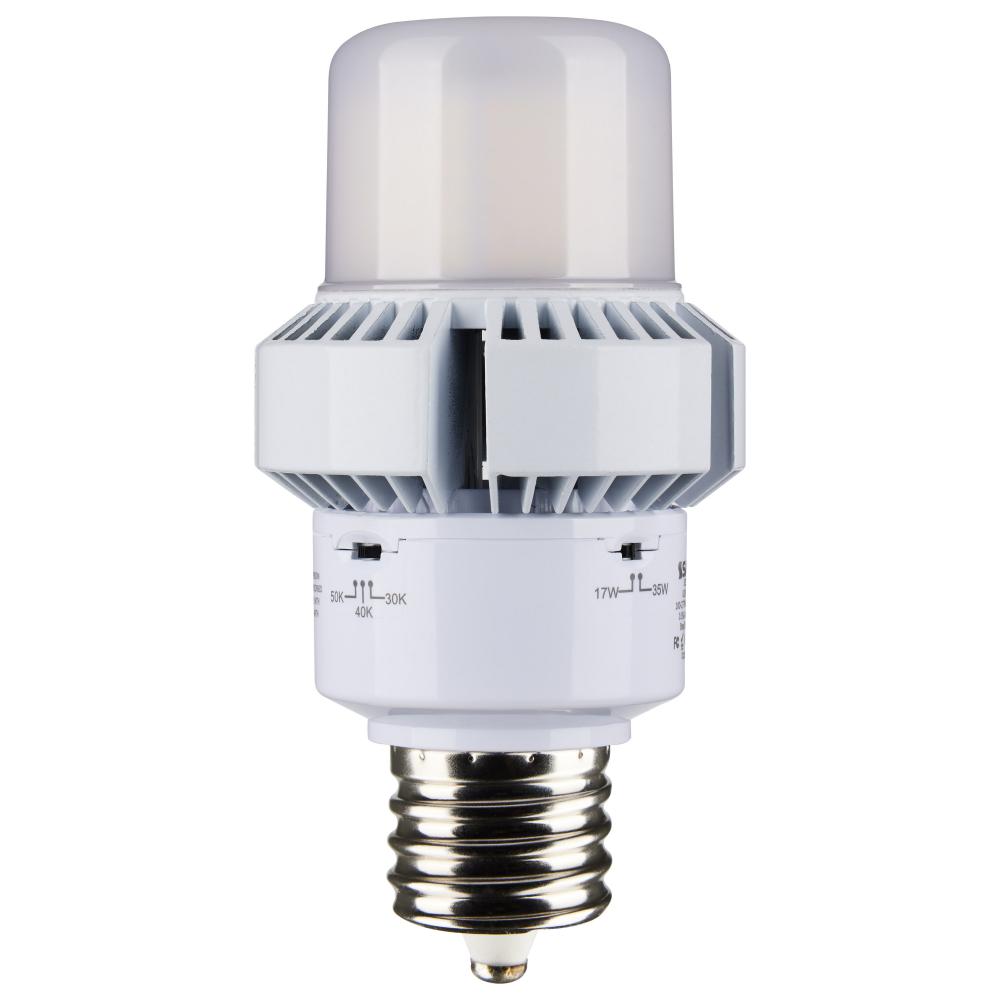

35 Watt; A-Plus 28; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast

Part Number: LNK9G / Vendor ID #: 27

35 Watt; A-Plus 28; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast

$52.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1496 items available.

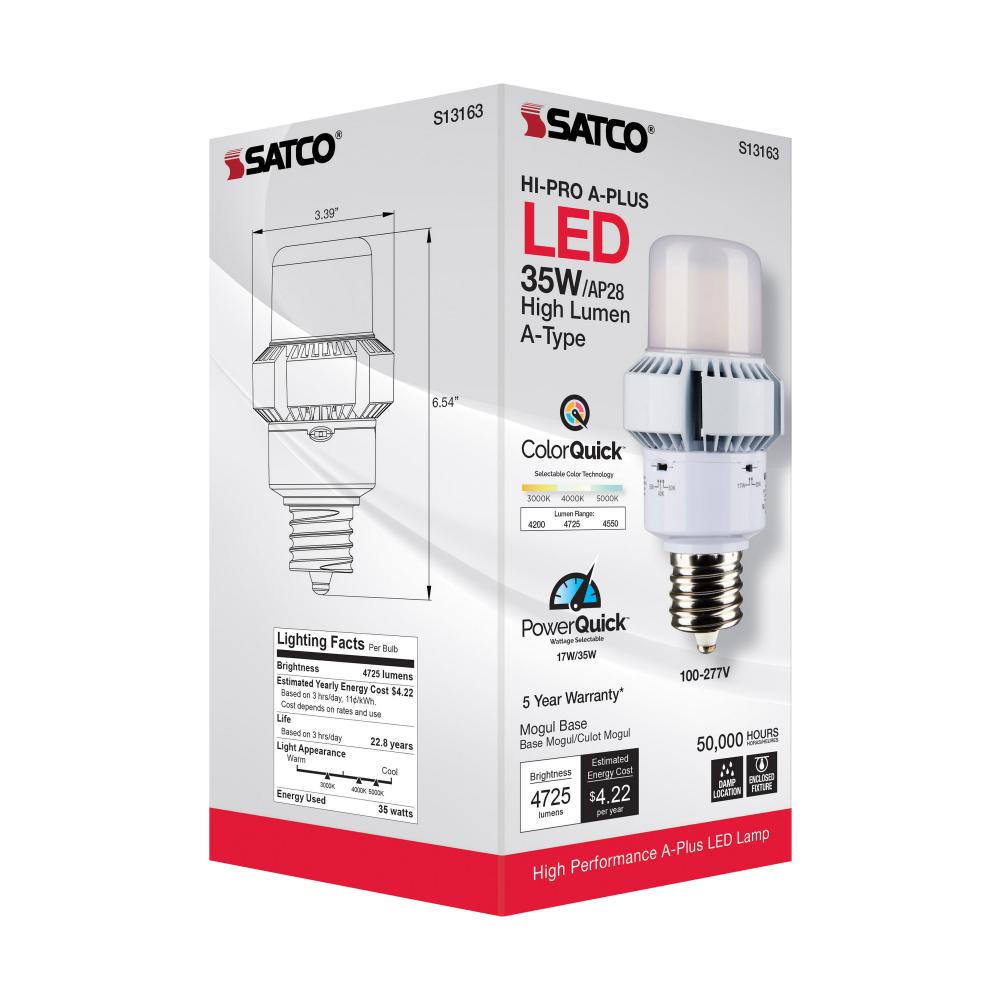

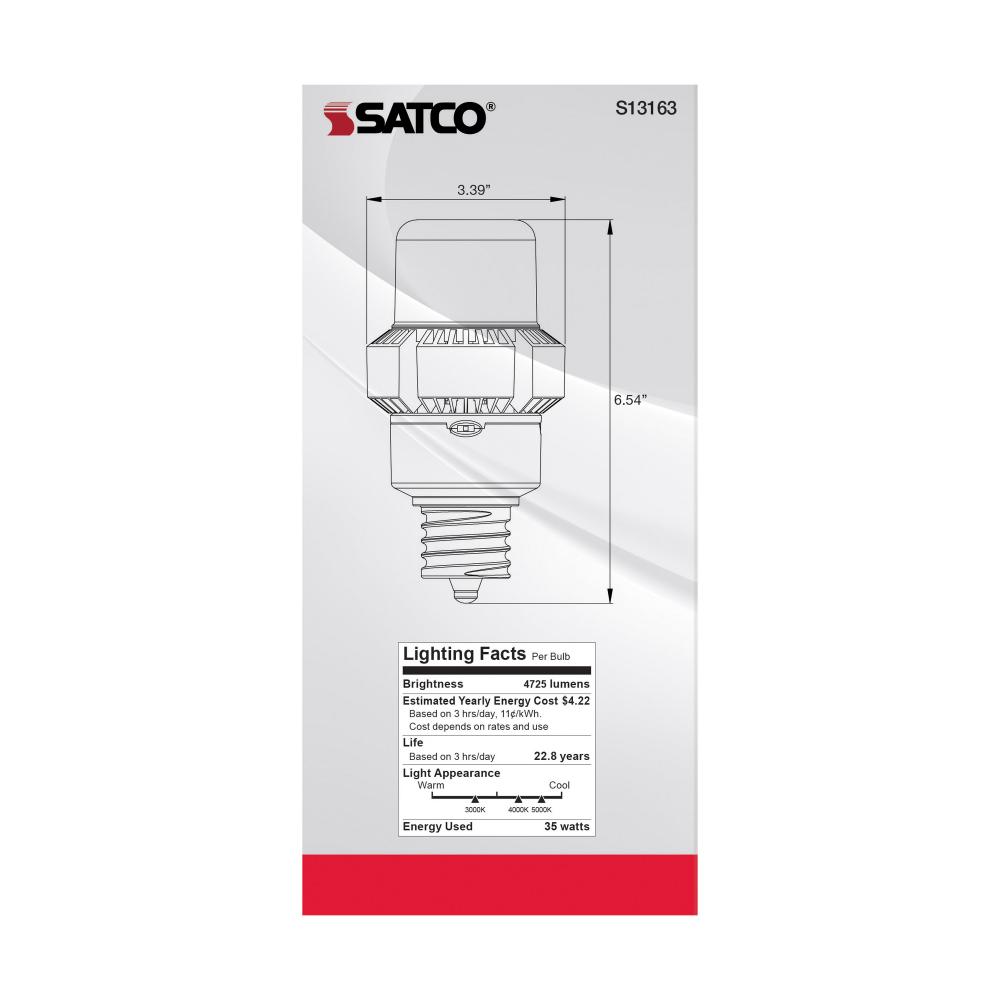

Dimensions

Width: 3.39"

Product Overview

35 Watt; A-Plus 28; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast Bypass; ColorQuick Technology; PowerQuick Technology

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Lumens:

3300+

Kelvin:

3001-3500

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

100V-277V

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/5000K

Bulb Shape:

AP28

Diameter:

3.39

EA Length:

3.54

Harmonized Codes:

8539.52.0010

Length:

6.54

Lumens:

4550L/2380L

Shap Carton Width:

3.54

Ship Carton Height:

7.48

Ship Weight:

1.18

Warranty:

5 Year Limited - Hi-Pro

Weight:

0.9399999999999999

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

280

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0542

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm to Cool White

Country Of Origin:

China

CRI:

Dimming Type:

Step Dimming

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-B1AY6N

DLC Primary Use:

Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)

Efficacy:

130.00/140.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

Advanced heat sink design ensures long lifespan, less maintenance

Feature 2:

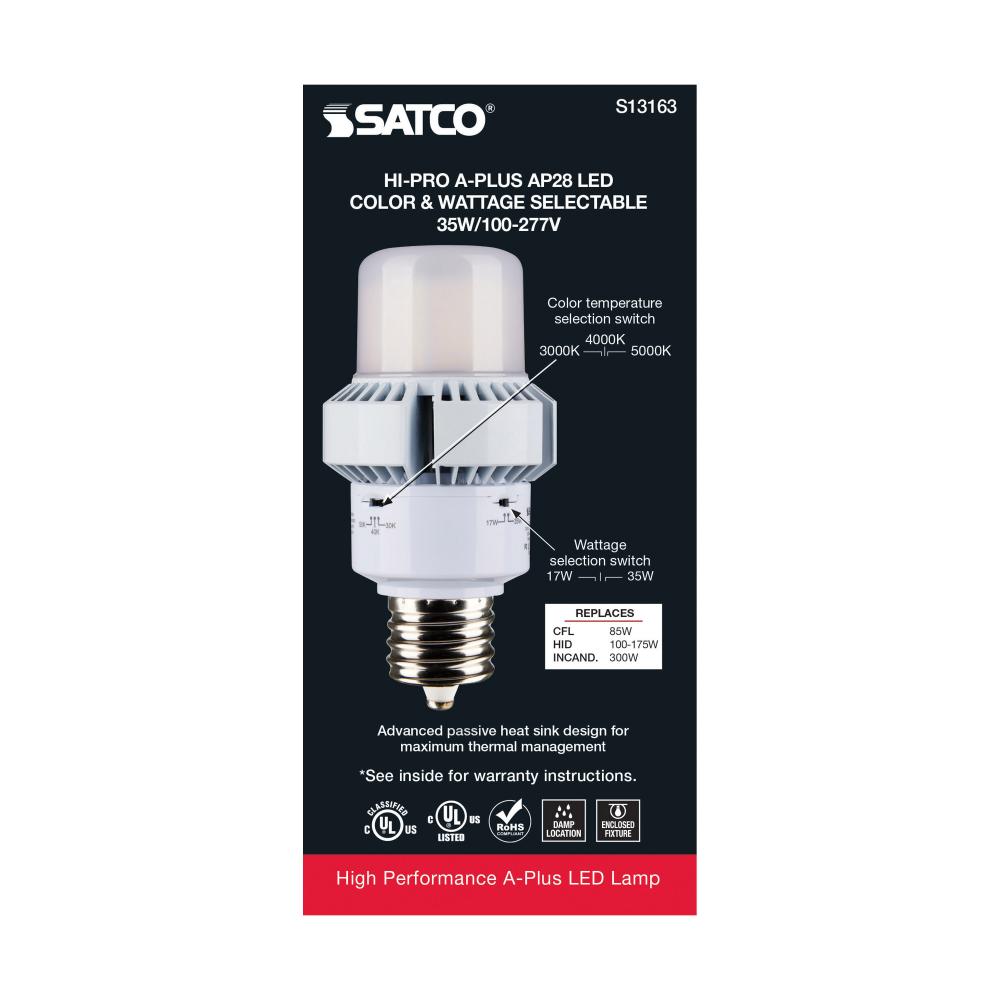

ColorQuick CCT selectable technology and PowerQuick Wattage selectable technology available with selection switch

Feature 3:

Damp location rated for indoor or outdoor use

Feature 4:

Rated for totally enclosed fixtures

Feature 5:

Reduced jacket size and built-in surge protection

Feature 6:

FCC/RoHS compliant

Feature 7:

Dimmable; 80 CRI light quality

Flourescent Equivalent:

85W

Has Driver:

Has Emergency Battery:

HID Equivalent:

100W-175W

Housing Color:

White

Incandescent Equivalent:

300W

Indoor Outdoor:

Indoor;Outdoor

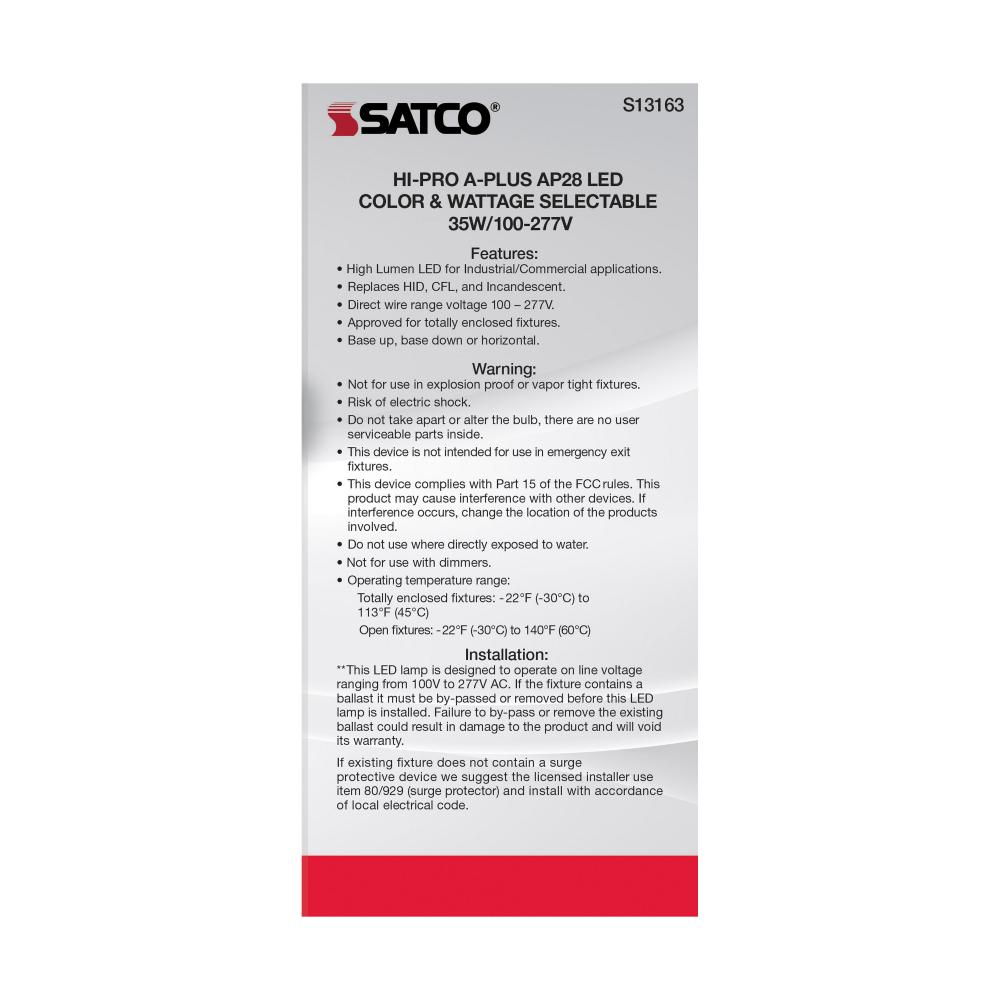

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

IP Rating:

IP64

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens Finish:

Frost

Lens Material:

Polycarbonate (PC)

Location Rating:

Damp

Long Description:

S13163, SATCO|NUVO's 35-watt EX39 base A-Plus 28 lamp, is one of the newest additions to the Hi-Pro LED family, providing up to 85% energy savings and advanced features. ColorQuick CCT and PowerQuick wattage selectable technologies mean more versatilit

Material:

Aluminum

Minimum Compartment Size:

Length: 6 in. Width: 6 in. Height: 8.5 in.

Operating Frequency:

50/60Hz

Operating Temp:

-22C (-30F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce hi

SDS class:

LED_Lamp

Short Description:

35W/AP28/LED/CCT/100-277V/EX39

Specification Notes:

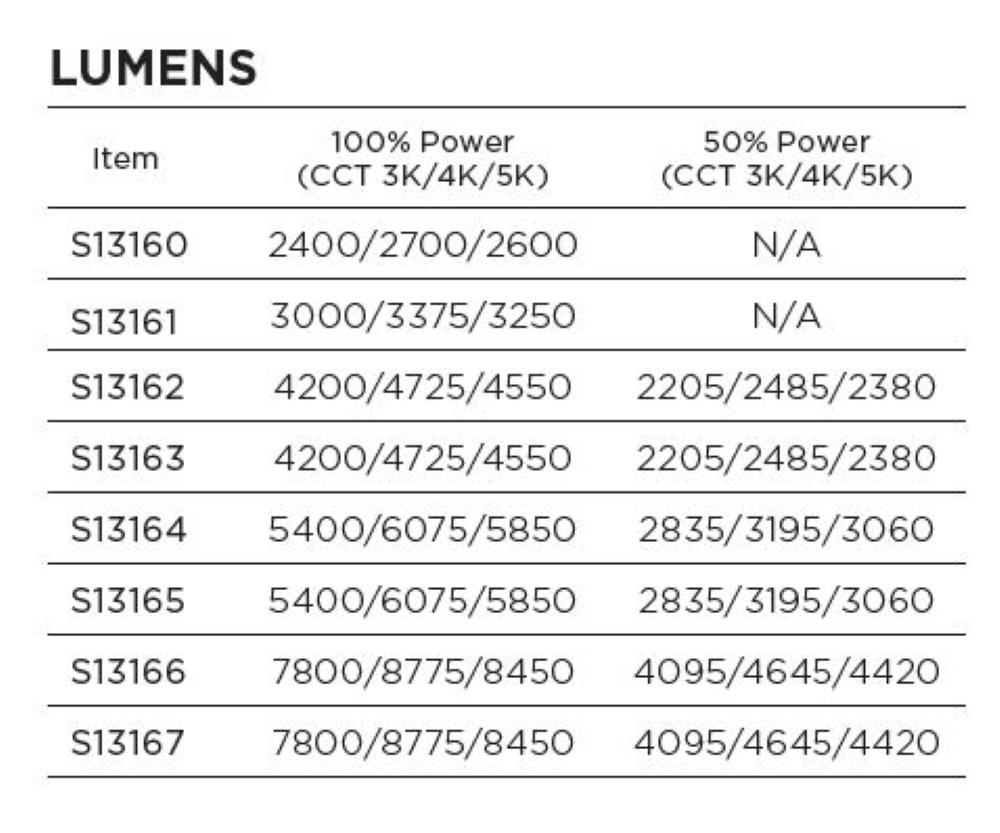

Lumen/Watt/CCT Ratio Chart in Documents.

Style:

Contemporary

Surge Protection:

Built-in surge protection - 2.5KV

Technology:

LED

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

15%

Wattage Selectable:

Yes

Watts:

35W/17W
