Product Overview

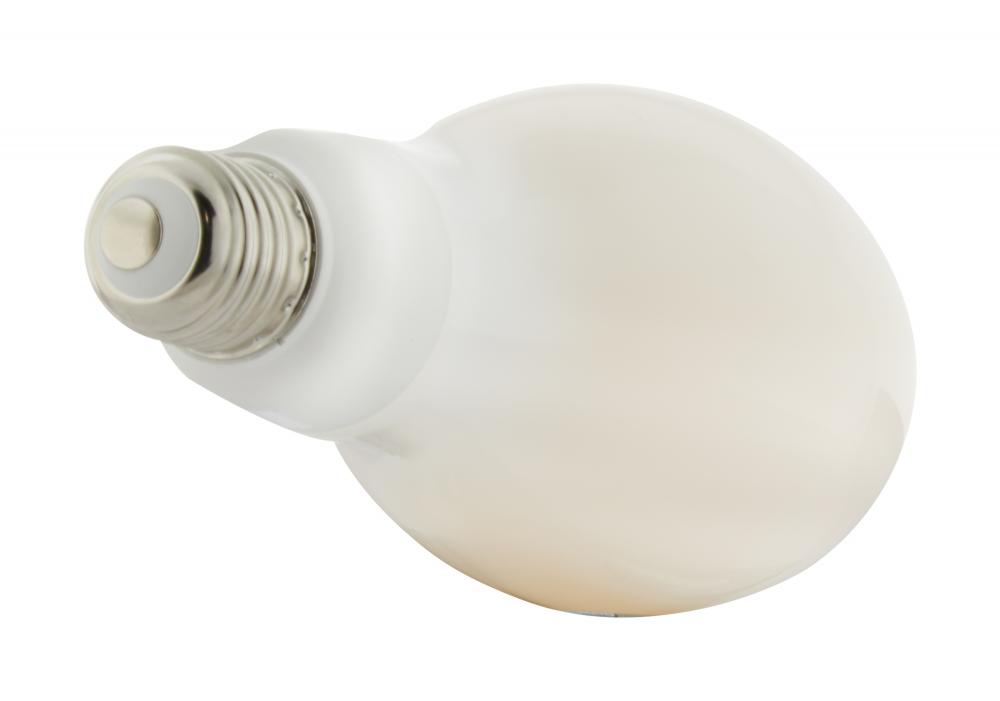

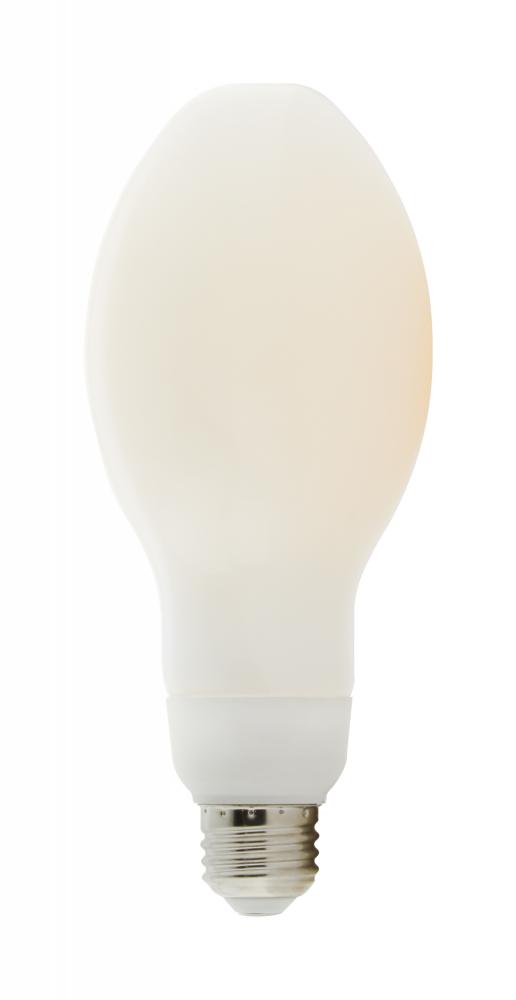

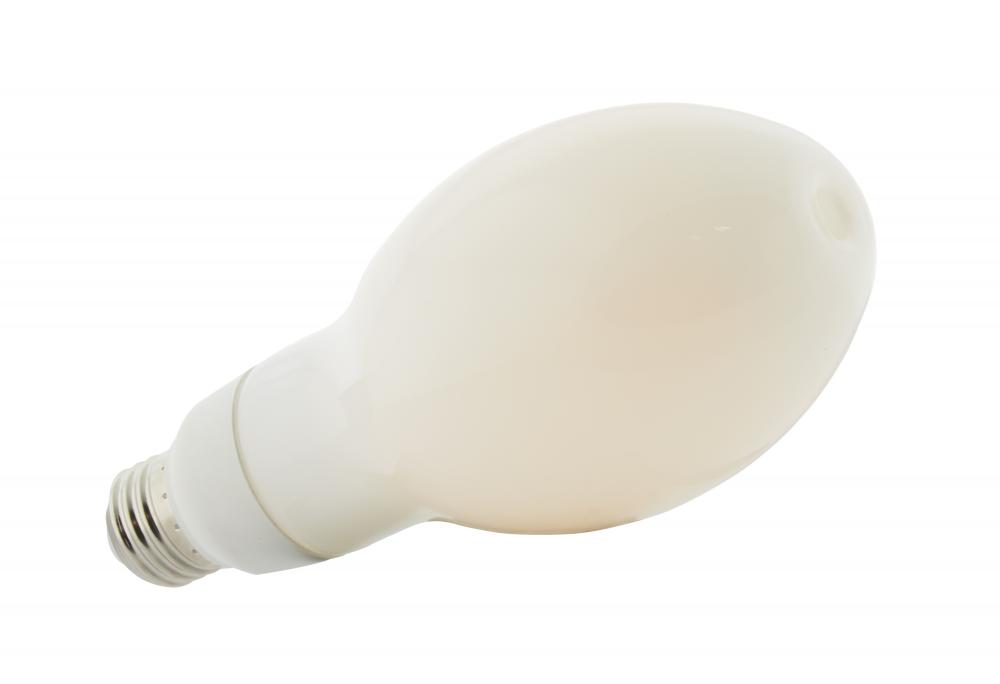

30 Watt LED HID Replacement; ED23; 5000K; Medium base; 120-277 Volt; Type B Ballast Bypass

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

3300+

Kelvin:

4501-5000

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

25000

Bulb Kelvin:

5000K

Bulb Shape:

ED23

Diameter:

2.95

EA Length:

3.35

Harmonized Codes:

8539.52.0091

Length:

7.68

Lumens:

4000L

Shap Carton Width:

3.35

Ship Carton Height:

8.27

Ship Weight:

0.49

Warranty:

3 Year Limited - 12 hr per day

Weight:

0.31

Additional Info:

HI-PRO Filament 120-277V

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

360

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0537

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - >2600 Lumens

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

China

CRI:

80

DLC Approved:

No

Efficacy:

133.33 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Both

FCC Compliant:

Yes

Feature 1:

Natural light

Feature 2:

HID Replacement

Feature 3:

Wet rated for indoor and outdoor use

Feature 4:

L:7.68 D:2.95

Feature 5:

ED23 with a White Finish

Flourescent Equivalent:

65W

Has Driver:

Yes

Has Emergency Battery:

No

HID Equivalent:

125W

Housing Color:

White

Incandescent Equivalent:

200W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

IP Rating:

IP65

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens Finish:

White

Lens Material:

Glass

Location Rating:

Wet

Long Description:

Satco's S13133 30-watt LED HID is a light weight, easy to install replacement lamp for commercial applications. This energy efficient bulb offers a 360 degree beam spread and a traditional shape and style. Great for both indoor and outdoor use, this la

Material:

Glass / Metal / Plastic

Operating Frequency:

60Hz

Operating Temp:

-30C (-22F) to +65C (+149F)

Order In Multiples Of:

1

Pack Type:

Color Box

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

Satco's 30-watt LED HID is a light weight, easy to install replacement lamp for commercial applications. This energy efficient bulb offers a 360 degree beam spread and a traditional shape and style. Great for both indoor and outdoor use, this lamp deli

SDS class:

LED_Lamp

Short Description:

30W/LED/HID/ED23/850/E26

Style:

Utility

Technology:

LED

Title 20 Compliant:

No

Wattage Selectable:

No

Watts:

30W
