Product Overview

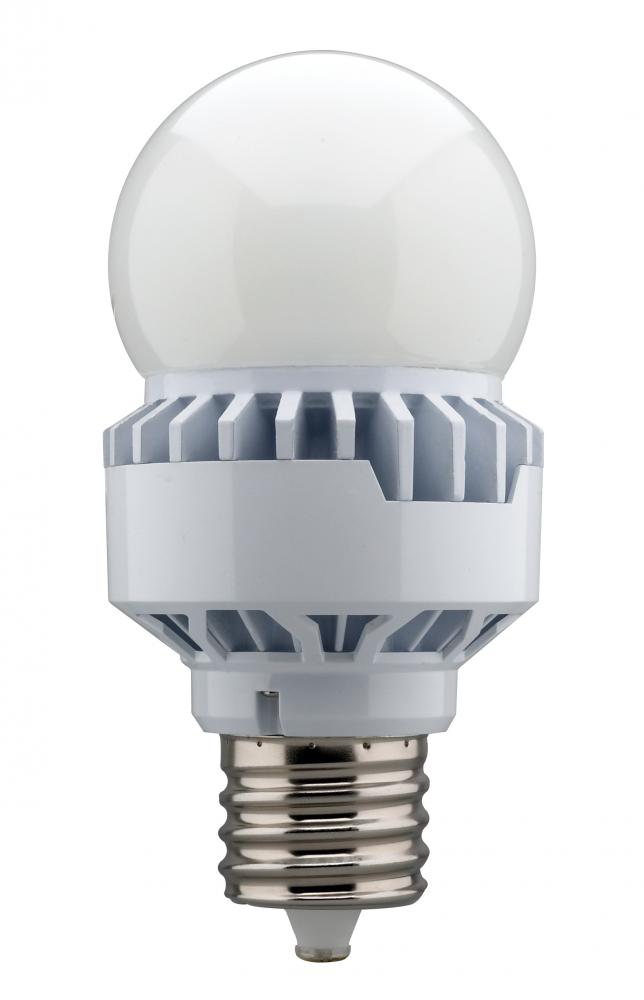

25 Watt LED A23 Hi-Pro HID Replacement; 6500K; Mogul extended base; 120-277 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

3300+

Kelvin:

6001-6500

Wattage:

25w

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

100V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

6500K

Bulb Shape:

A23

Diameter:

3.22

EA Length:

3.5

Harmonized Codes:

8539.52.0010

Length:

6.66

Lumens:

3525L

Shap Carton Width:

3.5

Ship Carton Height:

7.48

Ship Weight:

1

Warranty:

5 Year Limited - Hi-Pro

Weight:

1.1

BAA Compliant:

No

Beam Spread:

280

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.053

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Daylight

Country Of Origin:

China

CRI:

80

DLC Approved:

No

Efficacy:

141.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

MOL: 6.66 inches, MOD: 3.22 inches

Feature 2:

Superior 80 CRI light quality, 3525 lumens, 6500K daylight, with a 280 degree beam spread

Feature 3:

Rated for enclosed fixtures

Feature 4:

Damp location rated

Feature 5:

25 watt LED replaces 200W incandescent

Feature 6:

Frost finished bulb with white plastic housing

Feature 7:

LED energy efficient fixture

Feature 8:

5 Year Limited Warranty

HID Equivalent:

100W

Housing Color:

White

Incandescent Equivalent:

200W

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

No

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Frost

Lens Material:

Plastic (PS)

Location Rating:

Damp

Long Description:

Satco's S13107 25 watt A23 Hi-Pro 3525 lumen LED HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 6500 kelvins, this lamp provid

Material:

Plastic

Minimum Compartment Size:

Diameter: 6 in. Height: 8.5 in.

Operating Frequency:

50/60Hz

Operating Temp:

-25C (-13F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

R9 Value:

18

RoHS Compliant:

Yes

Romance Copy:

Satco's 25 watt A23 Hi-Pro 3525 lumen LED HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 6500 kelvins, this lamp provides 50,0

SDS class:

LED_Lamp

Short Description:

25WA23/LED/65K/100-277V/EX39

Style:

Contemporary

Technology:

LED

Title 20 Compliant:

No

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

25W
