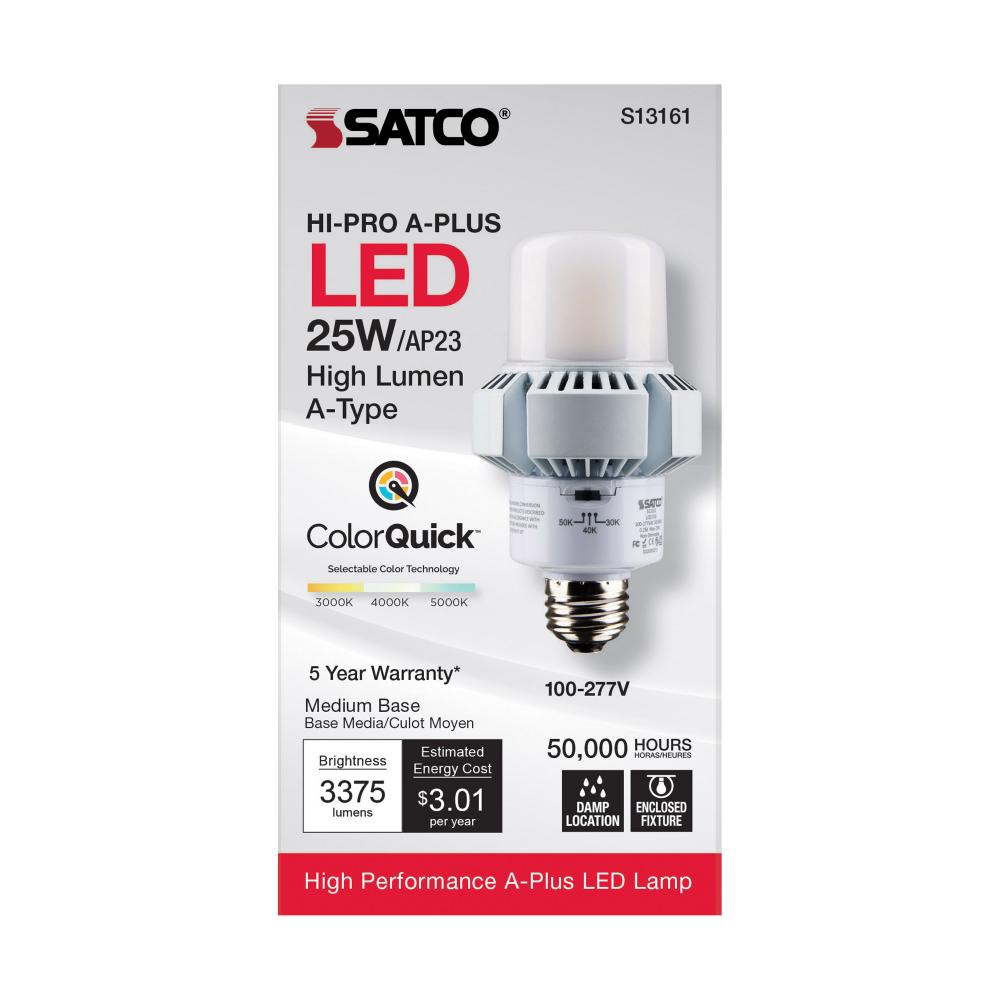

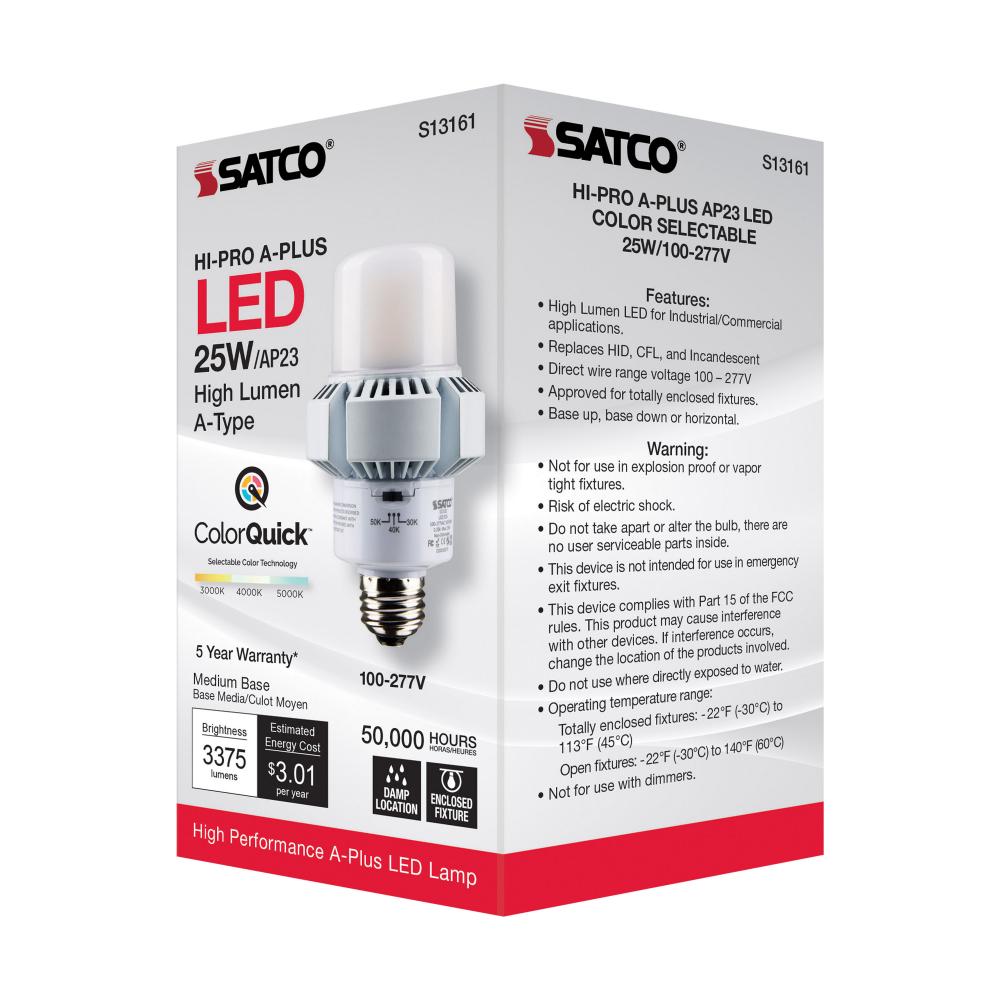

25 Watt; A-Plus 23; LED; CCT Selectable 3K/4K/5K; Medium base; Type B; Ballast Bypass; 100-277 Volt;

Part Number: LNK9E / Vendor ID #: 27

25 Watt; A-Plus 23; LED; CCT Selectable 3K/4K/5K; Medium base; Type B; Ballast Bypass; 100-277 Volt;

$40.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 2610 items available.

Dimensions

Width: 2.83"

Product Overview

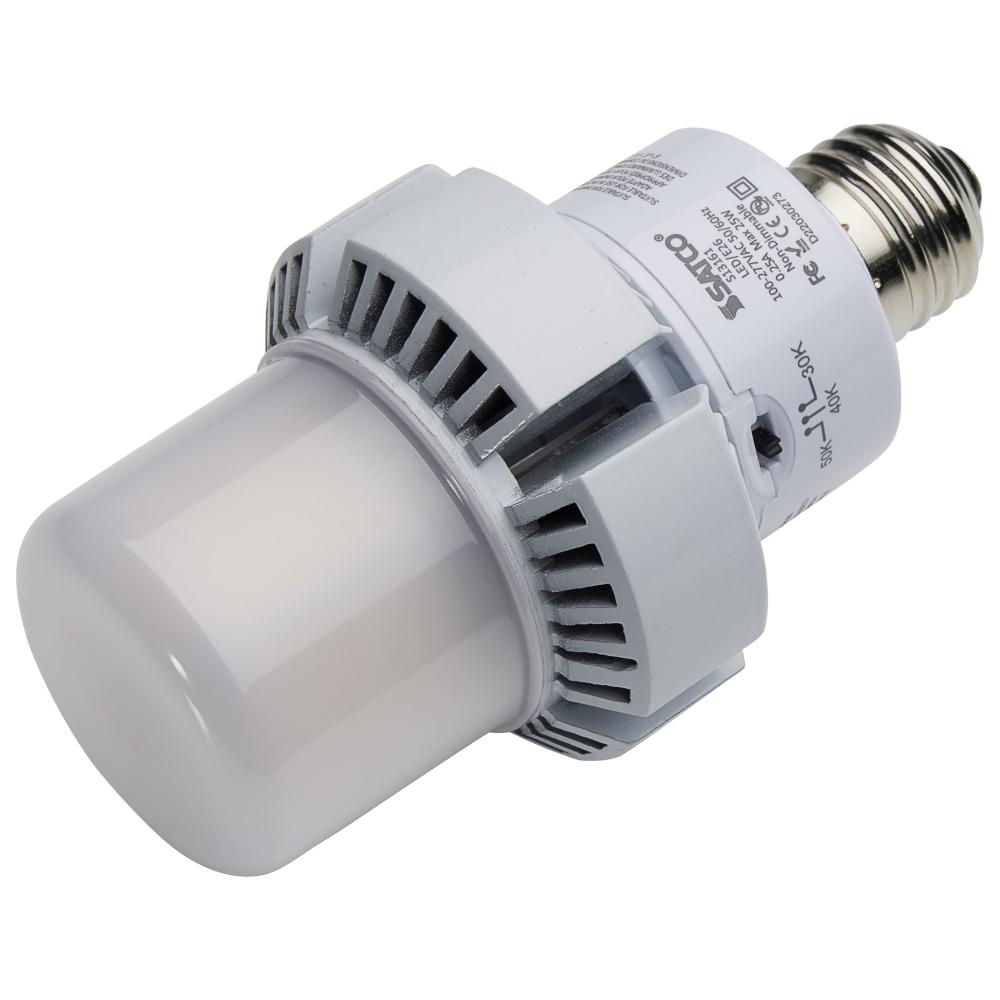

25 Watt; A-Plus 23; LED; CCT Selectable 3K/4K/5K; Medium base; Type B; Ballast Bypass; 100-277 Volt; ColorQuick Technology

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Lumens:

3300+

Kelvin:

3001-3500

Wattage:

25w

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

100V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/5000K

Bulb Shape:

AP23

Diameter:

2.83

EA Length:

2.99

Harmonized Codes:

8539.52.0010

Length:

5.12

Lumens:

3000L/3375L/3250L

Shap Carton Width:

2.99

Ship Carton Height:

5.7

Ship Weight:

0.63

Warranty:

5 Year Limited - Hi-Pro

Weight:

0.49

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

280

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0295

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - >2600 Lumens

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm to Cool White

Country Of Origin:

China

CRI:

DLC Approved:

Efficacy:

120.00/135.00/130.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

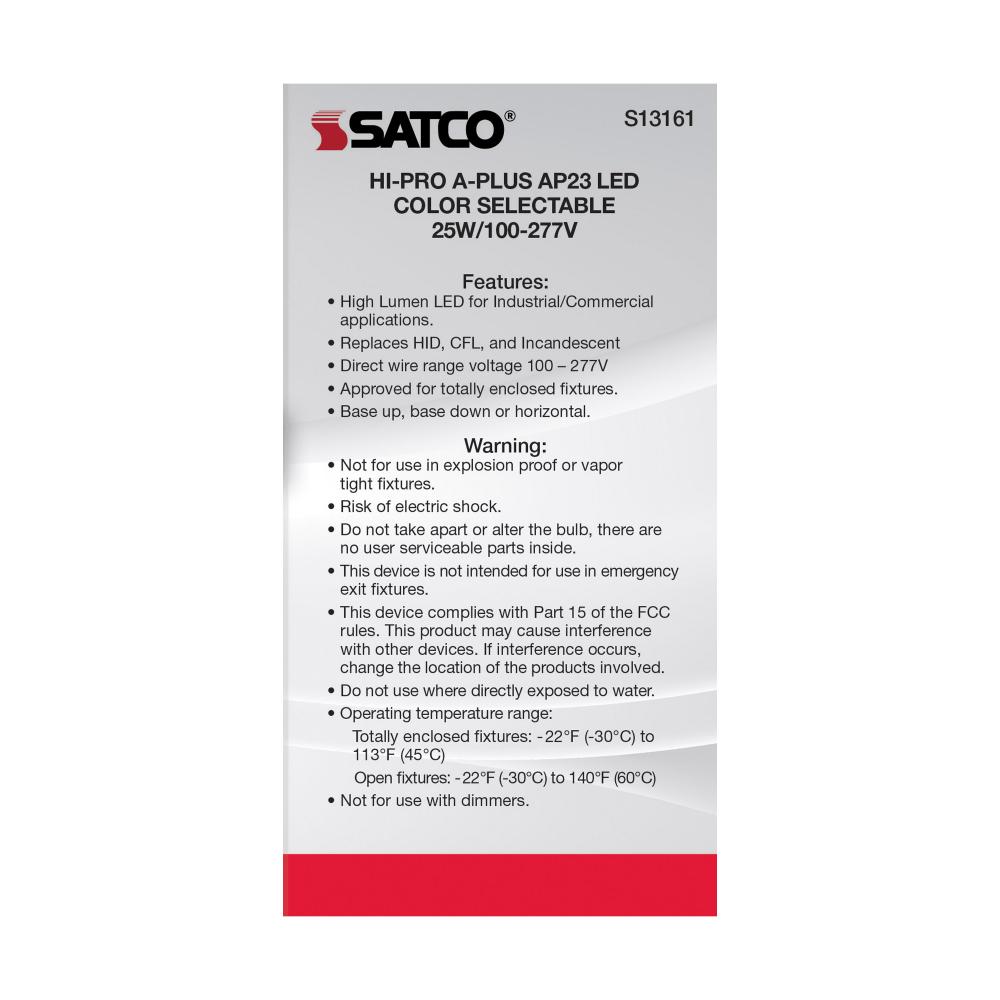

Feature 1:

Advanced heat sink design ensures long lifespan, less maintenance

Feature 2:

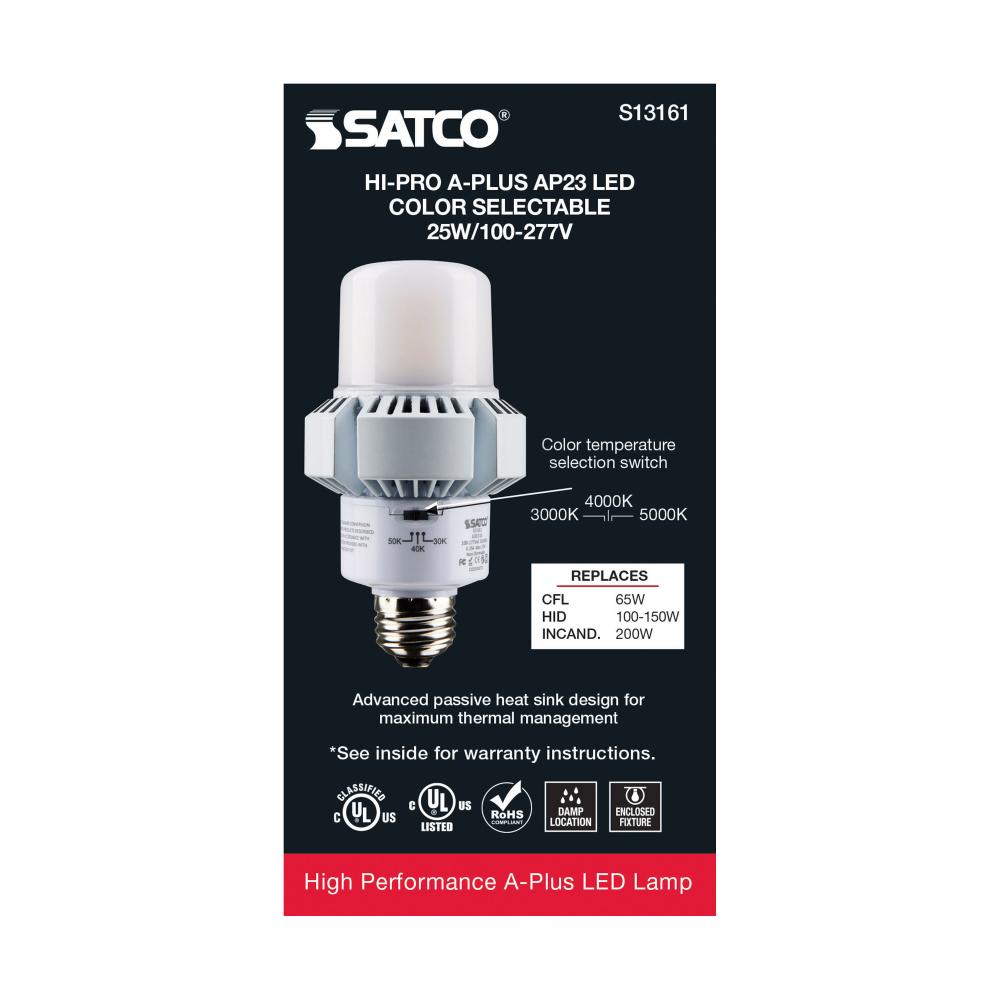

ColorQuick technology - Integrated switch allows for 3000K, 4000K and 5000K CCT Selections

Feature 3:

Damp location rated for indoor or outdoor use

Feature 4:

Rated for totally enclosed fixtures

Feature 5:

Reduced jacket size and built-in surge protection

Feature 6:

FCC/RoHS compliant

Feature 7:

Superior 80 CRI light quality

Flourescent Equivalent:

65W

Has Driver:

Has Emergency Battery:

HID Equivalent:

100W-150W

Housing Color:

White

Incandescent Equivalent:

200W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

IP Rating:

IP64

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens Finish:

Frost

Lens Material:

Polycarbonate (PC)

Location Rating:

Damp

Long Description:

S13161, Satco's 25-watt medium base A-Plus 23 lamp, is one of the newest additions to the Hi-Pro LED family, providing up to 85% energy savings and advanced features. ColorQuick CCT selectable technology means more versatility and custom-tailored light

Material:

Aluminum

Minimum Compartment Size:

Length: 6 in. Width: 6 in. Height: 8.5 in.

Operating Frequency:

50/60Hz

Operating Temp:

-22C (-30F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

Satco's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce high-ou

SDS class:

LED_Lamp

Short Description:

25W/AP23/LED/CCT/100-277V/E26

Specification Notes:

Lumen/Watt/CCT Ratio Chart in Documents.

Style:

Contemporary

Surge Protection:

Built-in surge protection - 1KV

Technology:

LED

Title 20 Compliant:

Wattage Selectable:

Watts:

25W
