Product Overview

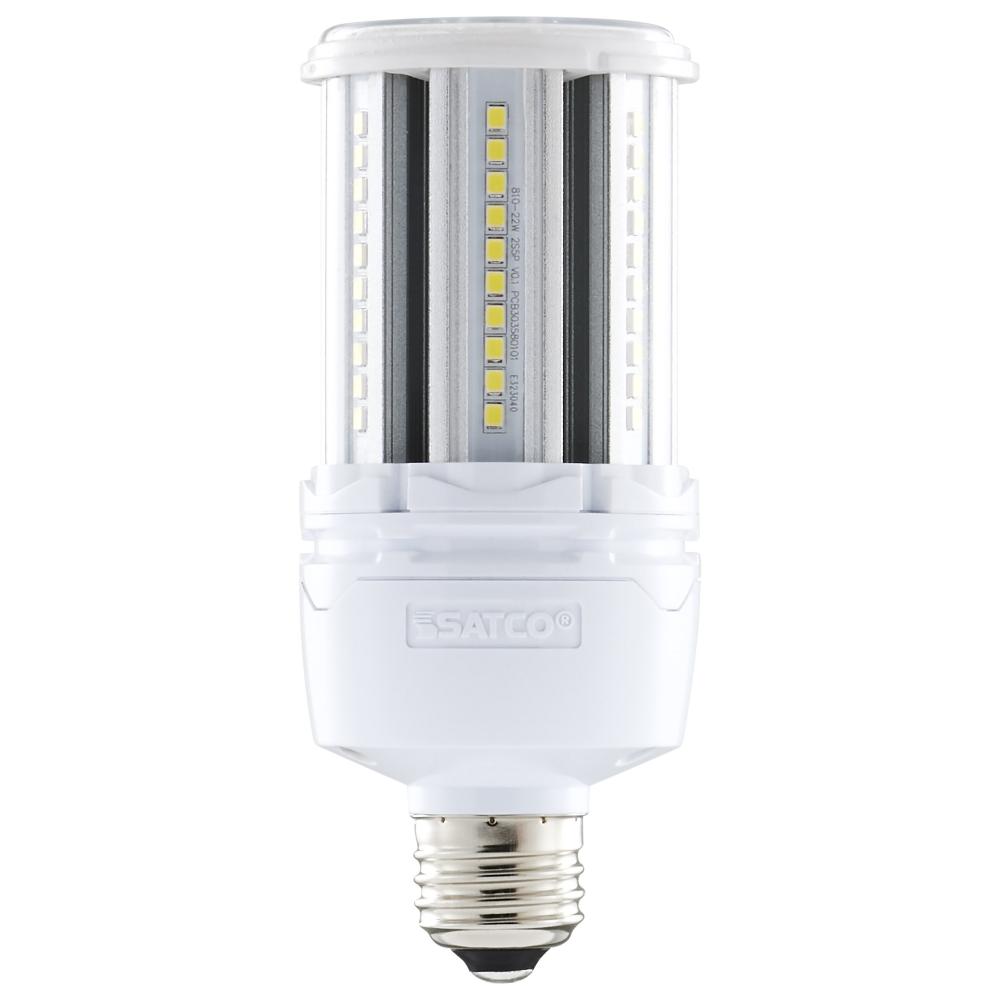

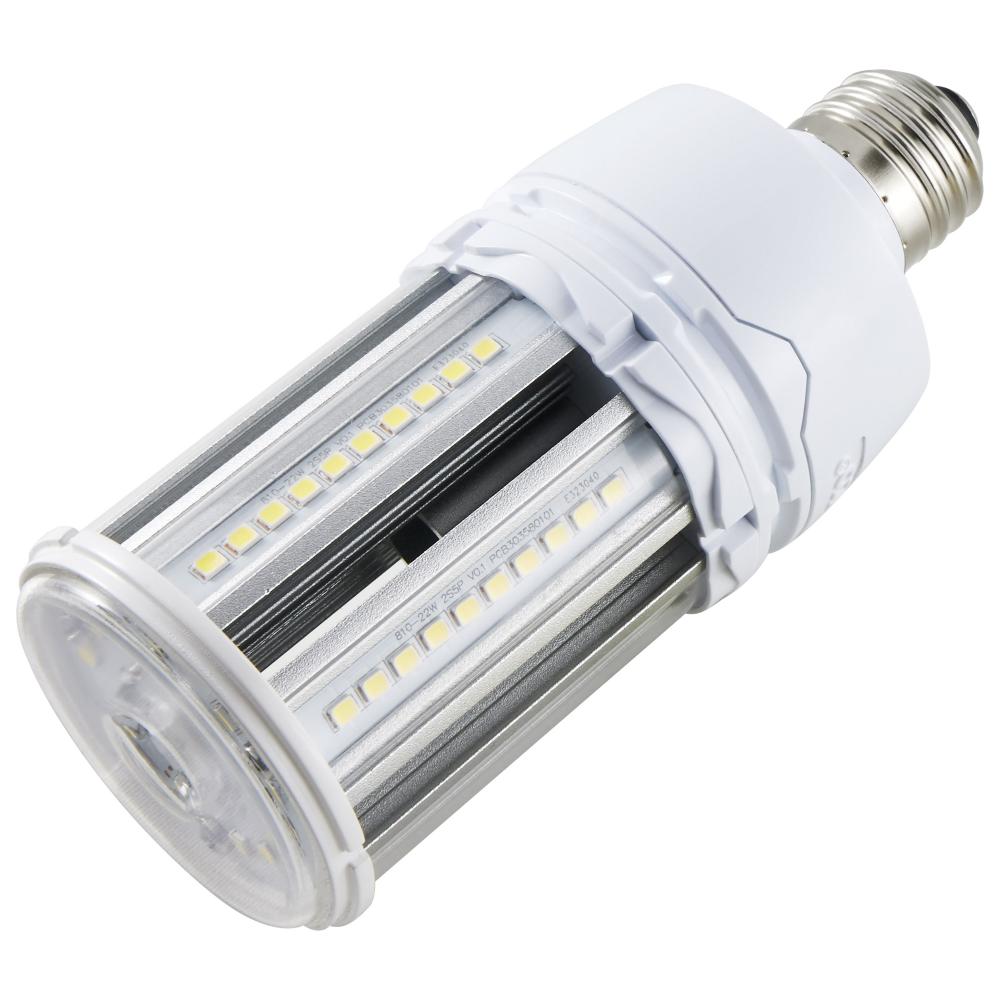

22 Watt LED HID Replacement; 80 CRI; 2700K; Type B; Ballast Bypass; Medium base; Economy Hi-Pro

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Style:

Traditional

Lumens:

2601-3000

Kelvin:

2501-3000

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

100V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

35000

Bulb Kelvin:

2700K

Bulb Shape:

Corncob

Diameter:

2.39

EA Length:

2.87

Harmonized Codes:

8539.52.0091

Length:

5.71

Lumens:

2860L

Shap Carton Width:

2.87

Ship Carton Height:

7.28

Ship Weight:

0.85

Warranty:

3 Year Limited - Hi-Pro

Weight:

0.77

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

300

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0347

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - >2600 Lumens

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80

DLC Approved:

No

Efficacy:

130.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

High lumen per watt ratio

Feature 2:

Superior LED light output

Feature 3:

Rated for use in enclosed fixtures

Feature 4:

Advanced Thermal Management

Feature 5:

Suitable for use in damp locations

Feature 6:

Up to 35000 Hours of use

Feature 7:

2kV built-in surge protection

HID Equivalent:

100W

Housing Color:

White

Incandescent Equivalent:

100W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Location Rating:

Damp

Long Description:

Satco's S49671 22-watt Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Perfect for gymnasiums, factory floors, health clubs, and warehouses, this lamp is designed to deliver clean, efficient LED light. Th

Material:

Aluminum / Polycarbonate (PC)

Minimum Compartment Size:

Length: 6 in. Width: 6 in. Height: 8.5 in.

Operating Frequency:

50/60Hz

Operating Temp:

-30C (-22F) to +60C (+140F)

Pack Type:

Box

Photocell:

No

Power Factor:

>0.9

Quantity In Pack:

1

R9 Value:

8

RoHS Compliant:

Yes

Romance Copy:

Satco's 22-watt Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Perfect for gymnasiums, factory floors, health clubs, and warehouses, this lamp is designed to deliver clean, efficient LED light. This vers

SDS class:

LED_Lamp

Short Description:

22W/LED/HP/827/100-277V/E26

Style:

Contemporary

Surge Protection:

Built-in surge protection - 2KV

Technology:

LED

Title 20 Compliant:

No

Wattage Selectable:

No

Watts:

22W
