Product Overview

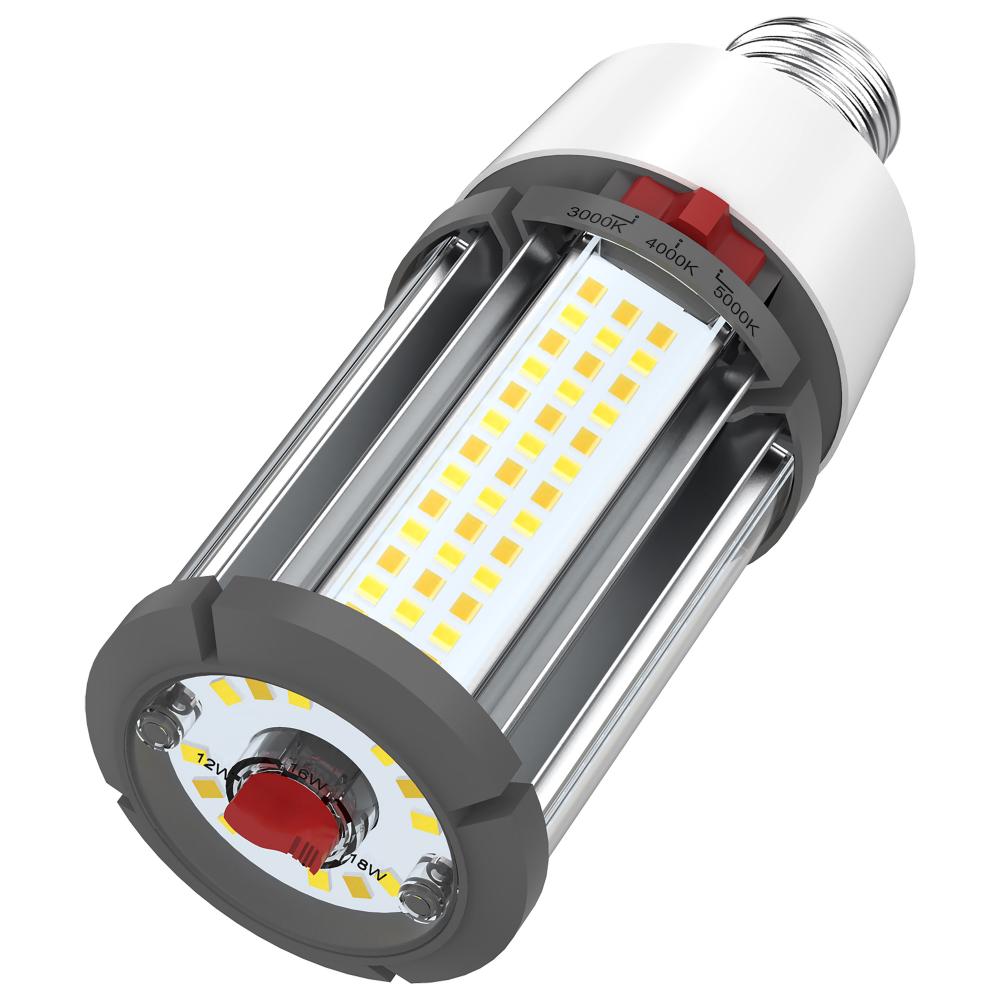

18/16/12 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Style:

Traditional

Lumens:

1601-2600

Kelvin:

3001-3500

Wattage:

12w

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/5000K

Bulb Shape:

Corncob

Diameter:

2.32

EA Length:

2.83

Harmonized Codes:

8539.52.0091

Length:

6.29

Lumens:

2520L/2240L/1680L

Shap Carton Width:

2.83

Ship Carton Height:

8.27

Ship Weight:

0.7

Warranty:

5 Year Limited - Hi-Pro

Weight:

0.55

Additional Info:

Power selectable

B.U. G. Rating:

B1-U4-G2

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

300

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0383

Cartons Per Unit:

1

CCT Selectable:

Yes

CEC:

Non-Compliant - < 82 CRI

CEC Terse:

Non-Compliant

CEC Web Text:

Non-Compliant

Color Temprature:

Warm to Cool White

Country Of Origin:

China

CRI:

80+

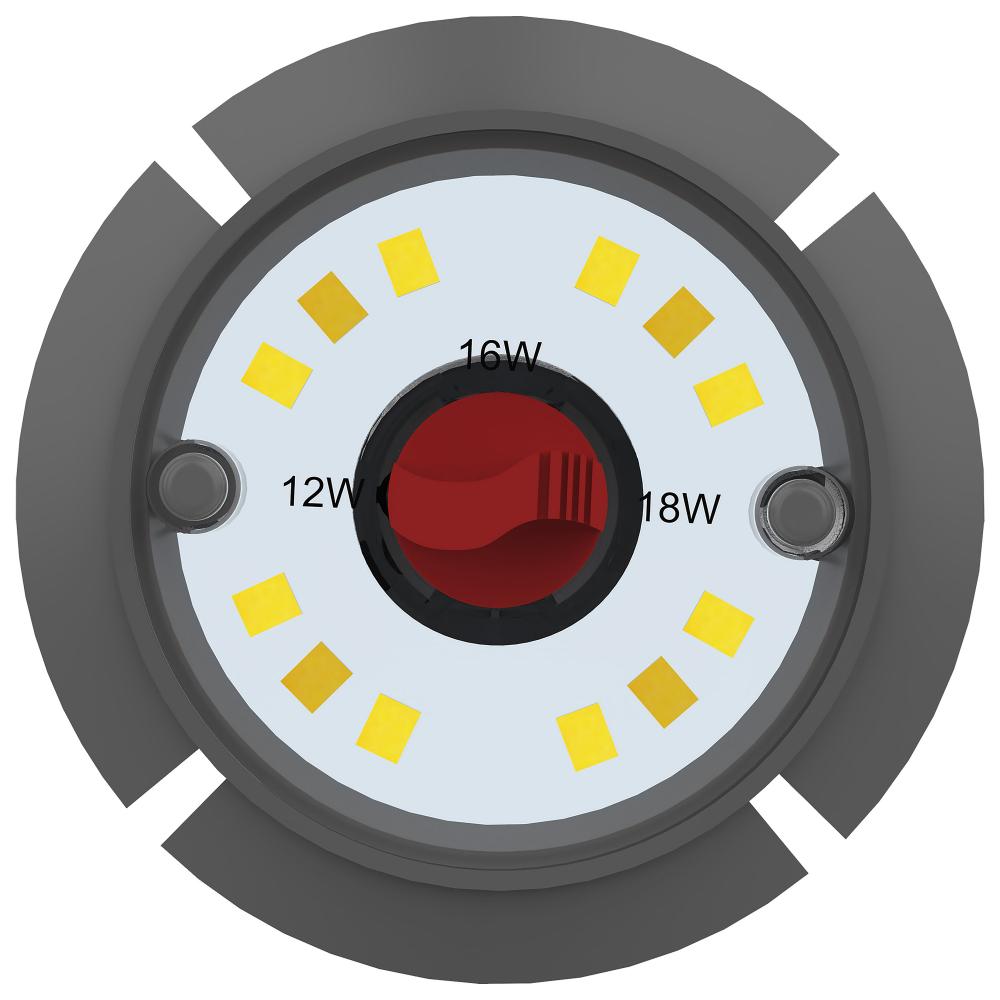

Dimmable Function:

Only dimmable through wattage selection switch on lamp

Dimming Type:

Step Dimming

DLC Approved:

No

Efficacy:

140.00/140.00/140.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Both

FCC Compliant:

Yes

Feature 1:

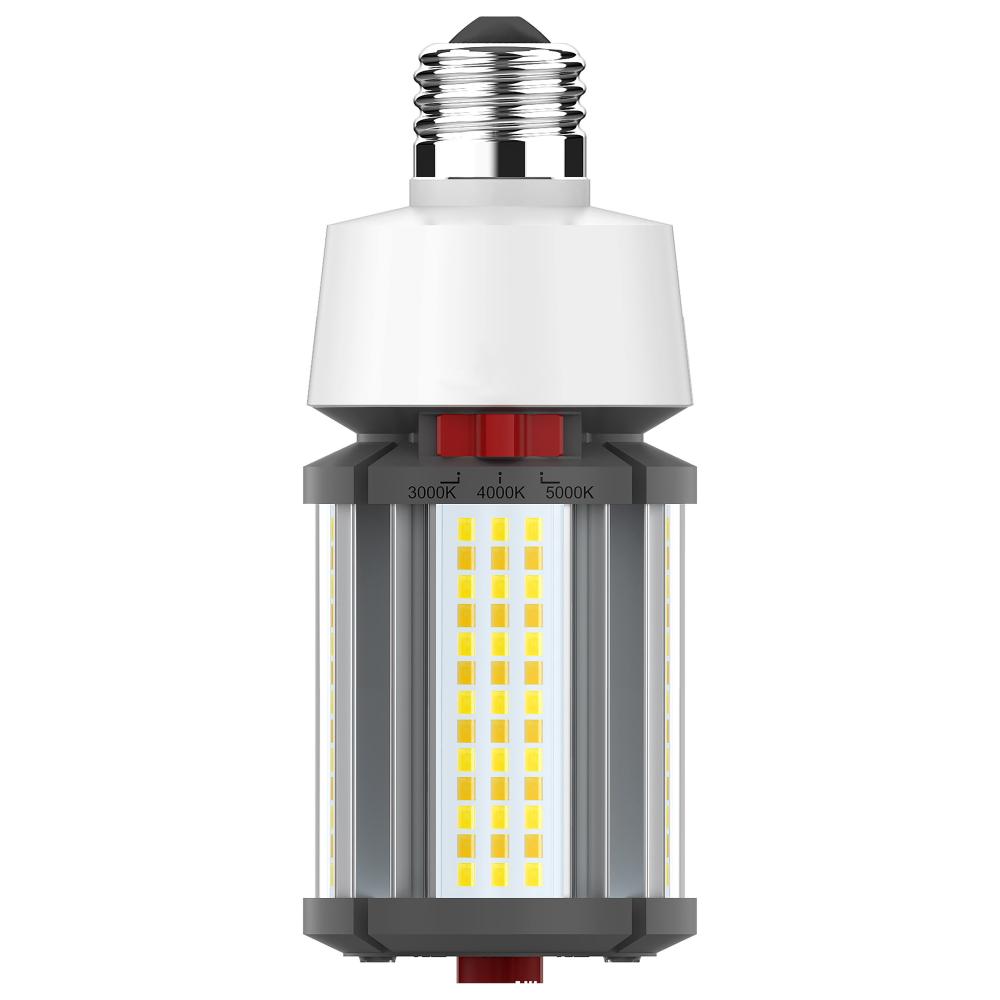

CCT Selectable-3000K, 4000K, 5000K

Feature 2:

Wattage Selectable

Feature 3:

Enclosed Fixture Rated

Feature 4:

Advanced Thermal Management

Feature 5:

Damp Location Rated

Feature 6:

4KV Built in Surge Protection

Feature 7:

Rated for 50,000 hours of use

HID Equivalent:

75W/50W/40W

Housing Color:

Dark Gray

Incandescent Equivalent:

90W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens Material:

Plastic

Location Rating:

Damp

Long Description:

The newest generation of our popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp means more ve

Material:

Plastic (PS)

NSF Approved:

No

Operating Frequency:

50-60Hz

Operating Temp:

-40C (-40F) to +60C (+140F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

R9 Value:

11

RoHS Compliant:

Yes

Romance Copy:

The newest generation of our popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp means more ve

SDS class:

LED_Lamp

Short Description:

18W/LED/CCT/100-277V/E26

Style:

Contemporary

Surge Protection:

Built-in surge protection - 4KV

Technology:

LED

Title 20 Compliant:

No

Title 24 Compliant:

No

Wattage Selectable:

Yes

Watts:

18W/16W/12W
