Product Overview

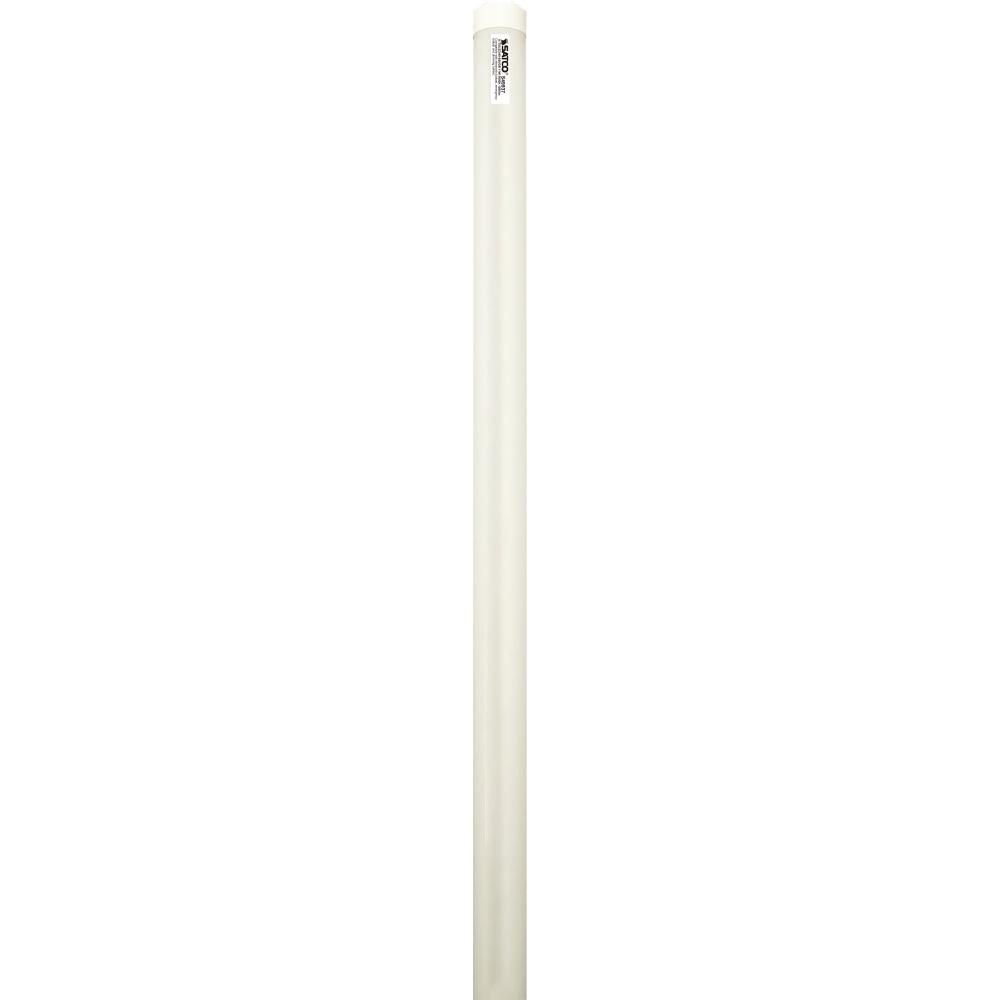

11 Watt; 4 Foot LED T8; Medium Bi Pin base; 5000K; 50000 Average rated hours; 1800 Lumens; Type A; Ballast dependent

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

1601-2600

Kelvin:

4501-5000

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

Ballast Dependent

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

T8

Diameter:

1.1

EA Length:

1.1

Harmonized Codes:

8539.52.0051

Length:

47.78

Lumens:

1800L

Shap Carton Width:

48

Ship Carton Height:

1.1

Ship Weight:

0.44

Warranty:

5 Year Limited - T8 LED Bulbs

Weight:

0.4

BAA Compliant:

No

Ballast Bypass Direct:

Direct

Ballasting Requirements:

Ballast required

Beam Spread:

210

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Gloss White

Burning Position:

Universal

Carton Cubic Feet:

0.0336

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

China

CRI:

82

Dimmable Down To:

100 to 20 percent

Dimmable Function:

Only in Type A mode; Check Ballast MFG for Dimmer Compatibility

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

PL17EDQ5LKW9

DLC Primary Use:

Replacement Lamps (Plug and Play) (UL Type A)

Efficacy:

163.64 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

No rewiring required

Feature 2:

All glass tubes - no aging, yellowing, or bending

Feature 3:

Integrated thermal fuse pins

Feature 4:

Damp location rated

Feature 5:

DLC 5.1 certified

Feature 6:

Operating temperature: -20C (-4F) to a maximum of 45C (113F)

Flourescent Equivalent:

32W/30W/28W/25W

Housing Color:

White

Incandescent Equivalent:

150W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

Lamp Ballast Type A/B/C:

Type A

Lamp Filament:

LED

Lens Finish:

Gloss White

Lens Material:

Glass

Location Rating:

Damp

Long Description:

SATCO|NUVO's S49937 11-watt, 48 inch, T8 LED bulb is an energy efficient lighting solution for a variety of applications. Retail spaces, hospitals, and educational venues can all realize the immediate benefits and savings LED lighting offers. Dimmable

Material:

Glass

Nominal Length:

48

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

25

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

6

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's 11-watt, 48 inch, T8 LED bulb is an energy efficient lighting solution for a variety of applications. Retail spaces, hospitals, and educational venues can all realize the immediate benefits and savings LED lighting offers. Dimmable and ver

SDS class:

LED_Lamp

Short Description:

11/T8/LED/48-850/DR

Style:

Utility

Technology:

LED

Title 20 Compliant:

No

Total Harmonic Distortion:

20%

Tube Guard Use:

Approved for use with tube guards when operated on Low or Normal ballast factor systems

Wattage Selectable:

No

Watts:

11W
